onsemiDatasheet (PDF)

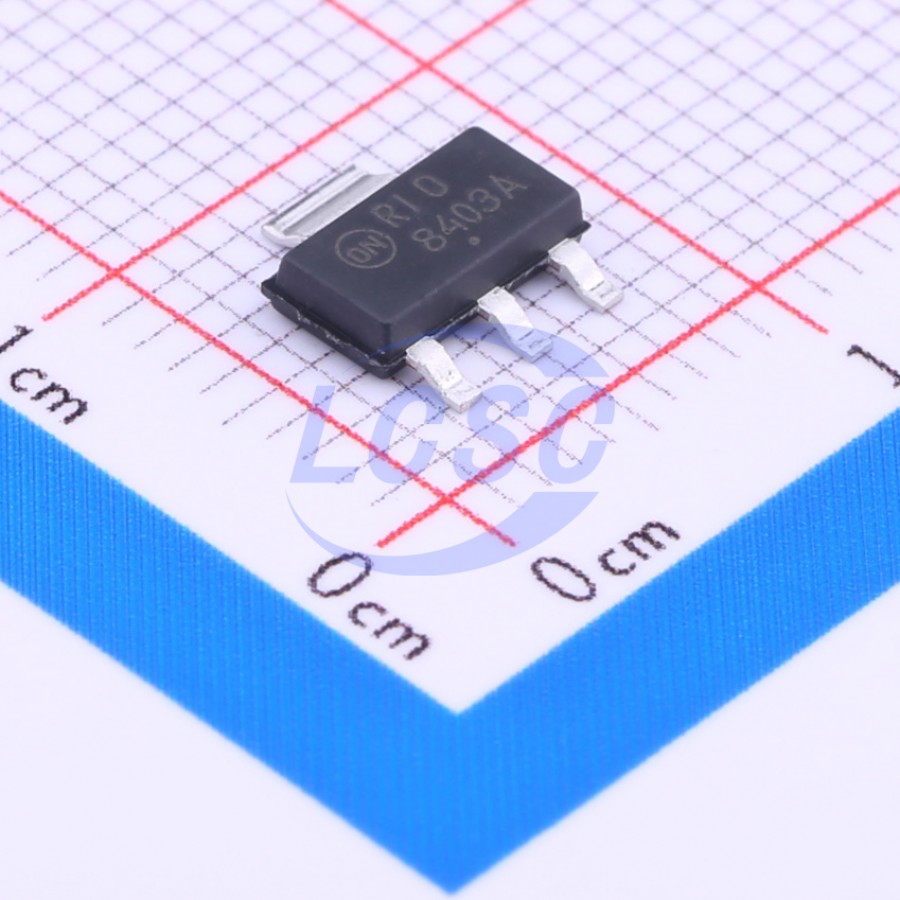

NCV8403ASTT1G
N-Channel 42V 15A 1.56W Surface Mount SOT-223
SOT-223ROHS3 CompliantActive
MOSFET N-CH 42V 15A SOT-223
- Manufacturer
- onsemi
- Manufacturer part #
- NCV8403ASTT1G
- Store part #
- C266786
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,393 in stock
#C266786
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹134.89 | ₹134.89 |
| 10+ | ₹111.22 | ₹1,112.20 |
| 30+ | ₹98.19 | ₹2,945.70 |
| 100+ | ₹83.42 | ₹8,342.00 |
| 500+ | ₹76.91 | ₹38,455.00 |
| 1,000+ | ₹73.86 | ₹73,860.00 |
1 × ₹134.89
₹134.89
excl. GST
₹159.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
NCV8403ASTT1G
₹134.89 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Drain to Source Voltage
- 42V
- Current - Continuous Drain(Id)
- 15A
- Pd - Power Dissipation
- 1.56W
- RDS(on)
- 68mΩ@10V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.205 g
Overview
NCV8403A/B is a three terminal protected Low-Side Smart Discrete device. The protection features include overcurrent, overtemperature, ESD and integrated Drain-to-Gate clamping for overvoltage protection. This device offers protection and is suitable for harsh automotive environments.
Applications
- Switch a Variety of Resistive, Inductive and Capacitive Loads
- Can Replace Electromechanical Relays and Discrete Circuits
- Automotive / Industrial
Key features
- Short Circuit Protection
- Thermal Shutdown with Automatic Restart
- Over Voltage Protection
- Integrated Clamp for Inductive Switching
- ESD Protection
- dV/dt Robustness
- Analog Drive Capability (Logic Level Input)
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBJ1203M#C7429155VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | On request | Price on request | Quote |
