onsemiDatasheet (PDF)

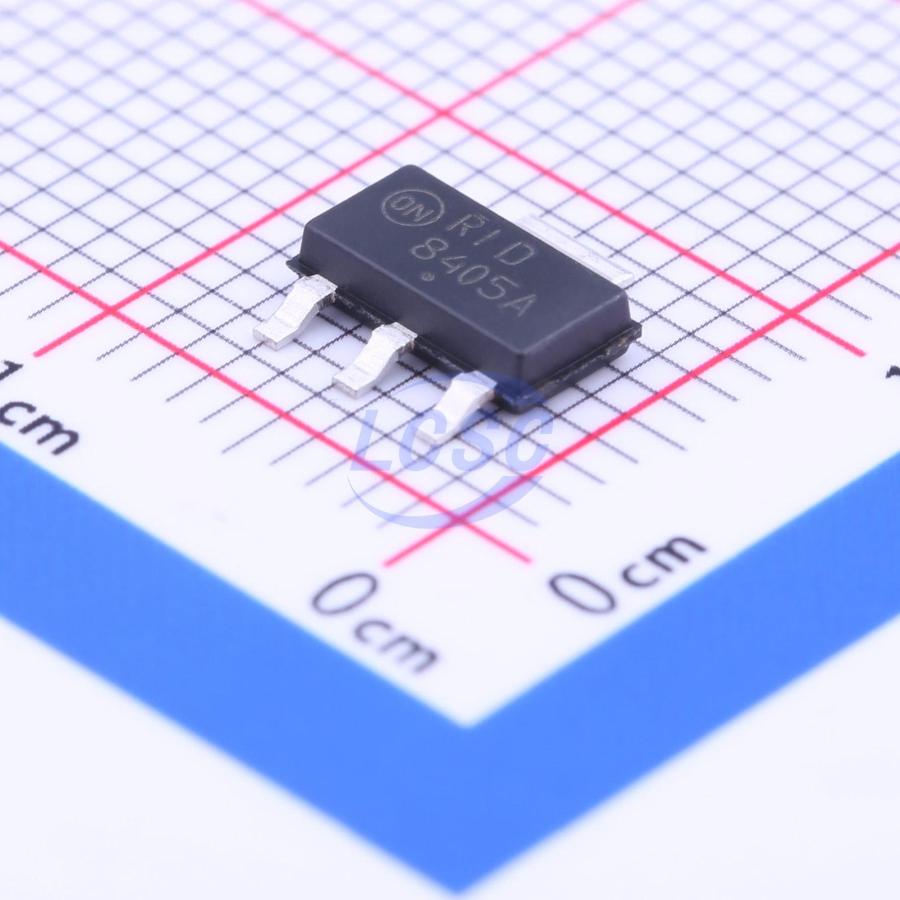

NCV8405ASTT1G
1 Active High 6A Low Side Switch SOT-223 Power Distribution Switches, Load Drivers RoHS
SOT-223ROHS3 CompliantActive
Self-Protected Low Side Driver with Temperature and Current Limit
- Manufacturer
- onsemi
- Manufacturer part #
- NCV8405ASTT1G
- Store part #
- C223559
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,415 in stock
#C223559
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹146.11 | ₹146.11 |
| 10+ | ₹120.02 | ₹1,200.20 |
| 30+ | ₹106.98 | ₹3,209.40 |
| 100+ | ₹93.93 | ₹9,393.00 |
| 500+ | ₹81.75 | ₹40,875.00 |
| 1,000+ | ₹77.62 | ₹77,620.00 |
1 × ₹146.11
₹146.11
excl. GST
₹172.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
NCV8405ASTT1G
₹146.11 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 6A
- RDS(on)
- 90mΩ
- Operating Voltage
- 42V
- Type
- Low Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
NCV8405A/B is a three terminal protected Low−Side Smart Discrete device. The protection features include overcurrent, overtemperature, ESD and integrated Drain−to−Gate clamping for overvoltage protection. This device is suitable for harsh automotive environments.
Applications
- Switch a Variety of Resistive, Inductive and Capacitive Loads
- Can Replace Electromechanical Relays and Discrete Circuits
- Automotive / Industrial
Key features
- Short−Circuit Protection
- Thermal Shutdown with Automatic Restart
- Overvoltage Protection
- Integrated Clamp for Inductive Switching
- ESD Protection
- dV/dt Robustness
- Analog Drive Capability (Logic Level Input)
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCV8405ASTT3G#C604058onsemi · SOT-223-3 | onsemi | SOT-223-3 | 1 | ₹343.12 · 1 in stock | View |
| NCV8415STT1G#C3235507onsemi · SOT-223 | onsemi | SOT-223 | 104 | ₹123.41 · 104 in stock | View | |
 | NCV8403ASTT3G#C367385onsemi · SOT-223 | onsemi | SOT-223 | On request | ₹175.02 · 0 in stock | View |
