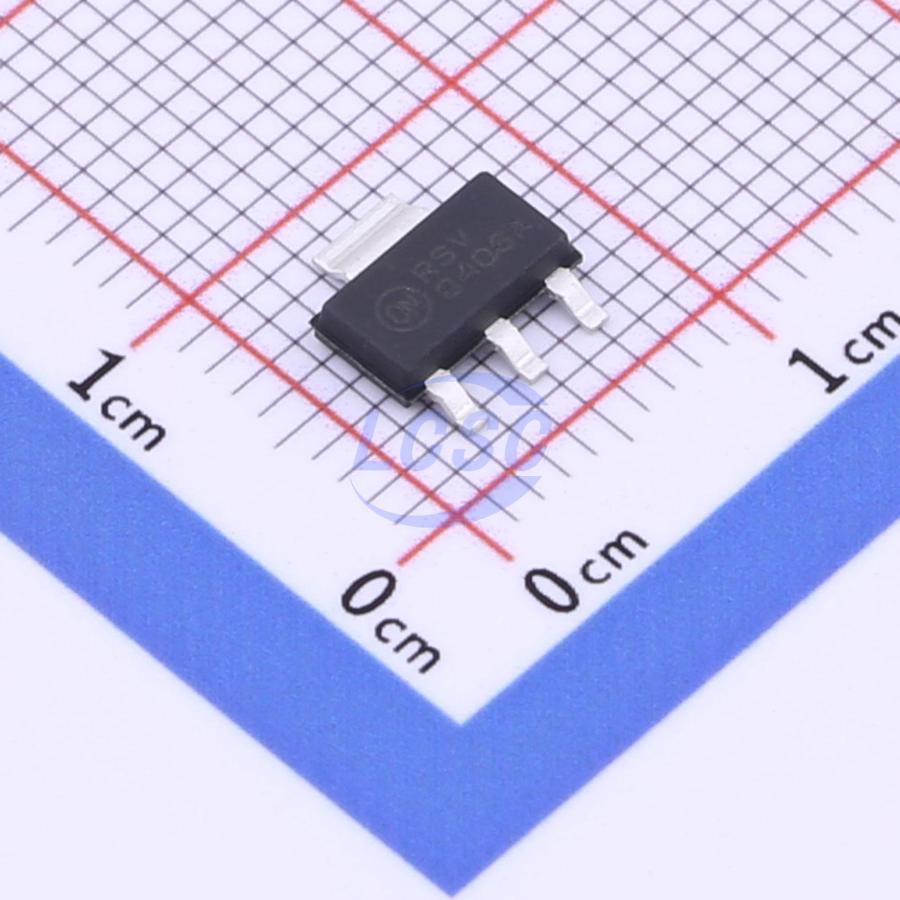

NCV8406ASTT3G
1 Active High 7A Low Side Switch SOT-223 Power Distribution Switches, Load Drivers RoHS
SOT-223ROHS3 CompliantActive
Self-Protected Low Side Driver with Temperature and Current Limit
- Manufacturer
- onsemi
- Manufacturer part #
- NCV8406ASTT3G
- Store part #
- C459816
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,648 in stock
#C459816
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹111.01 | ₹111.01 |
| 10+ | ₹91.29 | ₹912.90 |
| 30+ | ₹81.31 | ₹2,439.30 |
| 100+ | ₹71.56 | ₹7,156.00 |
| 500+ | ₹65.70 | ₹32,850.00 |
| 1,000+ | ₹62.67 | ₹62,670.00 |
1 × ₹111.01
₹111.01
excl. GST
₹130.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NCV8406ASTT3G
₹111.01 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 7A
- Operating Voltage
- 60V
- RDS(on)
- 185mΩ
- Type
- Low Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
Overview
NCV8406A/B is a three terminal protected Low-Side Smart Discrete device. The protection features include overcurrent, overtemperature, ESD and integrated Drain-to-Gate clamping for overvoltage protection. This device offers protection and is suitable for harsh automotive environments.
Applications
- Switch a Variety of Resistive, Inductive and Capacitive Loads
- Can Replace Electromechanical Relays and Discrete Circuits
- Automotive / Industrial
Key features
- Short Circuit Protection
- Thermal Shutdown with Automatic Restart
- Over Voltage Protection
- Integrated Clamp for Inductive Switching
- ESD Protection
- dV/dt Robustness
- Analog Drive Capability (Logic Level Input)
- These Devices are Faster than the Rest of the NCV Devices
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
