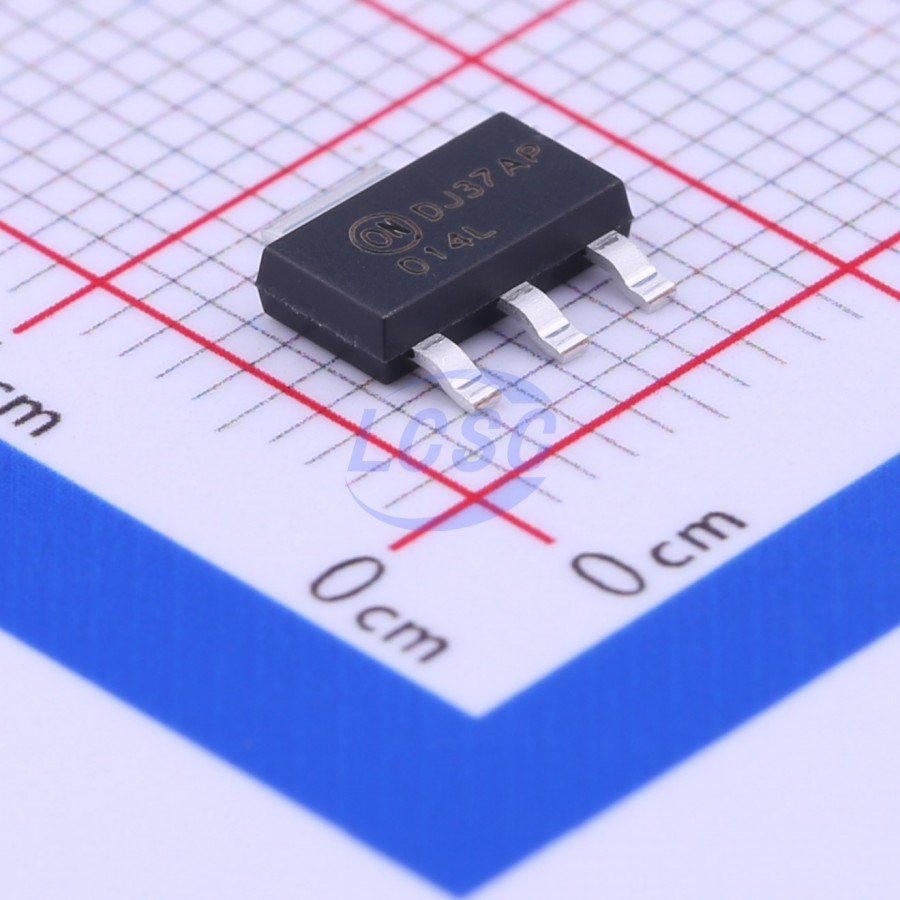

NDT014L
N-Channel 60V 2.8A 3W Surface Mount SOT-223
SOT-223ROHS3 CompliantActive
MOSFET N-CH 60V 2.8A SOT-223
- Manufacturer
- onsemi
- Manufacturer part #
- NDT014L
- Store part #
- C274610
- Package / case
- SOT-223
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
280 in stock
#C274610
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹84.92 | ₹84.92 |
| 10+ | ₹82.75 | ₹827.50 |
| 30+ | ₹81.46 | ₹2,443.80 |
| 100+ | ₹79.94 | ₹7,994.00 |
1 × ₹84.92
₹84.92
excl. GST
₹100.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NDT014L
₹84.92 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 70pF
- Ciss-Input Capacitance
- 214pF
- Pd - Power Dissipation
- 3W
- Operating Temperature
- -65℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 2.8A
- Reverse Transfer Capacitance (Crss)
- 27pF
- RDS(on)
- 200mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 5nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.202 g
Overview
These N-Channel logic level enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology. This very high density process is especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulses in the avalanche and commutation modes. These devices are particularly suited for low voltage applications such as DC motor control and DC/DC conversion where fast switching, low in-line power loss, and resistance to transients are needed.
Applications
- DC motor control
- DC/DC conversion
Key features
- 2.8 A, 60 V. RDS(ON)=0.2 Ω @ VGS = 4.5 V; RDS(ON)=0.16 Ω @ VGS = 10 V.
- High density cell design for extremely low RDS(ON).
- High power and current handling capability in a widely used surface mount package.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFL014NTRPBF#C7472940TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 3,095 | ₹35.69 · 3,095 in stock | View |
 | IRLL014NTRPBF-TP#C41407976TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 2,565 | ₹36.01 · 2,565 in stock | View |
 | ME2614#C2841352MATSUKI · SOT-223-3 | MATSUKI | SOT-223-3 | 90 | ₹34.78 · 90 in stock | View |
 | PJW4N06A#C2844883PANJIT · SOT-223 | PANJIT | SOT-223 | 740 | ₹40.99 · 740 in stock | View |
 | NTF3055L108T1G#C7472933TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 5,335 | ₹37.80 · 5,335 in stock | View |
