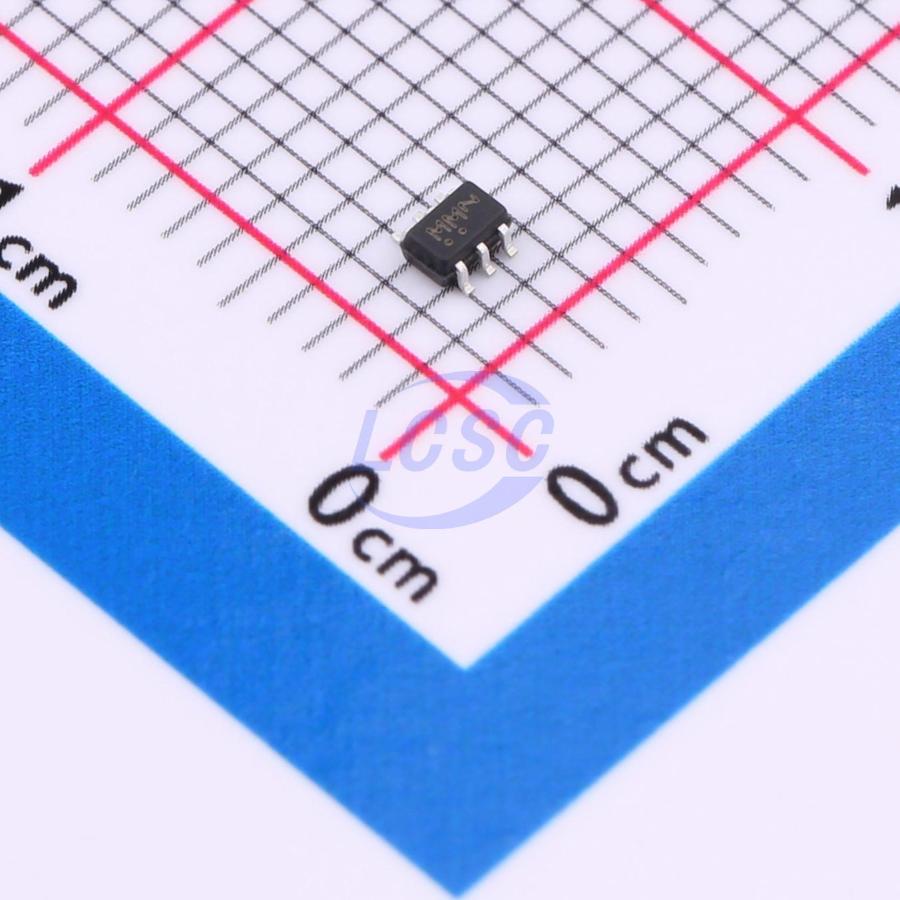

NL7SZ58DFT2G
32mA 10uA 32mA 1.65V~5.5V 1 SC-88 Gates and Inverters - Multi-Function, Configurable RoHS
SC-88ROHS3 CompliantDiscontinued
Configurable Multifunction Gate
- Manufacturer
- onsemi
- Manufacturer part #
- NL7SZ58DFT2G
- Store part #
- C462933
- Package / case
- SC-88
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,180 in stock
#C462933
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹5.83 | ₹29.15 |
| 50+ | ₹5.57 | ₹278.50 |
| 150+ | ₹5.40 | ₹810.00 |
| 500+ | ₹5.23 | ₹2,615.00 |
5 × ₹5.83
₹29.15
excl. GST
₹34.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NL7SZ58DFT2G
₹29.15 for 5 + GST
Specifications
- Input Logic Level - High
- 1.4V;1.8V;2.2V;3.1V;3.6V
- Input Logic Level - Low
- 200mV;400mV;600mV;1V;1.2V
- Logic Family
- 7SZ Series
- Propagation Delay
- 3.3ns@5V,50pF
- Current - Output Low(IOL)
- 32mA
- Output Logic Level - High
- 3.8V~4V
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 32mA
- Voltage - Supply
- 1.65V~5.5V
- Features
- Overvoltage-tolerant input;Local shutdown mode
- Operating Temperature
- -55℃~+125℃
- Number of Gates
- 1
- Output Logic Level - Low
- 550mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
Overview
The NL7SZ58 is an advanced high−speed CMOS multifunction gate. The device allows the user to choose logic functions AND, OR, NAND, NOR, XOR, INVERT and BUFFER.
Key features
- Designed for 1.65 V to 5.5 V VCC Operation
- 3.3 ns tPD at VCC = 5 V (Typ)
- Inputs/Outputs Overvoltage Tolerant up to 5.5 V
- IOFF Supports Partial Power Down Protection
- Sink 24 mA at 3.0 V
- Available in SC−88, SC-74 and UDFN6 Packages
- Chip Complexity < 100 FETs
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
