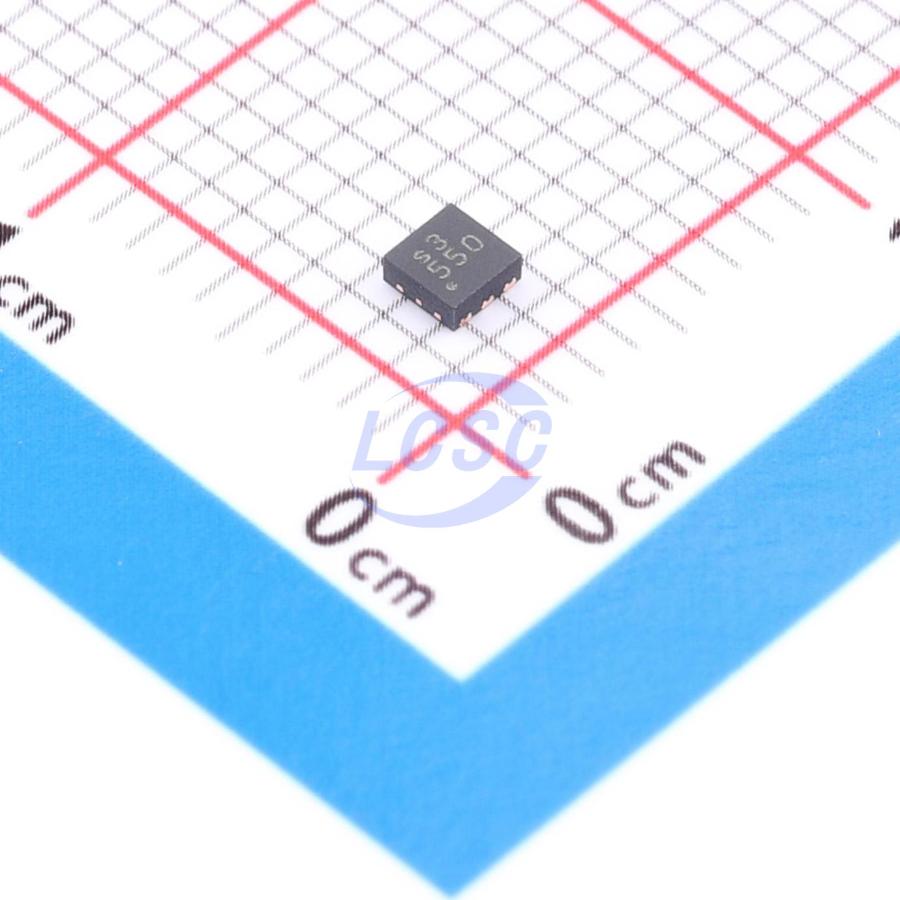

NPS4053GH-Q100Z

When the output load exceeds the current limit threshold or a short circuit occurs, the switch limits the output current to a constant level via constant-current mode. An internal voltage comparator disables the load switch when the output voltage exceeds the input voltage, protecting devices on the switch input side. The FLG pin is an active-low output that indicates overcurrent, overtemperature, and reverse voltage conditions.

Applications

• USB ports/hubs
• Power distribution in electronic control units
• Current limiting circuits

Key features

• AEC-Q100 (Grade 1) automotive qualification
• Operating temperature range: -40°C ~ +125°C
• Input operating voltage range: 2.5 V ~ 5.5 V
• Maximum continuous current: 2 A
• On-resistance RDS(on):
• VIN = 5.5 V: 55 mΩ (typical)
• VIN = 3.6 V: 65 mΩ (typical)
• VIN = 2.5 V: 80 mΩ (typical)
• Adjustable current limit: 110 mA ~ 2.5 A
• Current limit accuracy of ±6% at 1.2 A
• ILIM pin protection: can be shorted to GND or left floating
• Constant-current mode during current limiting
• No body diode when disabled (no current path from OUT pin to IN pin)
• Active reverse voltage protection
• Integrated soft-start
• UL 62368 certified
• Package options: SOT457 (TSOP6) and SOT8044-1 (HWSON6)
• ESD protection:
• HBM: compliant with ANSI/ESDA/JEDEC JS-001 Class 2, exceeds 2000 V
• CDM: compliant with ANSI/ESDA/JEDEC JS-002 Class C2a, exceeds 500 V
• IEC 61000-4-2 contact discharge: 8000 V
• IEC 61000-4-2 air discharge: 15000 V
