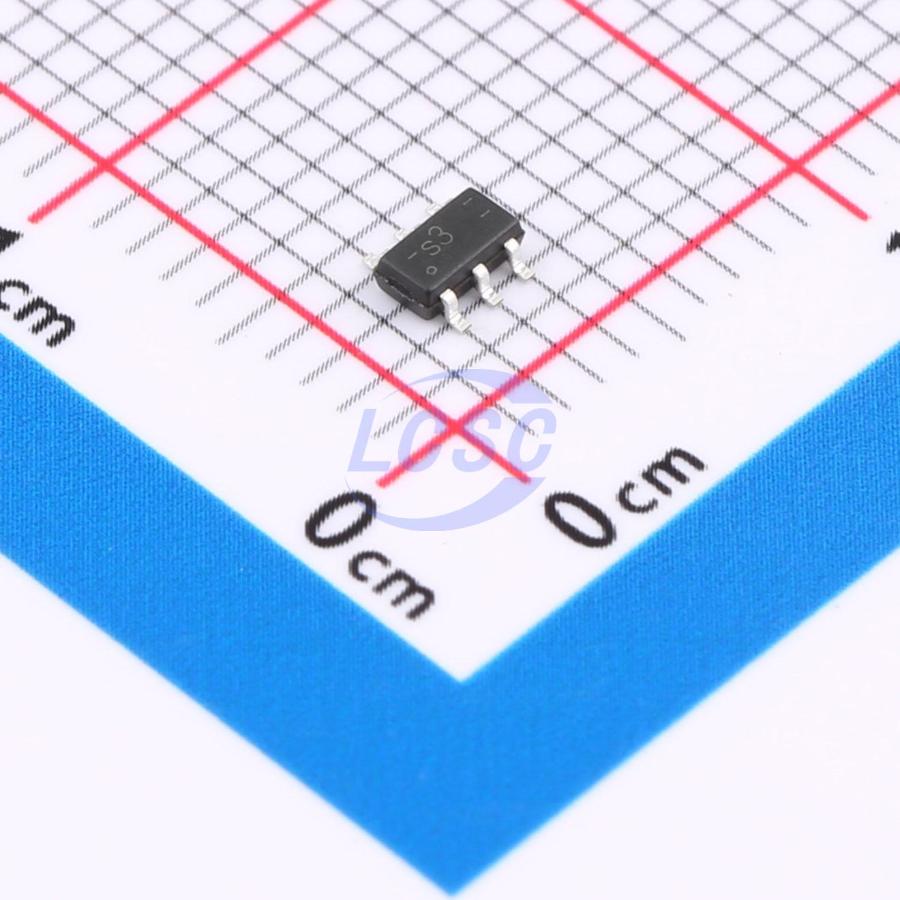

NPS4053GVH

The NPS4053 is a 5.5 V, 55 mΩ load switch with precision adjustable current limit from 110 mA to 2.5 A. The NPS4053 switch limits the output current to a constant current by using a constant-current mode when the output load exceeds the current limit threshold or shorted. An internal voltage comparator disables the load switch when the output voltage is higher than the input to protect devices on the input side of the switch. The FLG pin is an active low output to indicate overcurrent, over temperature and reverse voltage conditions. The NPS4053 is a 5.5 V, 55 mΩ P-channel load switch with overcurrent, overtemperature and active reverse voltage protections. The NPS4053 allows users to program the current limit threshold between 110 mA and 2.5 A using an external resistor. The NPS4053 has built in soft-start functionality and controls the rising and falling times of the output voltage to limit large current and voltage surges. Additional features include overtemperature protection and active reverse-voltage protection. NPS4053 enters constant-current limit when the load exceeds the current limit threshold.

Applications

• USB ports/hubs, laptops, docking station and desktops
• Set top box
• HDTV Optical socket protection
• Current limiting circuits

Key features

• Input operating voltage range (V_IN): 2.5 V to 5.5 V
• Maximum continuous current (I_MAX): 2 A
• ON resistance (R_DS(on)):
• V_IN = 5.5 V: 55 mΩ (typical)
• V_IN = 3.6 V: 65 mΩ (typical)
• V_IN = 2.5 V: 80 mΩ (typical)
• Adjustable current limit: 110 mA to 2.5 A
• ±6 % current limit accuracy at 1.2 A
• ILIM pin protection: can be shorted to ground or left floating
• Constant current during current limit
• No body diode when disabled (no current path from pin OUT to pin IN)
• Active reverse voltage protection
• Built in soft start
• UL 62368 recognition
• SOT457 (TSOP6) and SOT8044-1 (HWSON6) package option
• ESD protection:
• HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
• CDM: ANSI/ESDA/JEDEC JS-002 class C2a exceeds 500 V
• IEC 61000-4-2 contact discharge 8000 V
• IEC 61000-4-2 air-gap discharge 15000 V
• Specified from -40 °C to +125 °C
