onsemiDatasheet (PDF)

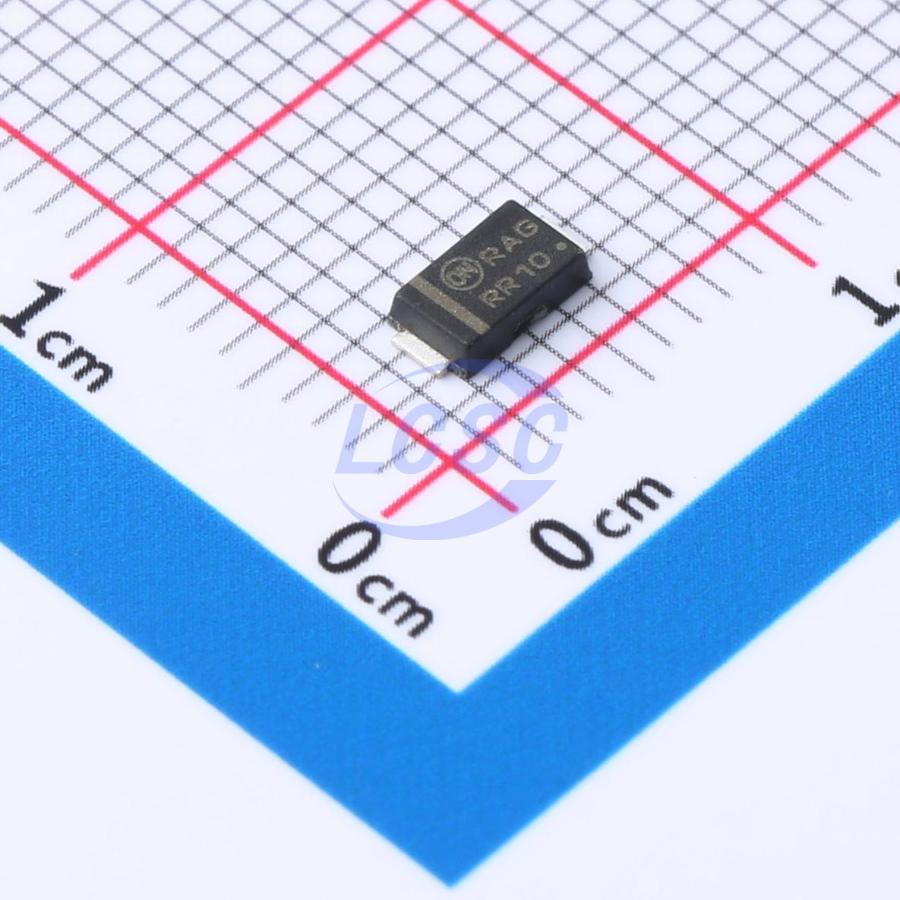

NRVBAF260T3G
Diode 60V 2A Surface Mount SMA-FL
SMA-FLROHS3 CompliantActive
DIODE SCHOTTKY 60V SMA-FL
- Manufacturer
- onsemi
- Manufacturer part #
- NRVBAF260T3G
- Store part #
- C604274
- Package / case
- SMA-FL
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
220 in stock
#C604274
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.12 | ₹215.60 |
| 50+ | ₹34.32 | ₹1,716.00 |
| 150+ | ₹30.53 | ₹4,579.50 |
| 500+ | ₹25.82 | ₹12,910.00 |
| 2,500+ | ₹23.73 | ₹59,325.00 |
| 5,000+ | ₹22.48 | ₹1,12,400.00 |
5 × ₹43.12
₹215.60
excl. GST
₹254.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NRVBAF260T3G
₹215.60 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 630mV@2A
- Reverse Leakage Current (Ir)
- 200uA@60V
- Non-Repetitive Peak Forward Surge Current
- 60A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.089 g
Overview
This device employs the Schottky Barrier principle in a large area metal-to-silicon power diode. State-of-the-art geometry features epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity protection diodes in surface mount applications where compact size and weight are critical to the system.
Key features
- Low Profile Package for Space Constrained Applications
- Rectangular Package for Automated Handling
- Highly Stable Oxide Passivated Junction
- 150℃ Operating Junction Temperature
- Guard-Ring for Stress Protection
- NRVB Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable
- These are Pb-Free and Halide-Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MBRAF260T3G#C895499onsemi · SMA-FL | onsemi | SMA-FL | 54 | ₹94.09 · 54 in stock | View |
 | VSS8D2M6-M3/I#C5831598VISHAY · DO-221AC(SMA) | VISHAY | DO-221AC(SMA) | 956 | ₹69.60 · 956 in stock | View |
 | SM260AF#C383307LRC · SMA-FL | LRC | SMA-FL | 190 | ₹7.12 · 190 in stock | View |
 | VSSAF3M10HM3/H#C3759644VISHAY · DO-221AC(SlimSMA) | VISHAY | DO-221AC(SlimSMA) | 90 | ₹44.29 · 90 in stock | View |
 | VSSAF3M10-M3/H#C6750644VISHAY · DO-221AC(SLIMSMA) | VISHAY | DO-221AC(SLIMSMA) | On request | ₹86.41 · 0 in stock | View |
