VISHAYDatasheet (PDF)

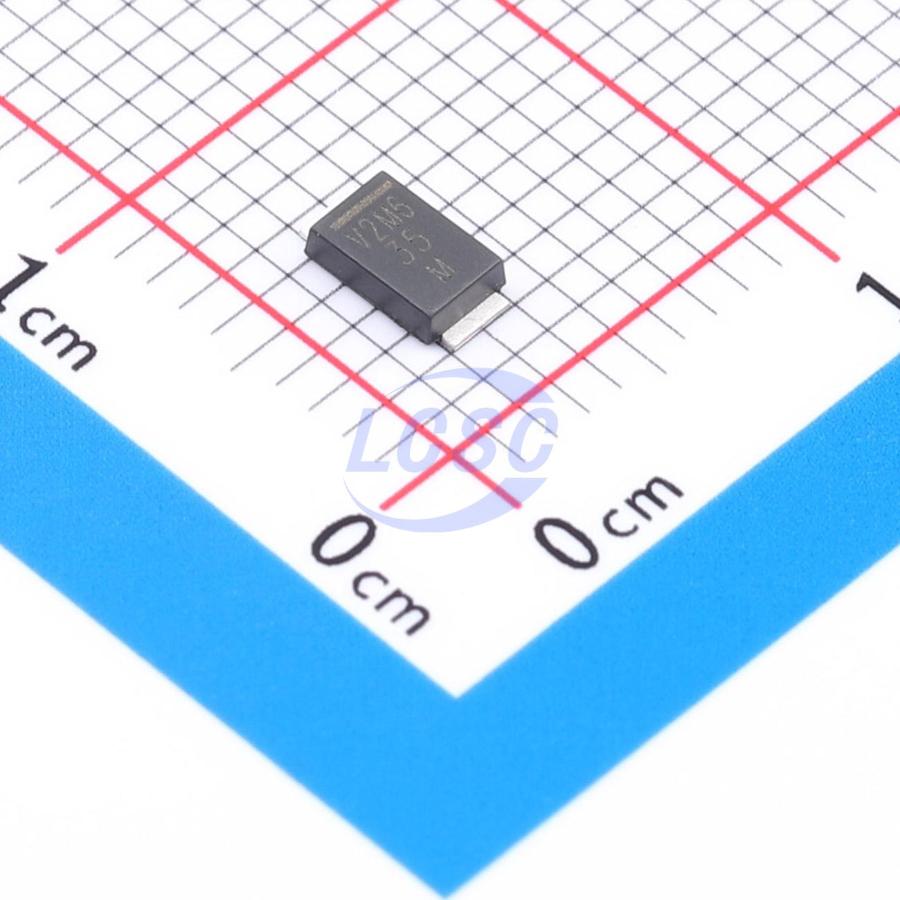

VSS8D2M6-M3/I
1 Independent 60V 480mV@1A 2A DO-221AC(SMA) Single Diodes RoHS
DO-221AC(SMA)ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- VSS8D2M6-M3/I
- Store part #
- C5831598
- Package / case
- DO-221AC(SMA)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
956 in stock
#C5831598
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.60 | ₹69.60 |
| 10+ | ₹54.86 | ₹548.60 |
| 30+ | ₹48.57 | ₹1,457.10 |
| 100+ | ₹40.55 | ₹4,055.00 |
| 500+ | ₹37.08 | ₹18,540.00 |
| 1,000+ | ₹35.13 | ₹35,130.00 |
1 × ₹69.60
₹69.60
excl. GST
₹82.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 14,000 per reel
VSS8D2M6-M3/I
₹69.60 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 480mV@1A
- Reverse Leakage Current (Ir)
- 200uA@60V
- Non-Repetitive Peak Forward Surge Current
- 60A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 14,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.05 g
Overview
Applications
- For use in high-frequency inverters, freewheeling, DC/DC converters, and polarity protection in commercial, industrial, and automotive applications.
Key features
- Low-profile package
- MSL Level 1 per J-STD-020, lead-free peak reflow temperature 260°C
- AEC-Q101 qualified parts available
- Automotive ordering code: base part number NHM3
- Compatible with SOD-128 package footprint
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NRVBAF260T3G#C604274onsemi · SMA-FL | onsemi | SMA-FL | 220 | ₹43.12 · 220 in stock | View |
 | MBRAF260T3G#C895499onsemi · SMA-FL | onsemi | SMA-FL | 54 | ₹94.09 · 54 in stock | View |
 | VSSAF3M10HM3/H#C3759644VISHAY · DO-221AC(SlimSMA) | VISHAY | DO-221AC(SlimSMA) | 90 | ₹44.29 · 90 in stock | View |
 | VSSAF3M10-M3/H#C6750644VISHAY · DO-221AC(SLIMSMA) | VISHAY | DO-221AC(SLIMSMA) | On request | ₹86.41 · 0 in stock | View |
 | VSSAF515-M3/H#C7149670VISHAY · DO-221AC(SLIMSMA) | VISHAY | DO-221AC(SLIMSMA) | 4,900 | ₹50.23 · 4,900 in stock | View |
