WXNSICDatasheet (PDF)

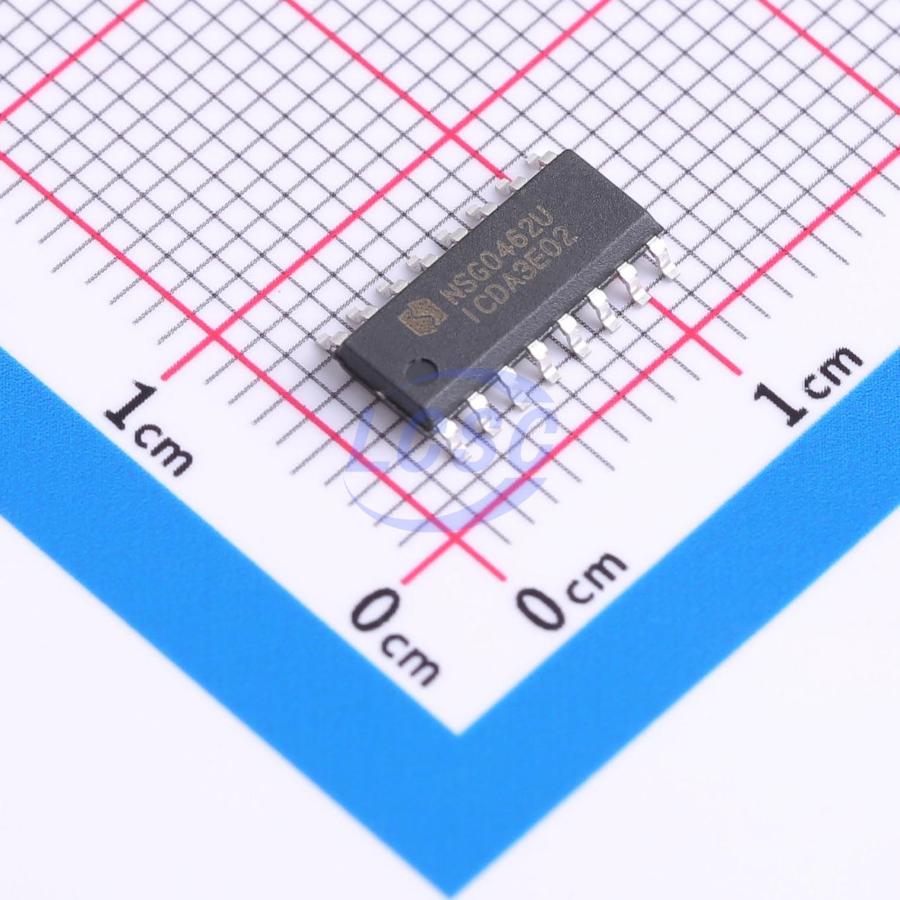

NSG0462U
Half-Bridge Gate Driver IC MOSFET SOP-16-150mil
SOP-16-150milROHS CompliantActive
Three-phase PMOS+NMOS half-bridge driver IC with LDO
- Manufacturer
- WXNSIC
- Manufacturer part #
- NSG0462U
- Store part #
- C6274824
- Package / case
- SOP-16-150mil
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,640 in stock
#C6274824
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.59 | ₹157.95 |
| 50+ | ₹25.12 | ₹1,256.00 |
| 150+ | ₹22.35 | ₹3,352.50 |
| 500+ | ₹18.89 | ₹9,445.00 |
| 2,500+ | ₹17.36 | ₹43,400.00 |
| 4,000+ | ₹16.43 | ₹65,720.00 |
5 × ₹31.59
₹157.95
excl. GST
₹186.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NSG0462U
₹157.95 for 5 + GST
Specifications
- Voltage - Supply
- 5V~40V
- Driven Configuration
- Half-Bridge
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 300mA
- Rise Time
- 300ns
- Features
- Interleaved conduction protection;Dead-time control
- Current - Output High(IOH)
- 50mA
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.284 g
Overview
NSG0462U is a three-phase high-speed power MOSFET driver with 6 channels and a maximum operating voltage of 40V.
