WXNSICDatasheet (PDF)

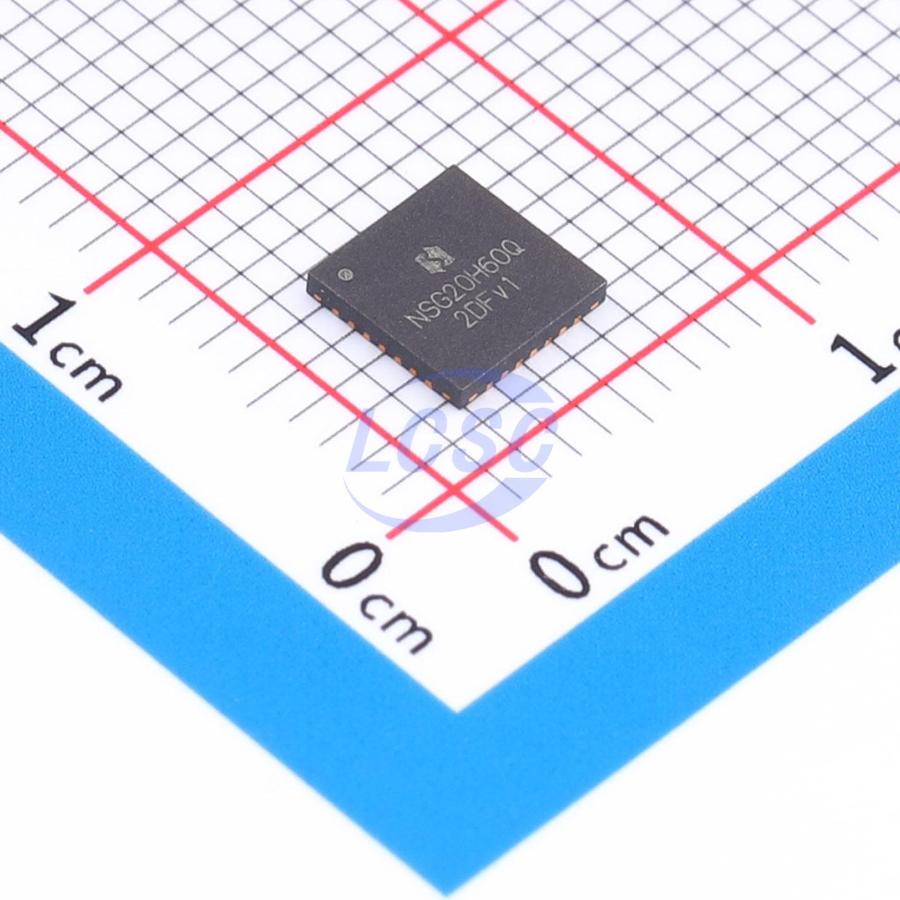

NSG20H60Q
1.3A 6V~20V 2A QFN-28(5x5) Gate Drivers
QFN-28(5x5)RoHSActive
- Manufacturer
- WXNSIC
- Manufacturer part #
- NSG20H60Q
- Store part #
- C55098098
- Package / case
- QFN-28(5x5)
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C55098098
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹123.44 | ₹123.44 |
| 10+ | ₹99.97 | ₹999.70 |
| 30+ | ₹88.23 | ₹2,646.90 |
| 100+ | ₹76.50 | ₹7,650.00 |
| 500+ | ₹69.54 | ₹34,770.00 |
| 1,000+ | ₹66.07 | ₹66,070.00 |
1 × ₹123.44
₹123.44
excl. GST
₹145.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NSG20H60Q
₹123.44 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Rise Time
- 40ns
- Low Level Delay Time
- 150ns
- Fall Time
- 15ns
- High Level Delay Time
- 150ns
- Current - Output High(IOH)
- 1.3A
- Load Type
- MOSFET;IGBT
- Quiescent Current
- 1mA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 6V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- High Side
- Current - Output Low(IOL)
- 2A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.093 g
