WXNSICDatasheet (PDF)

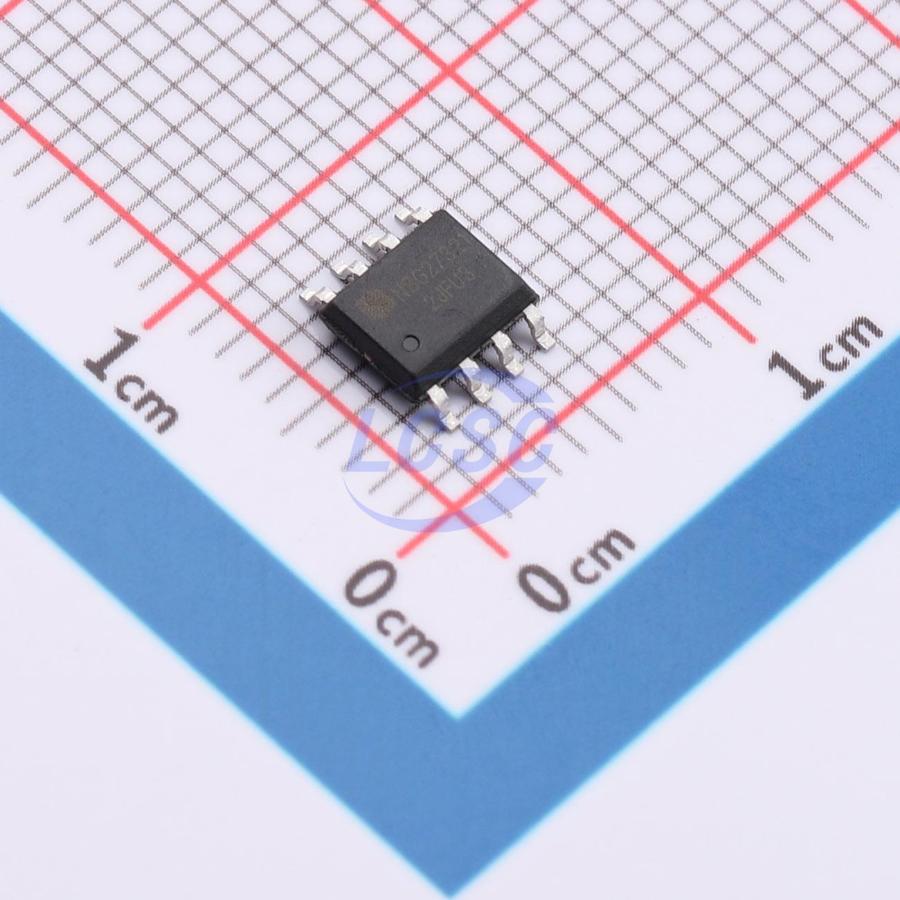

NSG27321
5V~15V 9A 9A SOP-8 Gate Drivers
SOP-8RoHSActive
- Manufacturer
- WXNSIC
- Manufacturer part #
- NSG27321
- Store part #
- C53190619
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,468 in stock
#C53190619
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹202.08 | ₹202.08 |
| 10+ | ₹167.82 | ₹1,678.20 |
| 30+ | ₹149.17 | ₹4,475.10 |
| 100+ | ₹128.15 | ₹12,815.00 |
| 500+ | ₹118.61 | ₹59,305.00 |
| 1,000+ | ₹114.48 | ₹1,14,480.00 |
1 × ₹202.08
₹202.08
excl. GST
₹238.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NSG27321
₹202.08 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Quiescent Current
- 150uA
- Input Logic Level - High
- 2.7V
- Voltage - Supply
- 5V~15V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 9A
- Rise Time
- 15ns
- Fall Time
- 13ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 9A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.235 g
