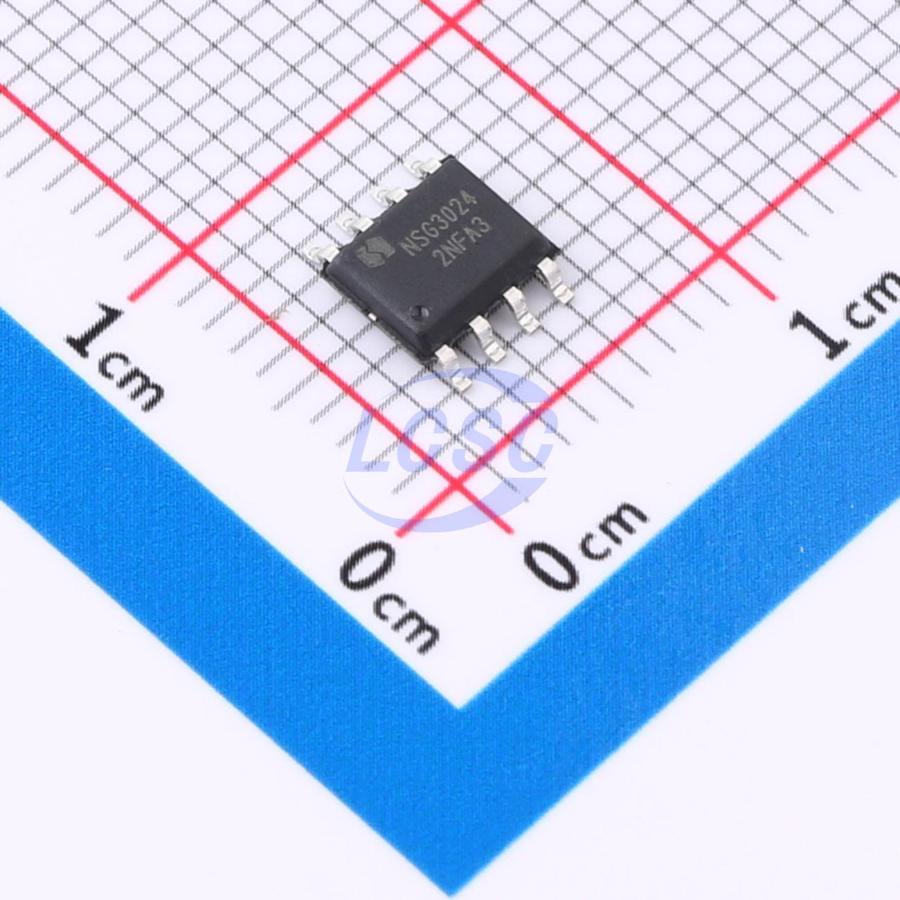

NSG3024
10V~20V 1.1A 600mA SOP-8 Gate Drivers RoHS
High-voltage and high-speed power MOSFET high-side and low-side driver IC
- Manufacturer
- WXNSIC
- Manufacturer part #
- NSG3024
- Store part #
- C49023241
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,995 in stock
#C49023241
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.24 | ₹91.20 |
| 50+ | ₹14.42 | ₹721.00 |
| 150+ | ₹12.50 | ₹1,875.00 |
| 500+ | ₹11.07 | ₹5,535.00 |
| 2,500+ | ₹9.92 | ₹24,800.00 |
| 4,000+ | ₹9.35 | ₹37,400.00 |
5 × ₹18.24
₹91.20
excl. GST
₹107.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NSG3024
₹91.20 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Quiescent Current
- 50uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- High Side;Low Side
- Current - Output Low(IOL)
- 1.1A
- Rise Time
- 35ns
- Fall Time
- 25ns
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection;Built-in bootstrap diode
- Current - Output High(IOH)
- 600mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.203 g
Overview
NSG3024 is a high-voltage, high-speed power MOSFET high- and low-side gate driver IC featuring independent high-side and low-side referenced output channels. The device employs a high-voltage compatible process to achieve single-chip integration of both high-side and low-side gate drive circuits. Its logic input levels are compatible with CMOS or LSTTL logic outputs down to 3.3V. The floating channel supports high-side N-channel power MOSFET driving, with a maximum floating supply voltage of 300V. The NSG3024 is available in an SOP8 package and operates over a temperature range of -40°C to 125°C.
Applications
- Motor Control
- Air Conditioner/Washing Machine
- General-Purpose Inverter
- Inverter Drive
Key features
- Floating high-side channel with bootstrap operation
- Maximum operating voltage +300V
- Compatible with 3.3V, 5V, and 15V input logic
- dVs/dt immunity up to ±50V/ns
- VS negative bias capability down to -9V
- Integrated under-voltage lockout (UVLO)
- VCC UVLO positive threshold 8.7V
- VCC UVLO negative threshold 7.7V
- Propagation delay characteristics
- High-side turn-on/turn-off propagation delay Ton/Toff = 680ns/140ns
- Low-side turn-on/turn-off propagation delay Ton/Toff = 150ns/130ns
- Cross-conduction prevention protection
- Dead time 540ns
- Wide temperature range -40℃ ~ 125℃
- Output source/sink current capability 0.6A/1.1A
- Integrated bootstrap diode
- RoHS compliant
- SOP8 package
