WXNSICDatasheet (PDF)

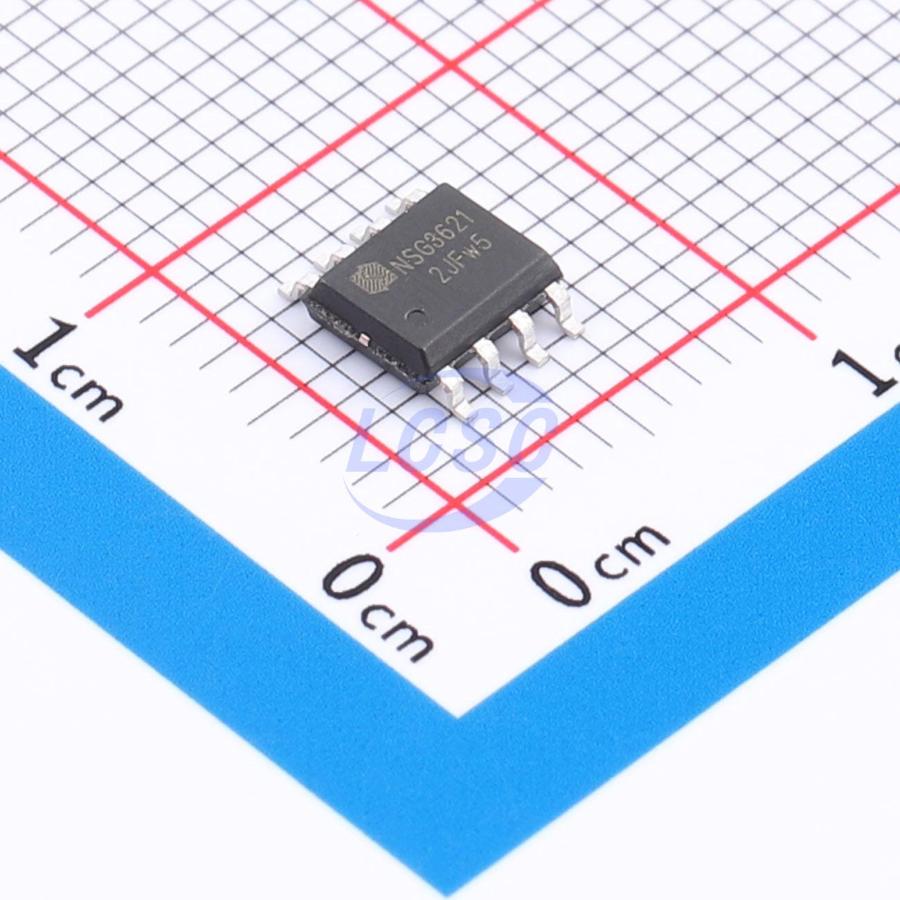

NSG3621
4.5A 5V~20V 5A SOP-8 Gate Drivers
SOP-8RoHSActive
- Manufacturer
- WXNSIC
- Manufacturer part #
- NSG3621
- Store part #
- C55862208
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,155 in stock
#C55862208
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.37 | ₹72.37 |
| 10+ | ₹57.15 | ₹571.50 |
| 30+ | ₹50.63 | ₹1,518.90 |
| 100+ | ₹42.60 | ₹4,260.00 |
| 500+ | ₹38.90 | ₹19,450.00 |
| 1,000+ | ₹36.73 | ₹36,730.00 |
1 × ₹72.37
₹72.37
excl. GST
₹85.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NSG3621
₹72.37 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Rise Time
- 15ns
- Low Level Delay Time
- 150ns
- High Level Delay Time
- 150ns
- Fall Time
- 10ns
- Current - Output High(IOH)
- 4.5A
- Features
- Dead-time control;Interleaved conduction protection
- Load Type
- MOSFET;IGBT
- Quiescent Current
- 260uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 5V~20V
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 5A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.247 g
