NCEDatasheet (PDF)

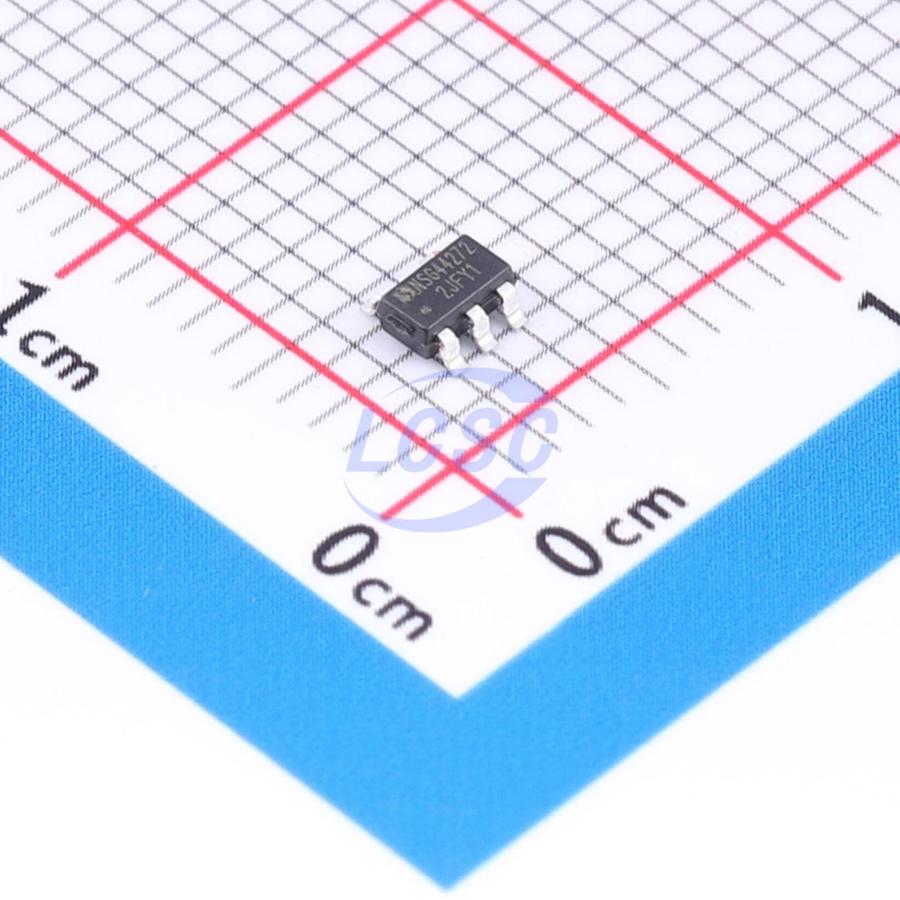

NSG44272
5V~20V 2A 2A SOT-23-5 Gate Drivers
SOT-23-5RoHSActive
- Manufacturer
- NCE
- Manufacturer part #
- NSG44272
- Store part #
- C53436460
- Package / case
- SOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,450 in stock
#C53436460
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.61 | ₹93.05 |
| 50+ | ₹18.24 | ₹912.00 |
| 150+ | ₹17.99 | ₹2,698.50 |
| 500+ | ₹17.74 | ₹8,870.00 |
5 × ₹18.61
₹93.05
excl. GST
₹109.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NSG44272
₹93.05 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 25ns
- High Level Delay Time
- 25ns
- Quiescent Current
- 280uA
- Input Logic Level - High
- 2.7V
- Voltage - Supply
- 5V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 2A
- Rise Time
- 30ns
- Fall Time
- 30ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 2A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
NSG44272 is a low-voltage power MOSFET and IGBT non-inverting gate driver. Proprietary latch-up immune CMOS technology enables a highly robust monolithic integration structure. The NSG44272 logic input levels are compatible with CMOS or LSTTL logic output levels as low as 3.3V. The output driver features a wide VCC range, UVLO with hysteresis, and an output current buffer stage. Operates over a temperature range of -40℃ to 125℃.
Applications
- Switching power supplies, switching converters
- General-purpose gate drivers
- MOSFET and IGBT drive
Key features
- CMOS Schmitt trigger input
- Non-inverting input/output
- 3.3V input logic compatible
- Output source/sink current: 2A/2A
- Operating range: 5V~25V
- High capacitive load drive capability
- Wide temperature range: -40℃~125℃
- Under-voltage lockout
- UVLO positive threshold: 4.0V
- UVLO negative threshold: 3.9V
- Turn-on/turn-off propagation delay
- Ton/Toff = 25ns/25ns
- RoHS compliant
- SOT23-5 package
