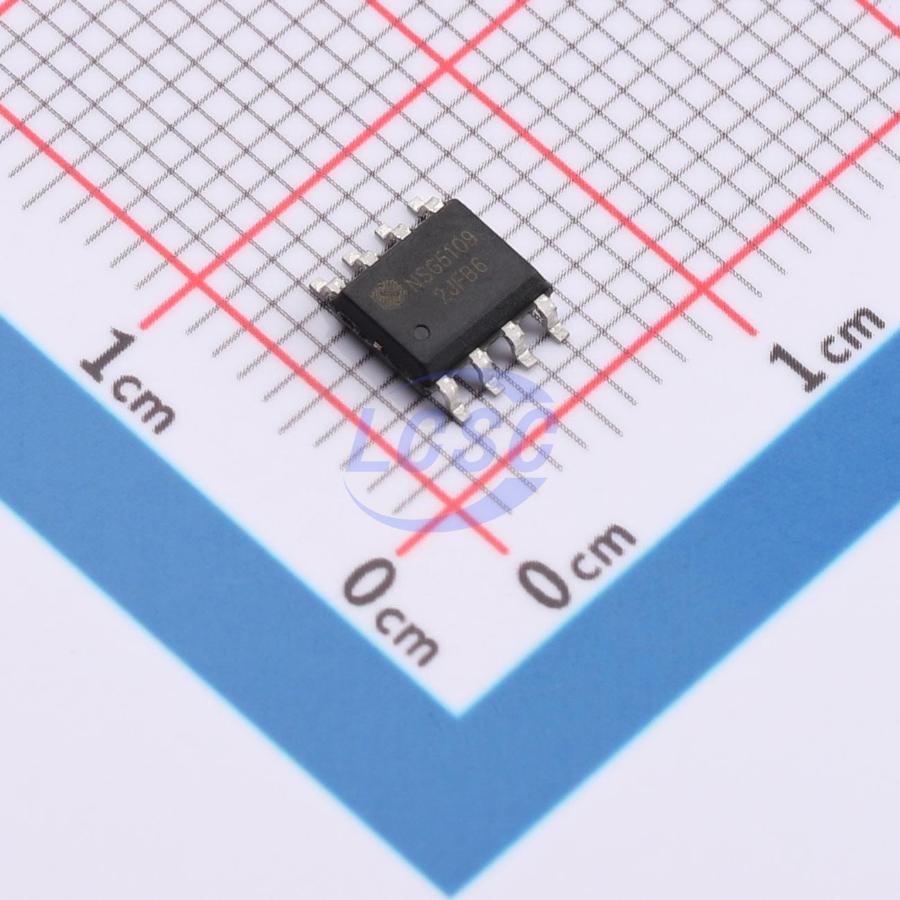

NSG5109
7V~17V 4.3A 4.3A SOP-8 Gate Drivers
- Manufacturer
- WXNSIC
- Manufacturer part #
- NSG5109
- Store part #
- C53190621
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,430 in stock
#C53190621
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹78.28 | ₹78.28 |
| 10+ | ₹63.32 | ₹633.20 |
| 30+ | ₹55.95 | ₹1,678.50 |
| 100+ | ₹48.57 | ₹4,857.00 |
| 500+ | ₹44.24 | ₹22,120.00 |
| 1,000+ | ₹41.85 | ₹41,850.00 |
1 × ₹78.28
₹78.28
excl. GST
₹92.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NSG5109
₹78.28 for 1 + GST
Specifications
- Quiescent Current
- 95uA
- Voltage - Supply
- 7V~17V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- High Side;Low Side
- Current - Output Low(IOL)
- 4.3A
- Rise Time
- 12ns
- Fall Time
- 12ns
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection;Overcurrent Protection;Built-in bootstrap diode;Charge pump boost
- Current - Output High(IOH)
- 4.3A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.222 g
Overview
This device is a high-voltage, high-speed power MOSFET/IGBT high- and low-side gate driver IC featuring two independent channels. It integrates high- and low-side UVLO, overvoltage clamp, and other protection circuits, with high-current pulse output capability. Logic inputs are compatible with CMOS or LSTTL logic output levels as low as 3.3V, peak output current reaches up to 4.3A, and the floating channel supports a maximum operating voltage of 100V. Suitable for driving N-channel high-voltage power MOSFETs/IGBTs and similar devices.
Applications
- Telecom and data communication power supplies
- Half-bridge converters
- Push-pull converters
- High-voltage synchronous buck converters
- Motor control
- Electric power steering systems
- Class D audio amplifiers
Key features
- Bootstrap-operated floating channel
- Maximum operating voltage up to 100V
- Compatible with 3.3V and 5V input logic
- dV/dt immunity up to ±50 V/nsec
- Vs negative voltage tolerance down to -9V
- High- and low-side UVLO
- High-side UVLO positive threshold 5.1V
- High-side UVLO negative threshold 3.95V
- Low-side UVLO positive threshold 5V
- Low-side UVLO negative threshold 3.6V
- Propagation delay: Ton/Toff = 120ns/120ns
- Matched propagation delay for high and low side
- Drive current capability: source/sink = 4.3A/4.3A
- RoHS-compliant SOP8 package
