NCEDatasheet (PDF)

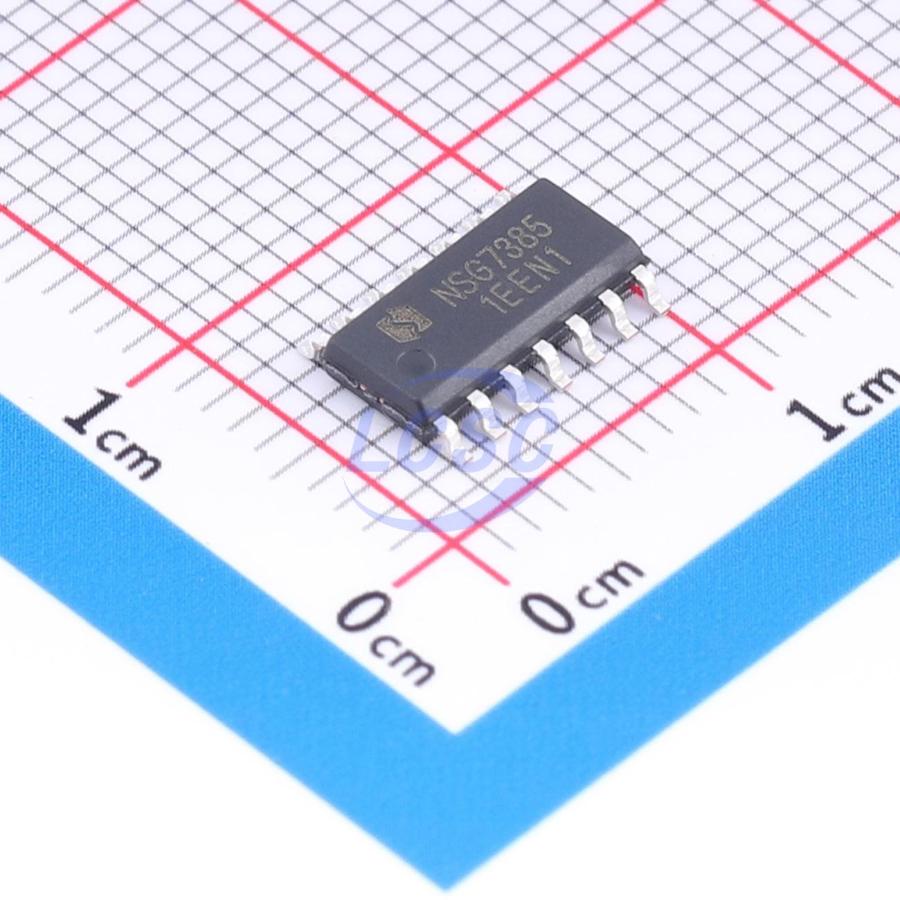

NSG7385
10V~20V 650mA 350mA SOP-14 Gate Drivers
SOP-14RoHSActive
- Manufacturer
- NCE
- Manufacturer part #
- NSG7385
- Store part #
- C53436472
- Package / case
- SOP-14
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C53436472
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹235.90 | ₹235.90 |
| 10+ | ₹198.61 | ₹1,986.10 |
| 30+ | ₹178.22 | ₹5,346.60 |
| 100+ | ₹155.24 | ₹15,524.00 |
| 500+ | ₹144.84 | ₹72,420.00 |
| 1,000+ | ₹140.29 | ₹1,40,290.00 |
1 × ₹235.90
₹235.90
excl. GST
₹278.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NSG7385
₹235.90 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Quiescent Current
- 240uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- High Side
- Current - Output Low(IOL)
- 650mA
- Rise Time
- 50ns
- Fall Time
- 30ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 350mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.374 g
Overview
The NSG7385 is a high-voltage, high-speed power MOSFET and IGBT gate driver IC. It integrates two independent high-side driver channels with logic inputs compatible with CMOS or LSTTL logic output levels as low as 3.3V. The floating channels support high-side N-channel power MOSFET driving, with a maximum floating supply voltage of 700V. Available in SOP14 package, it operates over a temperature range of -40℃ to 125℃.
Applications
- Motor Control
- Air Conditioner/Washing Machine
- General-Purpose Inverter
- Inverter Drive
Key features
- Bootstrap-operated floating high-side channel
- Maximum operating voltage up to +700V
- Compatible with 3.3V, 5V, and 15V input logic
- dVs/dt immunity up to ±50V/ns
- Vs negative bias capability down to -9V
- Integrated VDD/VBS UVLO with positive threshold 8.9V and negative threshold 8.2V
- Propagation delay characteristics: Ton/Toff = 130ns/130ns
- Wide temperature range: -40℃ to 125℃
- Output stage source/sink current capability: 350mA/650mA
- RoHS compliant
