WXNSICDatasheet (PDF)

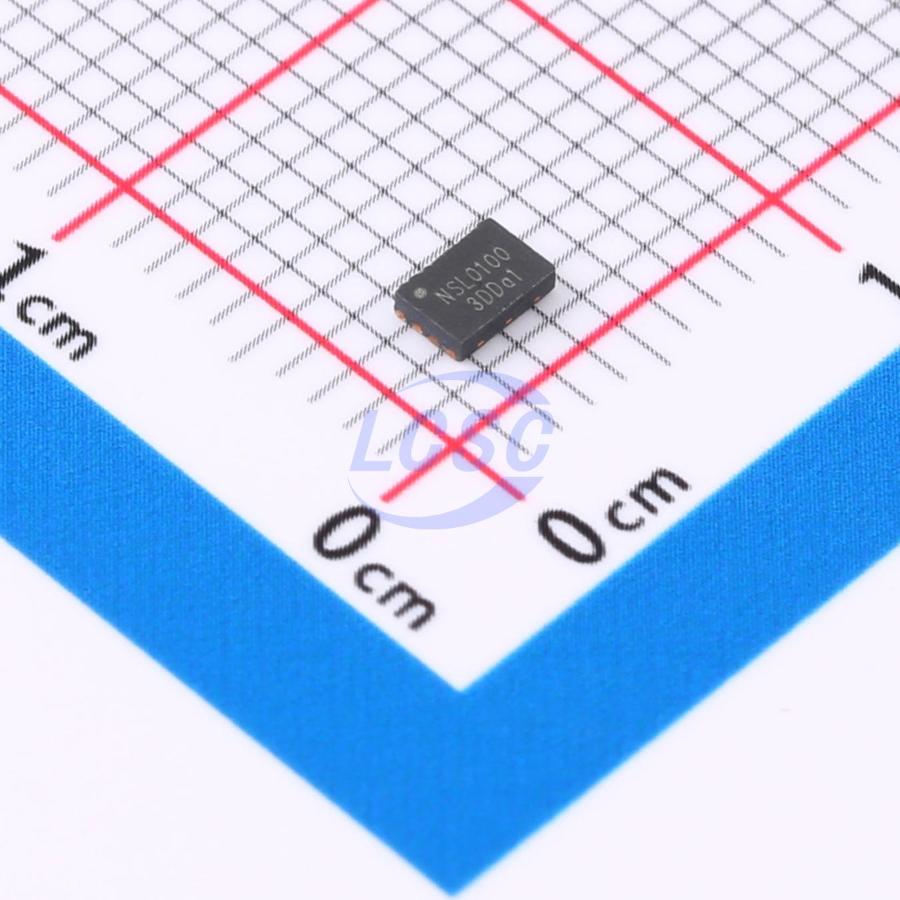

NSL0100
Lithium Battery 650mA DFN-8(2x3) Battery Management RoHS
DFN-8(2x3)ROHS CompliantActive
Pneumatic control chip integrated with microphone sensor
- Manufacturer
- WXNSIC
- Manufacturer part #
- NSL0100
- Store part #
- C49023247
- Package / case
- DFN-8(2x3)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,920 in stock
#C49023247
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.82 | ₹64.10 |
| 50+ | ₹10.07 | ₹503.50 |
| 150+ | ₹8.69 | ₹1,303.50 |
| 500+ | ₹7.66 | ₹3,830.00 |
| 3,000+ | ₹6.83 | ₹20,490.00 |
| 6,000+ | ₹6.42 | ₹38,520.00 |
5 × ₹12.82
₹64.10
excl. GST
₹75.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NSL0100
₹64.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 2uA
- 0V Battery Charge
- Not supported
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.2V~5.5V
- Features
- Trickle charging;Constant current charging;Constant voltage charging;Overcurrent Protection;Short-Circuit Protection;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 650mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.07 g
Overview
Key features
- Microphone direct input support
- Integrated Li-ion battery trickle, constant current, and constant voltage charging management
- Constant current charging at 650mA
- Full charge voltage 4.2V, accuracy ±50mV
- Integrated 7A discharge MOS switch
- Only 2μA battery consumption when charging input is absent
- Integrated short-circuit protection
- Integrated under-voltage protection
- Integrated over-temperature protection
- Integrated fast-response discharge over-current protection
- Rich LED status indication
- Dedicated ASIC design
- DFN-8 package
