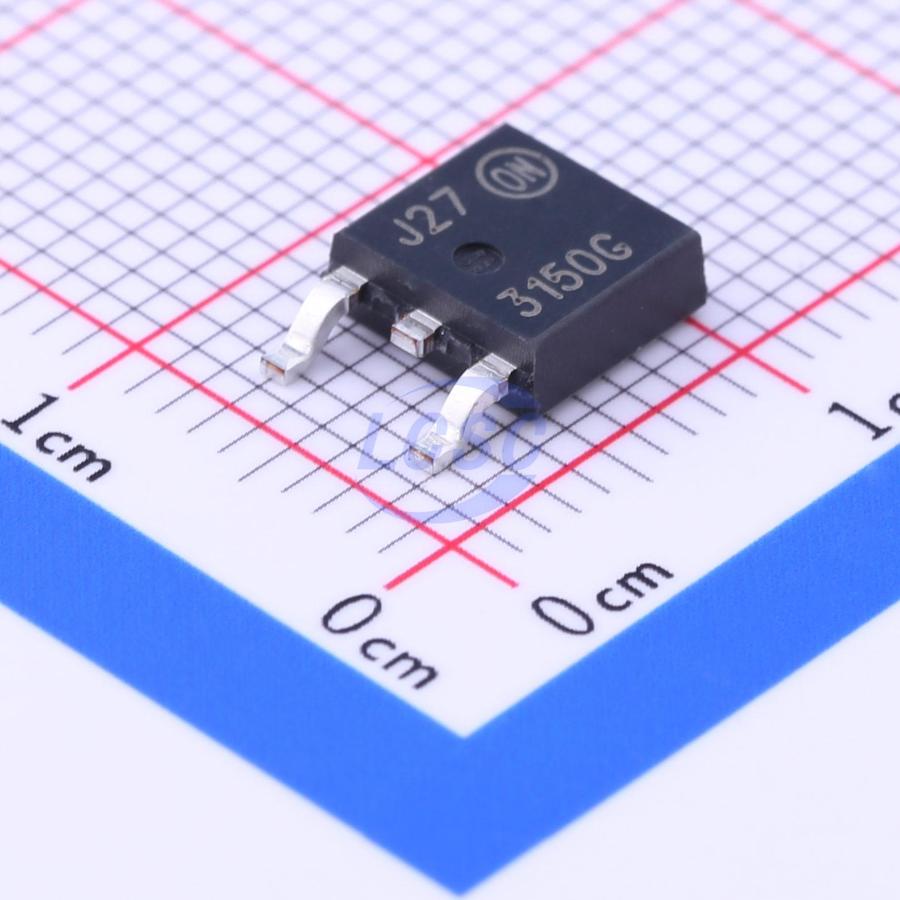

NTD3055-150T4G
N-Channel 60V 9A 28.8W Surface Mount DPAK
DPAKROHS3 CompliantActive
MOSFET N-CH 60V 9A DPAK
- Manufacturer
- onsemi
- Manufacturer part #
- NTD3055-150T4G
- Store part #
- C242413
- Package / case
- DPAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C242413
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹207.50 | ₹207.50 |
| 10+ | ₹179.53 | ₹1,795.30 |
| 30+ | ₹163.92 | ₹4,917.60 |
| 100+ | ₹146.58 | ₹14,658.00 |
| 500+ | ₹138.77 | ₹69,385.00 |
| 1,000+ | ₹135.30 | ₹1,35,300.00 |
1 × ₹207.50
₹207.50
excl. GST
₹244.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NTD3055-150T4G
₹207.50 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 100pF
- Ciss-Input Capacitance
- 280pF
- Pd - Power Dissipation
- 28.8W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 9A
- Reverse Transfer Capacitance (Crss)
- 40pF
- RDS(on)
- 150mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 15nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.438 g
Overview
Designed for low voltage, high speed switching applications in power supplies, converters and power motor controls and bridge circuits.
Applications
- Power Supplies
- Converters
- Power Motor Controls
- Bridge Circuits
Key features
- NVD Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTD3055L170T4G#C236234onsemi · DPAK | onsemi | DPAK | 13 | ₹125.87 · 13 in stock | View |
 | YJD45G10B#C919612YANGJIE · TO-252 | YANGJIE | TO-252 | 1,010 | ₹43.45 · 1,010 in stock | View |
 | IPD78CN10NG#C3282858Infineon · TO-252-3 | Infineon | TO-252-3 | 119 | ₹86.52 · 119 in stock | View |
 | 15N10#C2939004KUU · TO-252 | KUU | TO-252 | 395 | ₹16.17 · 395 in stock | View |
 | FDD120AN15A0#C157495onsemi · TO-252(DPAK) | onsemi | TO-252(DPAK) | 9 | ₹166.58 · 9 in stock | View |
