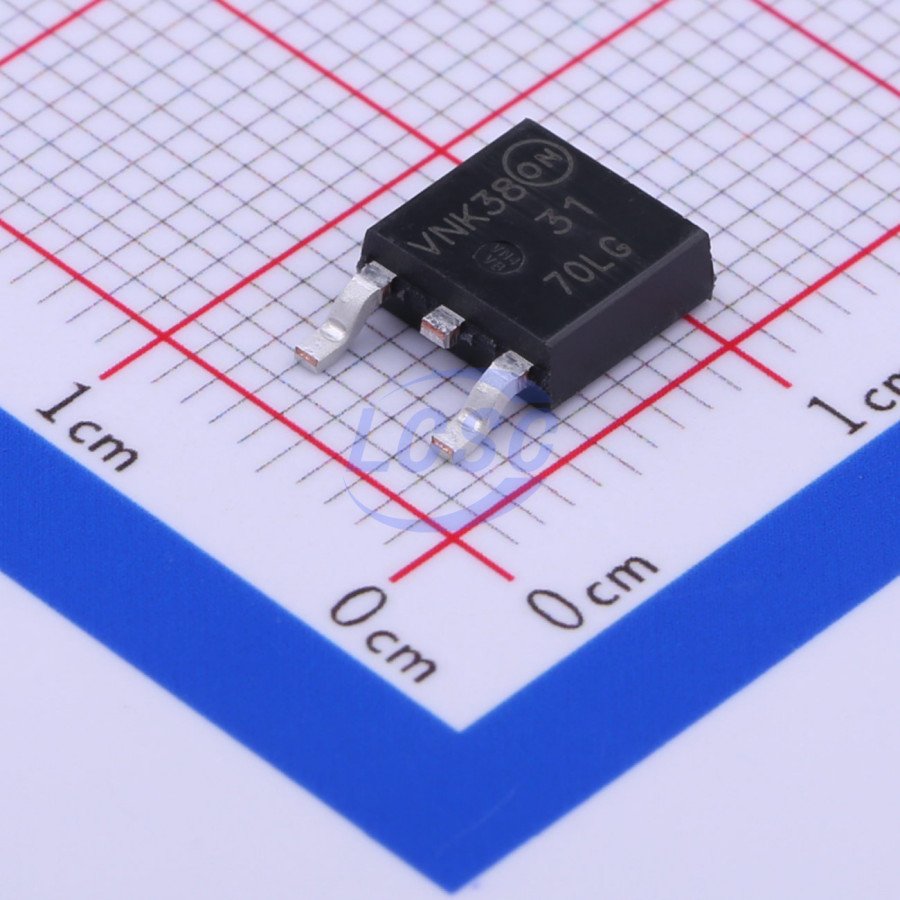

NTD3055L170T4G
N-Channel 60V 9A 28.5W Surface Mount DPAK
DPAKRoHSDiscontinued
MOSFET N-CH 60V 9A DPAK
- Manufacturer
- onsemi
- Manufacturer part #
- NTD3055L170T4G
- Store part #
- C236234
- Package / case
- DPAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13 in stock
#C236234
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹125.87 | ₹125.87 |
| 10+ | ₹107.73 | ₹1,077.30 |
| 30+ | ₹98.67 | ₹2,960.10 |
| 100+ | ₹89.59 | ₹8,959.00 |
| 500+ | ₹78.59 | ₹39,295.00 |
| 1,000+ | ₹75.99 | ₹75,990.00 |
1 × ₹125.87
₹125.87
excl. GST
₹148.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NTD3055L170T4G
₹125.87 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 100pF
- Ciss-Input Capacitance
- 275pF
- Pd - Power Dissipation
- 28.5W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 9A
- Reverse Transfer Capacitance (Crss)
- 42pF
- RDS(on)
- 170mΩ@5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 4.7nC@5V
- Vgs
- ±15V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.085 g
Overview
Designed for low voltage, high speed switching applications in power supplies, converters and power motor controls and bridge circuits.
Applications
- Power Supplies
- Converters
- Power Motor Controls
- Bridge Circuits
Key features
- NVD Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NVD3055L170T4G-VF01#C887721onsemi · TO-252(DPAK) | onsemi | TO-252(DPAK) | 70 | ₹100.91 · 70 in stock | View |
 | VBE1695#C416259VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 155 | ₹53.61 · 155 in stock | View |
 | TPNTD3055L104T4G#C5350902TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 2,585 | ₹26.61 · 2,585 in stock | View |
 | NTD3055-150T4G#C242413onsemi · DPAK | onsemi | DPAK | 100 | ₹207.50 · 100 in stock | View |
 | IRLR120NTRPBF#C2594Infineon · DPAK(TO-252AA) | Infineon | DPAK(TO-252AA) | 1,03,335 | ₹42.16 · 1,03,335 in stock | View |
