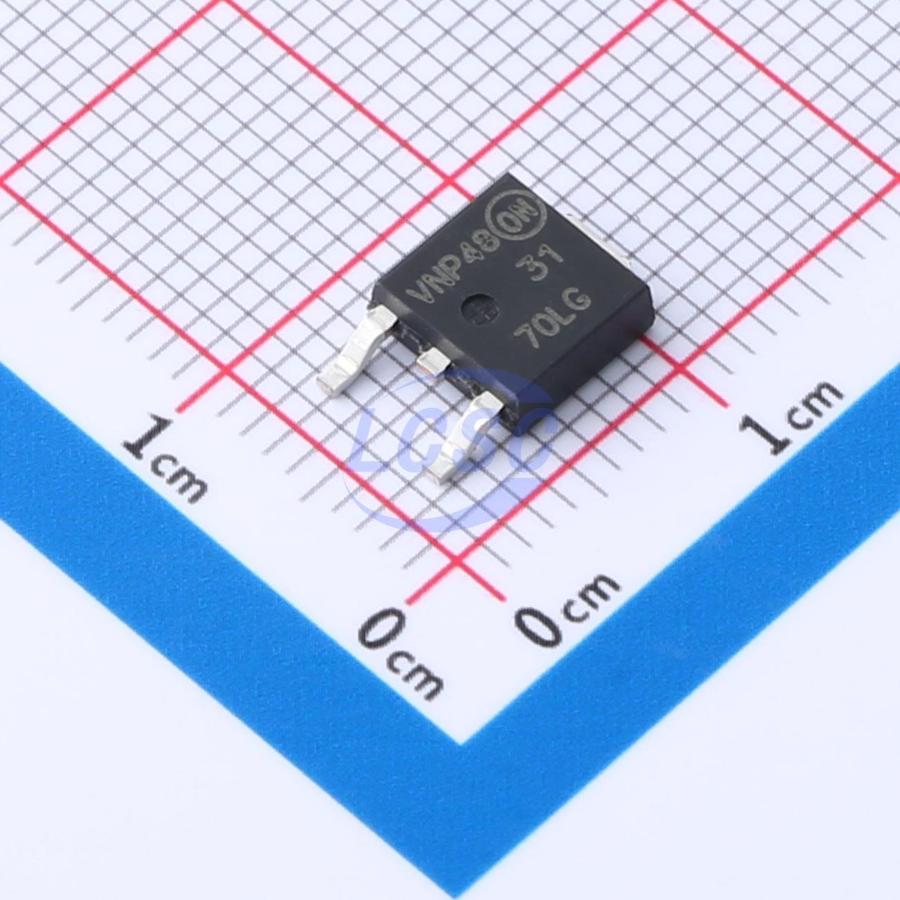

NVD3055L170T4G-VF01
N-Channel 60V 9A 28.5W Surface Mount TO-252(DPAK)
TO-252(DPAK)ROHS3 CompliantDiscontinued
MOSFET N-CH 60V 9A TO-252(DPAK)
- Manufacturer
- onsemi
- Manufacturer part #
- NVD3055L170T4G-VF01
- Store part #
- C887721
- Package / case
- TO-252(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C887721
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹100.91 | ₹100.91 |
| 10+ | ₹82.20 | ₹822.00 |
| 30+ | ₹73.07 | ₹2,192.10 |
| 100+ | ₹63.72 | ₹6,372.00 |
| 500+ | ₹58.07 | ₹29,035.00 |
| 1,000+ | ₹55.24 | ₹55,240.00 |
1 × ₹100.91
₹100.91
excl. GST
₹119.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NVD3055L170T4G-VF01
₹100.91 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 70pF
- Ciss-Input Capacitance
- 275pF
- Pd - Power Dissipation
- 28.5W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 9A
- Reverse Transfer Capacitance (Crss)
- 42pF
- RDS(on)
- 170mΩ@5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 10nC@5V
- Vgs
- ±15V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.379 g
Overview
Designed for low voltage, high speed switching applications in power supplies, converters and power motor controls and bridge circuits.
Applications
- Power Supplies
- Converters
- Power Motor Controls
- Bridge Circuits
Key features
- NVD Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These are Pb−Free Devices
