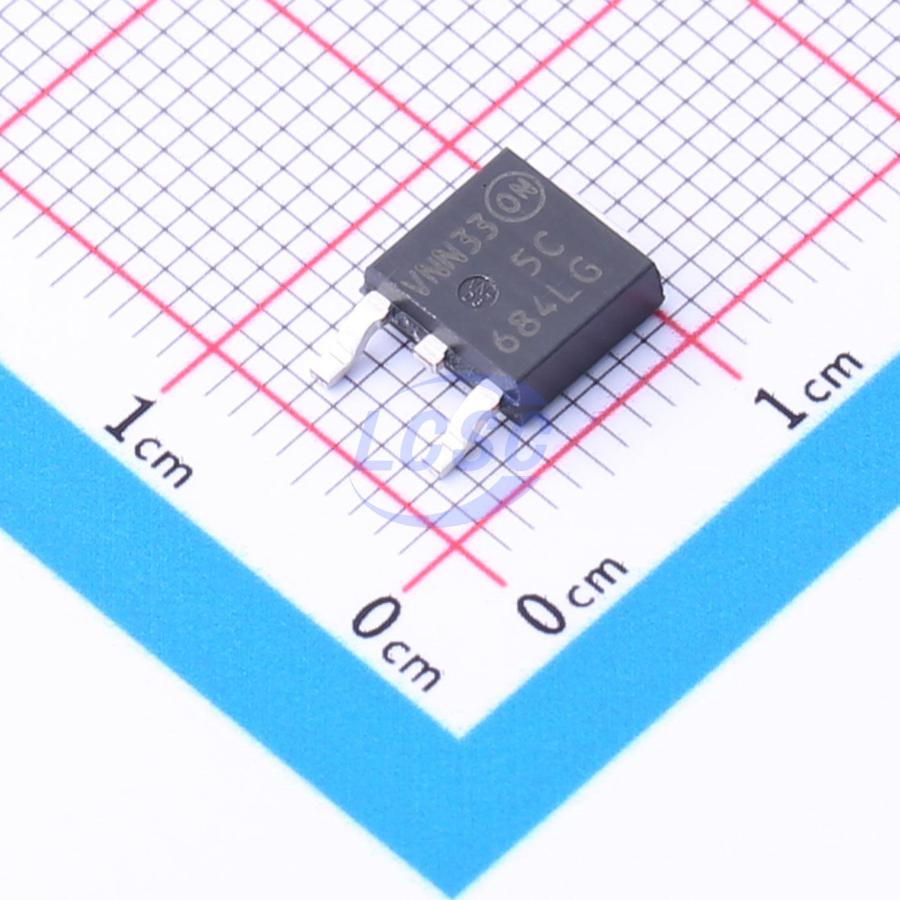

NVD5C684NLT4G
N-Channel Surface Mount DPAK
DPAKROHS3 CompliantActive
MOSFET N-CH DPAK
- Manufacturer
- onsemi
- Manufacturer part #
- NVD5C684NLT4G
- Store part #
- C236252
- Package / case
- DPAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
65 in stock
#C236252
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹243.48 | ₹243.48 |
| 10+ | ₹207.94 | ₹2,079.40 |
| 30+ | ₹185.60 | ₹5,568.00 |
| 100+ | ₹147.01 | ₹14,701.00 |
| 500+ | ₹136.81 | ₹68,405.00 |
| 1,000+ | ₹132.26 | ₹1,32,260.00 |
1 × ₹243.48
₹243.48
excl. GST
₹287.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NVD5C684NLT4G
₹243.48 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 300pF
- Current - Continuous Drain(Id)
- 38A
- Ciss-Input Capacitance
- 700pF
- Pd - Power Dissipation
- 27W
- Reverse Transfer Capacitance (Crss)
- 13pF
- RDS(on)
- 16.5mΩ@10V;24.3mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 9.6nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.444 g
Overview
60N06 utilizes advanced trench technology to deliver excellent drain-to-source on-resistance (RDS(ON)) and low gate charge, suitable for a wide range of applications.
Applications
- Power switch
- DC/DC converter
Key features
- Low R<sub>DS(on)</sub> for minimized conduction losses
- Low Q<sub>G</sub> and capacitance for minimized gate drive losses
- AEC-Q101 qualified, PPAP documentation available
- Lead-free, halogen-free/BFR-free, RoHS compliant
