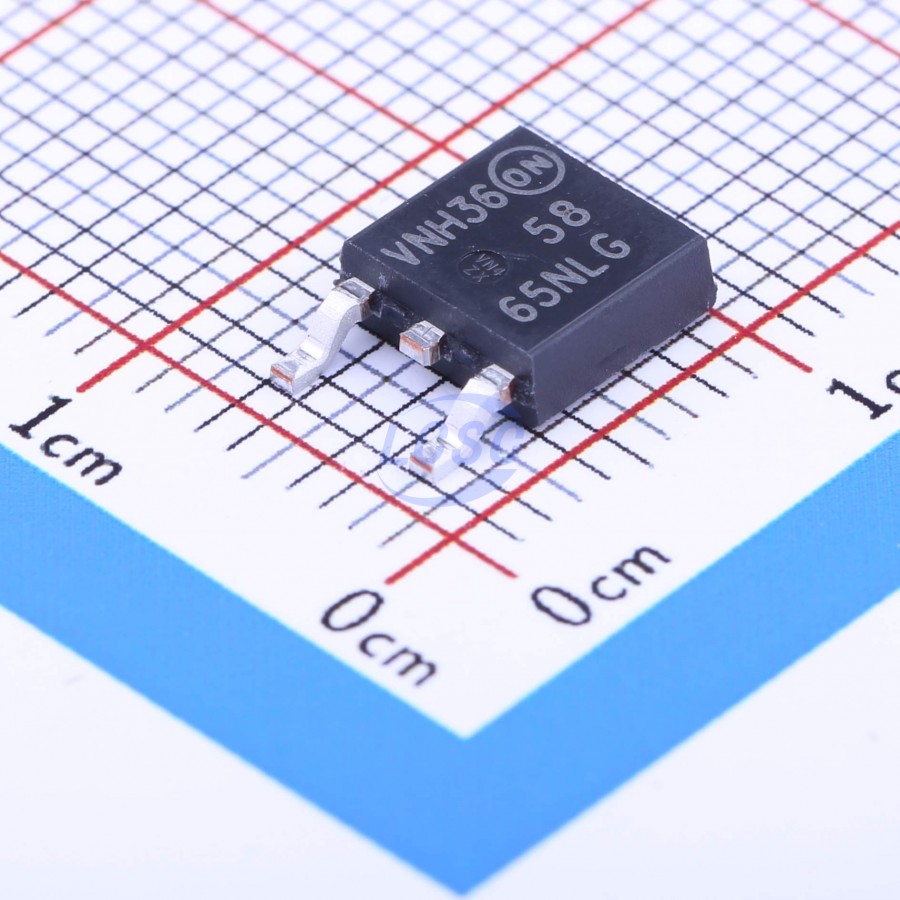

NTD5865NLT4G
N-Channel 60V 46A 71W Surface Mount DPAK
DPAKROHS3 CompliantActive
MOSFET N-CH 60V 46A DPAK
- Manufacturer
- onsemi
- Manufacturer part #
- NTD5865NLT4G
- Store part #
- C145546
- Package / case
- DPAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
960 in stock
#C145546
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹221.32 | ₹221.32 |
| 10+ | ₹184.84 | ₹1,848.40 |
| 30+ | ₹164.86 | ₹4,945.80 |
| 100+ | ₹142.26 | ₹14,226.00 |
| 500+ | ₹120.98 | ₹60,490.00 |
| 1,000+ | ₹116.42 | ₹1,16,420.00 |
1 × ₹221.32
₹221.32
excl. GST
₹261.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NTD5865NLT4G
₹221.32 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 137pF
- Ciss-Input Capacitance
- 1.4nF
- Pd - Power Dissipation
- 71W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 46A
- Reverse Transfer Capacitance (Crss)
- 95pF
- RDS(on)
- 19mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 29nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.438 g
Overview
Key features
- Low Gate Charge
- Fast Switching
- High Current Capability
- 100% Avalanche Tested
- These Devices are Pb−Free, Halogen Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SVD5865NLT4G#C889915onsemi · TO-252(DPAK) | onsemi | TO-252(DPAK) | 286 | ₹125.61 · 286 in stock | View |
 | NTD5865NLT4G(UMW)#C18214395UMW · TO-252 | UMW | TO-252 | 2,215 | ₹29.48 · 2,215 in stock | View |
 | SP60N12GTH#C22466778Siliup · TO-252 | Siliup | TO-252 | 2,360 | ₹15.86 · 2,360 in stock | View |
 | DOD50N06#C36499183DOINGTER · TO-252 | DOINGTER | TO-252 | 11,965 | ₹17.38 · 11,965 in stock | View |
 | SP60N15HTH#C41354979Siliup · TO-252 | Siliup | TO-252 | 240 | ₹12.78 · 240 in stock | View |
