onsemiDatasheet (PDF)

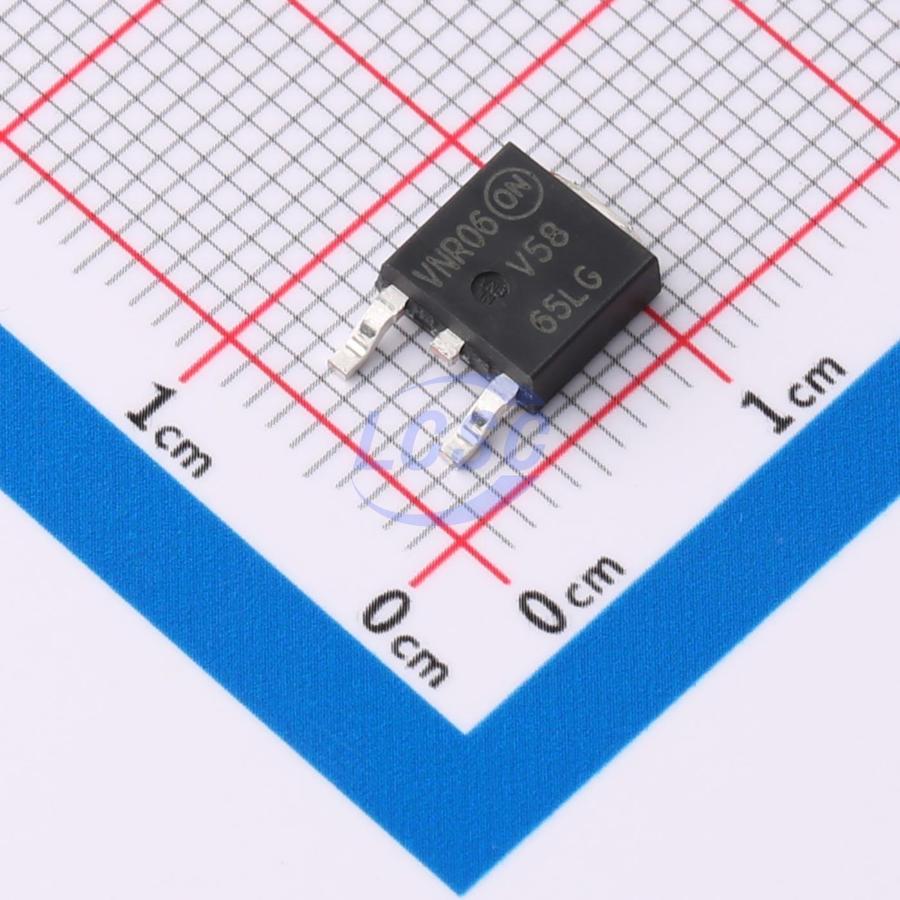

SVD5865NLT4G
60V 46A 71W 13mΩ@10V 1 N-channel N-Channel TO-252(DPAK) Single FETs, MOSFETs RoHS
TO-252(DPAK)ROHS3 CompliantActive
Power MosFET 60 V 46 A 16 mΩ Single N-Channel
- Manufacturer
- onsemi
- Manufacturer part #
- SVD5865NLT4G
- Store part #
- C889915
- Package / case
- TO-252(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
286 in stock
#C889915
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹125.61 | ₹125.61 |
| 10+ | ₹102.53 | ₹1,025.30 |
| 30+ | ₹90.78 | ₹2,723.40 |
| 100+ | ₹79.25 | ₹7,925.00 |
| 500+ | ₹72.28 | ₹36,140.00 |
| 1,000+ | ₹68.80 | ₹68,800.00 |
1 × ₹125.61
₹125.61
excl. GST
₹148.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SVD5865NLT4G
₹125.61 for 1 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+175℃
- Output Capacitance(Coss)
- 137pF
- Current - Continuous Drain(Id)
- 46A
- Ciss-Input Capacitance
- 1.4nF
- Pd - Power Dissipation
- 71W
- Reverse Transfer Capacitance (Crss)
- 95pF
- RDS(on)
- 13mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 29nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.455 g
Overview
Key features
- Low RDS(on) to Minimize Conduction Losses
- High Current Capability
- Avalanche Energy Specified
- AEC−Q101 Qualified
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTD5865NLT4G(UMW)#C18214395UMW · TO-252 | UMW | TO-252 | 2,215 | ₹29.48 · 2,215 in stock | View |
 | NTD5865NLT4G#C145546onsemi · DPAK | onsemi | DPAK | 960 | ₹221.32 · 960 in stock | View |
 | AG096FPD3HRBTL-HXY#C54582567HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 48 | ₹150.24 · 48 in stock | View |
 | DI040N10D1-HXY#C54582589HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 47 | ₹84.47 · 47 in stock | View |
 | IPD16CN10NG-HXY#C54582591HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 47 | ₹103.60 · 47 in stock | View |
