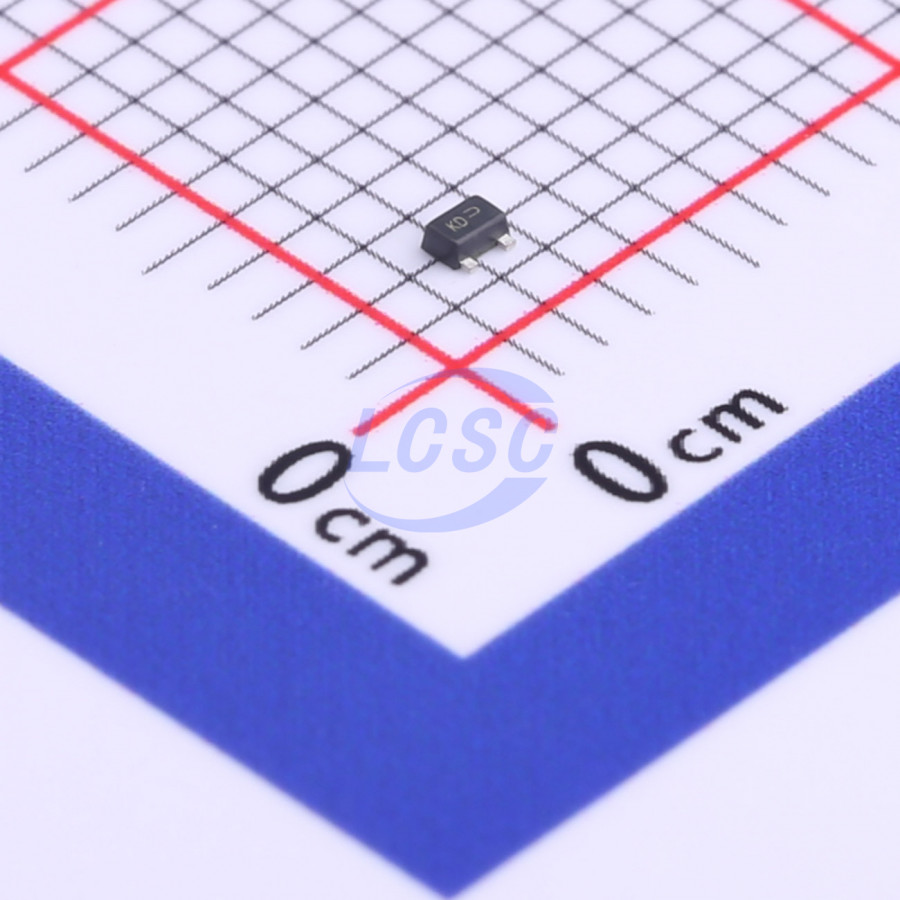

NTK3139PT1G
P-Channel 20V 780mA 450mW Surface Mount SOT-723
SOT-723ROHS3 CompliantActive
MOSFET P-CH 20V 780mA SOT-723
- Manufacturer
- onsemi
- Manufacturer part #
- NTK3139PT1G
- Store part #
- C236246
- Package / case
- SOT-723
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,955 in stock
#C236246
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.15 | ₹80.75 |
| 50+ | ₹12.59 | ₹629.50 |
| 150+ | ₹10.81 | ₹1,621.50 |
| 500+ | ₹9.47 | ₹4,735.00 |
| 2,500+ | ₹8.41 | ₹21,025.00 |
| 4,000+ | ₹7.87 | ₹31,480.00 |
5 × ₹16.15
₹80.75
excl. GST
₹95.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NTK3139PT1G
₹80.75 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 25pF
- Ciss-Input Capacitance
- 170pF
- Pd - Power Dissipation
- 450mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 780mA
- Reverse Transfer Capacitance (Crss)
- 15pF
- RDS(on)
- 480mΩ@4.5V
- Number
- 1 P-Channel
- Vgs
- ±6V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.02 g
Overview
These miniature surface-mount MOSFETs feature low on-state drain-source resistance (RDS(on)), ensuring minimal power dissipation and energy savings, making them ideal for space-constrained power management circuits.
Applications
- Load/Power Switching
- Interfacing, Logic Switching
- Battery Management for Ultra Small Portable Electronics
Key features
- P−channel Switch with Low RDS(on)
- 44% Smaller Footprint and 38% Thinner than SC−89
- Low Threshold Levels Allowing 1.5 V RDS(on) Rating
- Operated at Low Logic Level Gate Drive
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP2004KT7#C41354945Siliup · SOT-723 | Siliup | SOT-723 | 33,150 | ₹1.92 · 33,150 in stock | View |
 | HSSC3139#C700950HUASHUO · SOT-723 | HUASHUO | SOT-723 | 4,320 | ₹6.84 · 4,320 in stock | View |
 | PRZM002P02T2L#C2912537TECH PUBLIC · SOT-723 | TECH PUBLIC | SOT-723 | 14,520 | ₹4.27 · 14,520 in stock | View |
 | PNTK3139PT5G#C2912538TECH PUBLIC · SOT-723 | TECH PUBLIC | SOT-723 | 2,560 | ₹6.73 · 2,560 in stock | View |
 | PCJ3139K#C2912539TECH PUBLIC · SOT-723 | TECH PUBLIC | SOT-723 | 8,490 | ₹5.79 · 8,490 in stock | View |
