onsemiDatasheet (PDF)

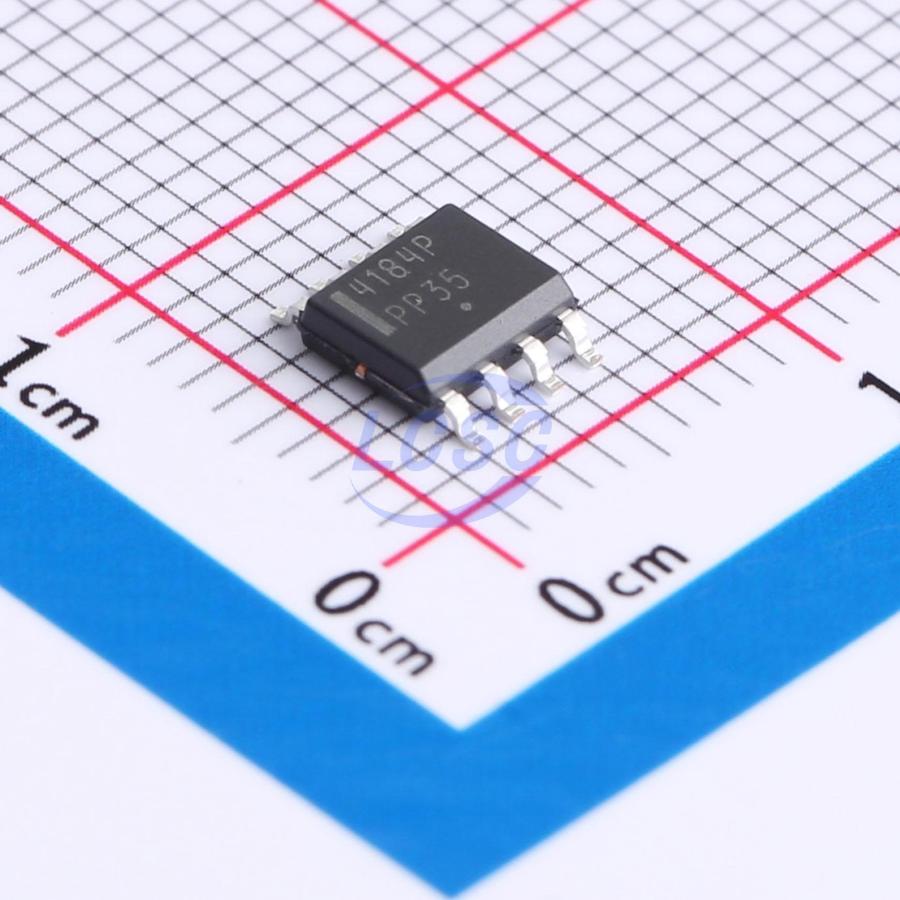

NTMD4184PFR2G
1.6W 30V 4A 95mΩ@10V 1 P-Channel P-Channel SOIC-8 Single FETs, MOSFETs RoHS
SOIC-8ROHS3 CompliantActive
Power, Single, P-Channel MOSFET with Schottky Diode
- Manufacturer
- onsemi
- Manufacturer part #
- NTMD4184PFR2G
- Store part #
- C730375
- Package / case
- SOIC-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C730375
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹261.81 | ₹261.81 |
| 10+ | ₹223.69 | ₹2,236.90 |
| 30+ | ₹199.81 | ₹5,994.30 |
| 100+ | ₹175.52 | ₹17,552.00 |
| 500+ | ₹164.42 | ₹82,210.00 |
| 1,000+ | ₹159.82 | ₹1,59,820.00 |
1 × ₹261.81
₹261.81
excl. GST
₹308.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NTMD4184PFR2G
₹261.81 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 80pF
- Ciss-Input Capacitance
- 280pF
- Pd - Power Dissipation
- 1.6W
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 4A
- Reverse Transfer Capacitance (Crss)
- 52pF
- RDS(on)
- 95mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 5.8nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.32 g
Overview
Applications
- Disk Drives
- DC−DC Converters
- Printers
Key features
- FETKY Surface Mount Package Saves Board Space
- Independent Pin−Out for MOSFET and Schottky Allowing for Design Flexibility
- Low RDS(on) MOSFET and Low VF Schottky to Minimize Conduction Losses
- Optimized Gate Charge to Minimize Switching Losses
- This is a Pb−Free Device
