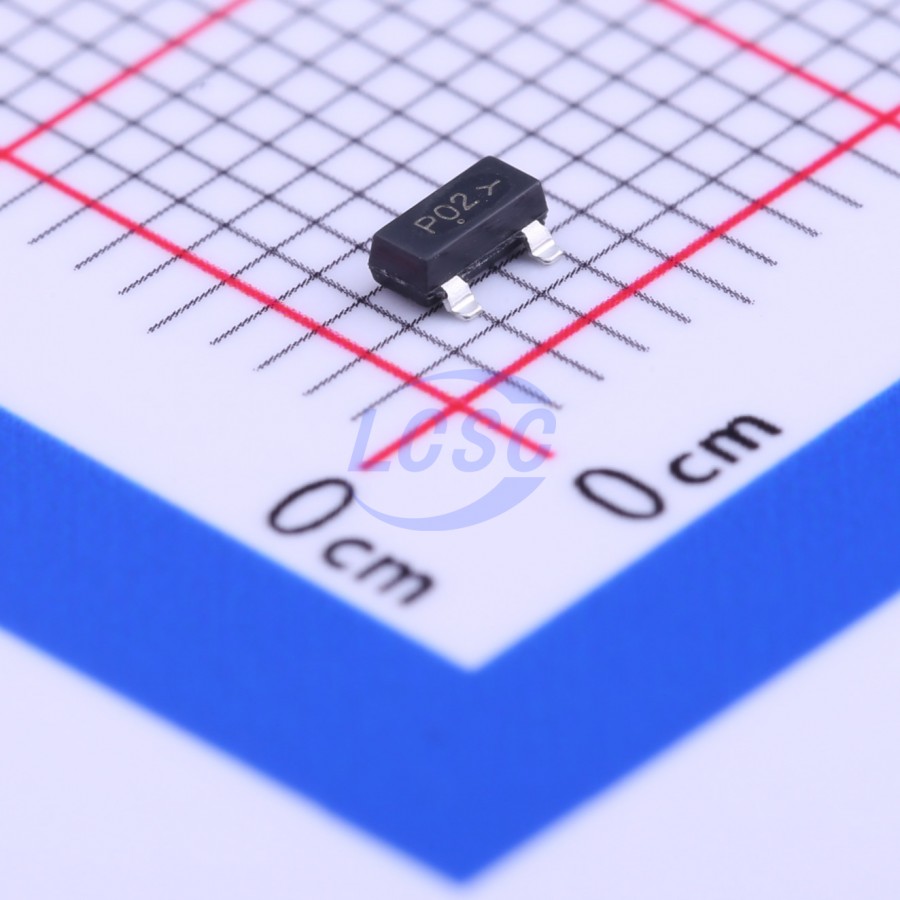

NTR1P02LT1G
P-Channel 20V 1.3A 400mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET P-CH 20V 1.3A SOT-23
- Manufacturer
- onsemi
- Manufacturer part #
- NTR1P02LT1G
- Store part #
- C146716
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
215 in stock
#C146716
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.72 | ₹103.60 |
| 50+ | ₹16.15 | ₹807.50 |
| 150+ | ₹13.87 | ₹2,080.50 |
| 500+ | ₹12.16 | ₹6,080.00 |
| 3,000+ | ₹10.78 | ₹32,340.00 |
| 6,000+ | ₹10.09 | ₹60,540.00 |
5 × ₹20.72
₹103.60
excl. GST
₹122.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NTR1P02LT1G
₹103.60 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 130pF
- Ciss-Input Capacitance
- 225pF
- Pd - Power Dissipation
- 400mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 1.3A
- Reverse Transfer Capacitance (Crss)
- 55pF
- RDS(on)
- 220mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 3.1nC@4.5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.25V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
These miniature surface-mount MOSFETs feature low R<sub>DS(ON)</sub>, ensuring minimal power dissipation and energy savings, making them ideal for space-constrained power management circuits.
Applications
- DC-DC Converter
- Power management for portable and battery-powered products (e.g., computers, printers, PCMCIA cards, mobile phones, and cordless phones)
Key features
- Low R<sub>DS(ON)</sub> improves efficiency and extends battery life
- Miniature SOT-23 surface mount package saves board space
- NVTR prefix for automotive and other applications requiring unique sourcing and controlled change requirements; AEC-Q101 compliant with PPAP capability
- Available in lead-free and halogen-free packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTR1P02LT3G#C896854onsemi · SOT-23 | onsemi | SOT-23 | 100 | ₹14.86 · 100 in stock | View |
 | IRLML2246TRPBF#C127272Infineon · SOT-23 | Infineon | SOT-23 | 735 | ₹28.72 · 735 in stock | View |
 | JTD3401A#C42443458JTD · SOT-23 | JTD | SOT-23 | 2,760 | ₹3.86 · 2,760 in stock | View |
 | SL2301#C251149Slkor · SOT-23 | Slkor | SOT-23 | 940 | ₹4.68 · 940 in stock | View |
 | KY2301H#C3029274KY · SOT-23 | KY | SOT-23 | 2,800 | ₹4.15 · 2,800 in stock | View |
