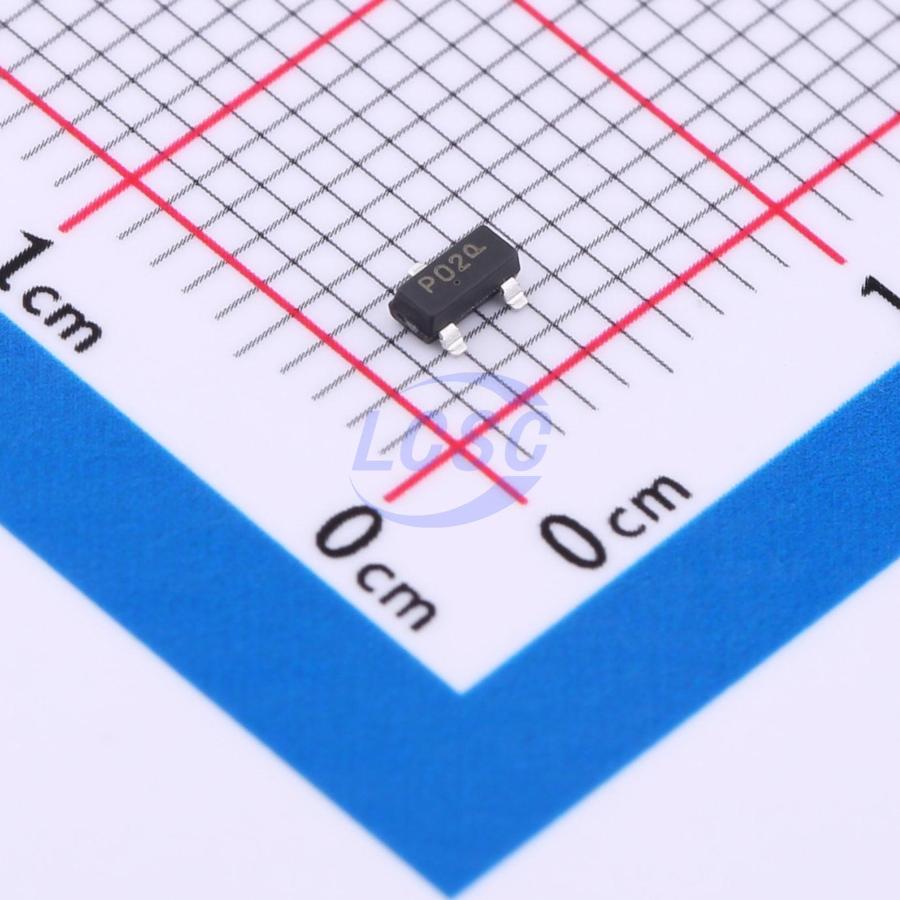

NTR1P02LT3G
P-Channel 20V 1.3A 400mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET P-CH 20V 1.3A SOT-23
- Manufacturer
- onsemi
- Manufacturer part #
- NTR1P02LT3G
- Store part #
- C896854
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C896854
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.86 | ₹74.30 |
| 50+ | ₹11.22 | ₹561.00 |
| 150+ | ₹9.39 | ₹1,408.50 |
| 500+ | ₹8.03 | ₹4,015.00 |
| 2,500+ | ₹6.73 | ₹16,825.00 |
| 5,000+ | ₹6.19 | ₹30,950.00 |
5 × ₹14.86
₹74.30
excl. GST
₹87.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
NTR1P02LT3G
₹74.30 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 130pF
- Ciss-Input Capacitance
- 225pF
- Pd - Power Dissipation
- 400mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 1.3A
- Reverse Transfer Capacitance (Crss)
- 55pF
- RDS(on)
- 220mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 5.5nC@4V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.25V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
These miniature surface-mount MOSFETs feature low R<sub>DS(ON)</sub>, ensuring minimal power dissipation and energy savings, making them ideal for space-constrained power management circuits.
Applications
- DC-DC converter
- Power management for portable and battery-powered products (e.g., computers, printers, PCMCIA cards, mobile phones, and cordless phones)
Key features
- Low RDS(ON) improves efficiency and extends battery life
- Compact SOT-23 SMT package saves board space
- NVTR prefix for automotive and other applications requiring unique sourcing and change control; AEC-Q101 compliant with PPAP documentation available
- Available in lead-free and halogen-free packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTR1P02LT1G#C146716onsemi · SOT-23 | onsemi | SOT-23 | 215 | ₹20.72 · 215 in stock | View |
 | KY2301H#C3029274KY · SOT-23 | KY | SOT-23 | 2,800 | ₹4.15 · 2,800 in stock | View |
 | NX2301P,215#C191273Nexperia · SOT-23 | Nexperia | SOT-23 | 73,640 | ₹11.35 · 73,640 in stock | View |
 | CJ2301-HF#C4944086Comchip · SOT-23 | Comchip | SOT-23 | 330 | ₹7.94 · 330 in stock | View |
 | WPM2341-MS#C2830123MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 2,970 | ₹11.50 · 2,970 in stock | View |
