HXY MOSFETDatasheet (PDF)

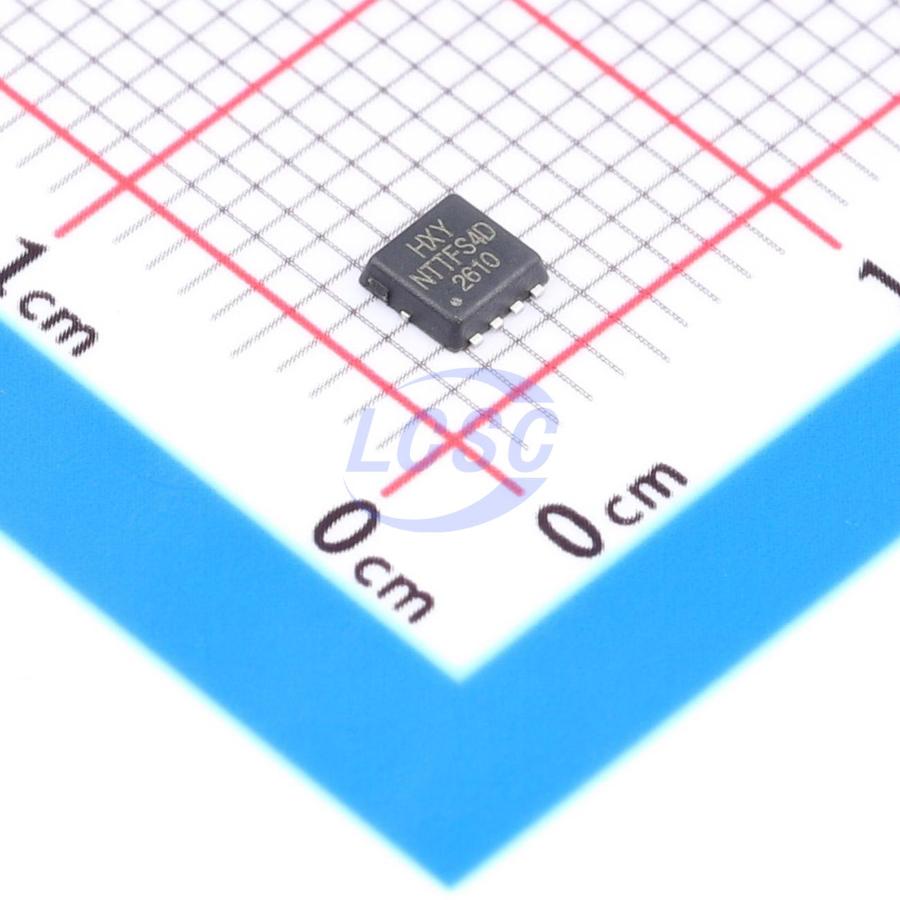

NTTFS4D9N04XMTAG-HXY
40V 70A 52W 4.2mΩ@10V 1 N-channel N-Channel DFN-8L(3x3) Single FETs, MOSFETs
DFN-8L(3x3)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- NTTFS4D9N04XMTAG-HXY
- Store part #
- C54582777
- Package / case
- DFN-8L(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C54582777
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.11 | ₹56.11 |
| 10+ | ₹44.93 | ₹449.30 |
| 30+ | ₹40.21 | ₹1,206.30 |
| 100+ | ₹34.19 | ₹3,419.00 |
| 500+ | ₹28.38 | ₹14,190.00 |
| 1,000+ | ₹26.66 | ₹26,660.00 |
1 × ₹56.11
₹56.11
excl. GST
₹66.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NTTFS4D9N04XMTAG-HXY
₹56.11 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 233pF
- Current - Continuous Drain(Id)
- 70A
- Ciss-Input Capacitance
- 2.8nF
- Pd - Power Dissipation
- 52W
- Reverse Transfer Capacitance (Crss)
- 152pF
- RDS(on)
- 4.2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 25nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.09 g
Overview
The NTTFS4D9N04XMTAG utilizes advanced trench technology to deliver excellent on-resistance (RDS(ON)), low gate charge, and operation at gate voltages as low as 4.5V. This device is suitable for battery protection or other switching applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- Drain-source voltage (VDS) = 40V, drain current (ID) = 70A
- On-resistance (RDS(ON)) < 5.5mΩ at gate-source voltage (VGS) = 10V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPZ40N04S5L4R8ATMA1-HXY#C54582767HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 38 | ₹81.89 · 38 in stock | View |
 | NVTFS5C460NLTAG-HXY#C54582769HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 48 | ₹119.08 · 48 in stock | View |
 | NTTFS004N04CTAG-HXY#C54582771HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 50 | ₹26.43 · 50 in stock | View |
 | NVTFWS004N04CTAG-HXY#C54582774HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 48 | ₹146.81 · 48 in stock | View |
 | NVTFS5C460NLWFTAG-HXY#C54582775HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 48 | ₹176.25 · 48 in stock | View |
