VBsemi ElecDatasheet (PDF)

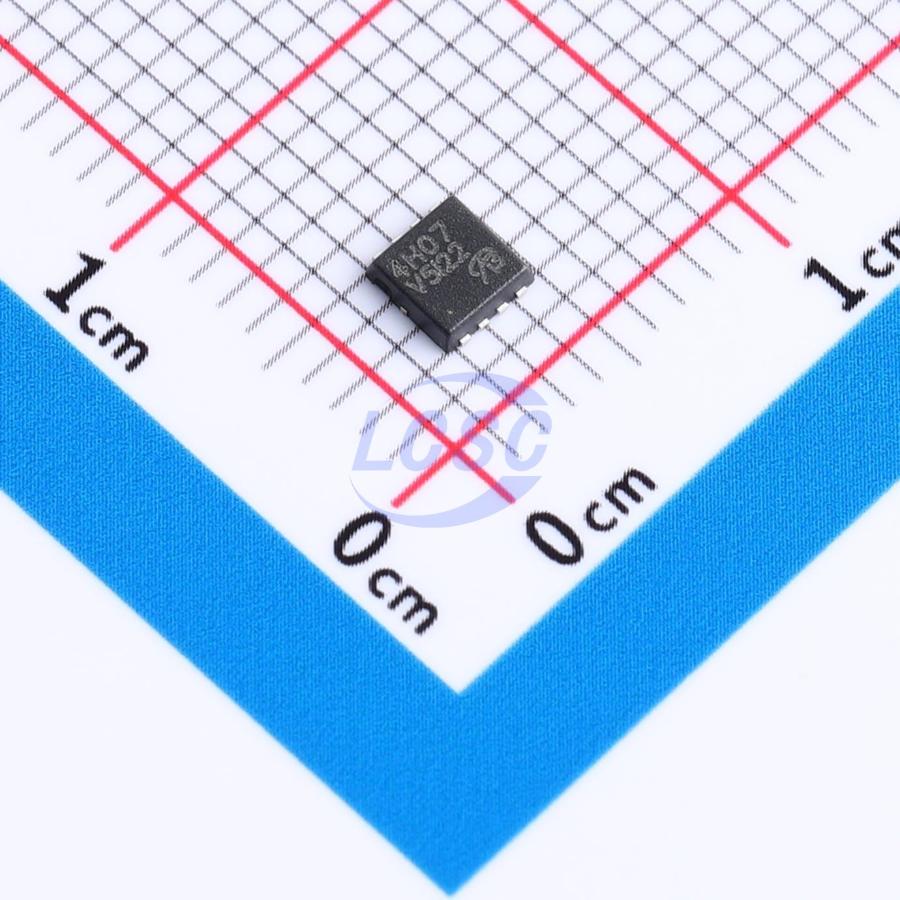

NTTFS4H07NTWG-VB
250W 20V 100A 2mΩ@10V 1 N-channel N-Channel DFN-8(3x3) Single FETs, MOSFETs
DFN-8(3x3)RoHSActive
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- NTTFS4H07NTWG-VB
- Store part #
- C52110076
- Package / case
- DFN-8(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C52110076
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹95.14 | ₹95.14 |
| 10+ | ₹78.37 | ₹783.70 |
| 30+ | ₹70.11 | ₹2,103.30 |
| 100+ | ₹61.84 | ₹6,184.00 |
| 500+ | ₹50.72 | ₹25,360.00 |
| 1,000+ | ₹48.33 | ₹48,330.00 |
1 × ₹95.14
₹95.14
excl. GST
₹112.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NTTFS4H07NTWG-VB
₹95.14 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.725nF
- Ciss-Input Capacitance
- 6.5nF
- Pd - Power Dissipation
- 250W
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 100A
- Reverse Transfer Capacitance (Crss)
- 970pF
- RDS(on)
- 2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 86nC
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.3 g
Overview
Applications
- OR gate
- Server
- DC/DC
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per EU directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDMC7570S-PC01-VB#C52109966VBsemi Elec · DFN-8(3x3) | VBsemi Elec | DFN-8(3x3) | 10 | ₹66.40 · 10 in stock | View |
 | NTTFS4H05NTWG-VB#C52110074VBsemi Elec · DFN-8(3x3) | VBsemi Elec | DFN-8(3x3) | 10 | ₹95.14 · 10 in stock | View |
 | NTTFS4H07NTAG-VB#C52110075VBsemi Elec · DFN-8(3x3) | VBsemi Elec | DFN-8(3x3) | 10 | ₹95.14 · 10 in stock | View |
 | DMN22M5UFG-13-VB#C47993964VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 10 | ₹116.25 · 10 in stock | View |
 | SISA26DN-T1-GE3-VB#C47993741VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 10 | ₹94.96 · 10 in stock | View |
