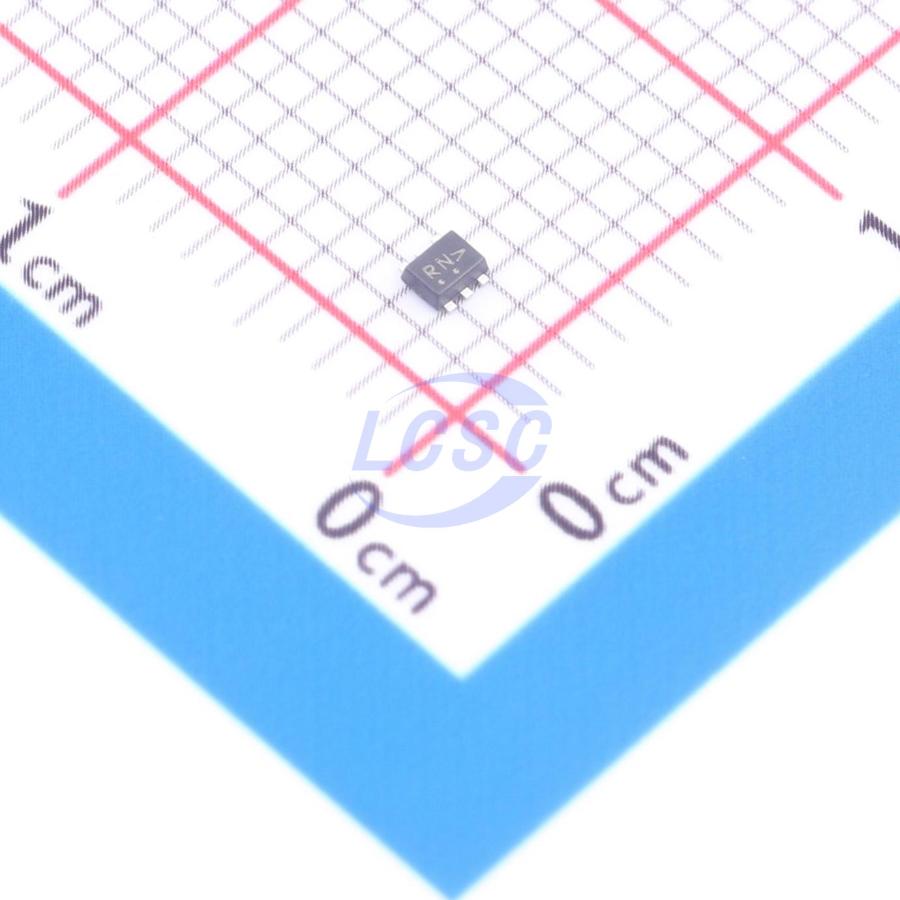

onsemi

NUP5120X6T2G

nan

SOT-563ROHS3 CompliantActive

Manufacturer: onsemi
Manufacturer part #: NUP5120X6T2G
Store part #: C274628
Package / case: SOT-563
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

585 in stock

#C274628

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
5+	₹17.87	₹89.35
50+	₹17.45	₹872.50
150+	₹17.16	₹2,574.00
500+	₹16.88	₹8,440.00

Quantity (min 5, multiples of 5)

5 × ₹17.87

₹89.35

excl. GST

₹105.43 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

NUP5120X6T2G

₹89.35 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Peak Pulse Power Dissipation (Ppp): 90W
Voltage - Breakdown: 6.2V
Number of Channels: 5
type: ESD
Reverse Leakage Current (Ir): 10nA
Reverse Stand-Off Voltage (Vrwm): 5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.494 g

Overview

This 5−line surge protection array is designed for application requiring surge protection capability. It is intended for use in over−transient voltage and ESD sensitive equipment such as cell phones, portables, computers, printers and other applications. This device features a monolithic common anode design which protects five independent lines in a single SOT−563 package.

Applications

Hand Held Portable Applications
Serial and Parallel Ports
Notebooks, Desktops, Servers

Key features

Protects up to 5 Lines in a Single SOT−563 Package
ESD Rating of Class 3B (Exceeding 8 kV) per Human Body Model and Class C (Exceeding 400 V) per Machine Model.
Compliance with IEC 61000−4−2 (ESD) 15 kV (Air), 8 kV (Contact)
This is a Pb−Free Device
