onsemiDatasheet (PDF)

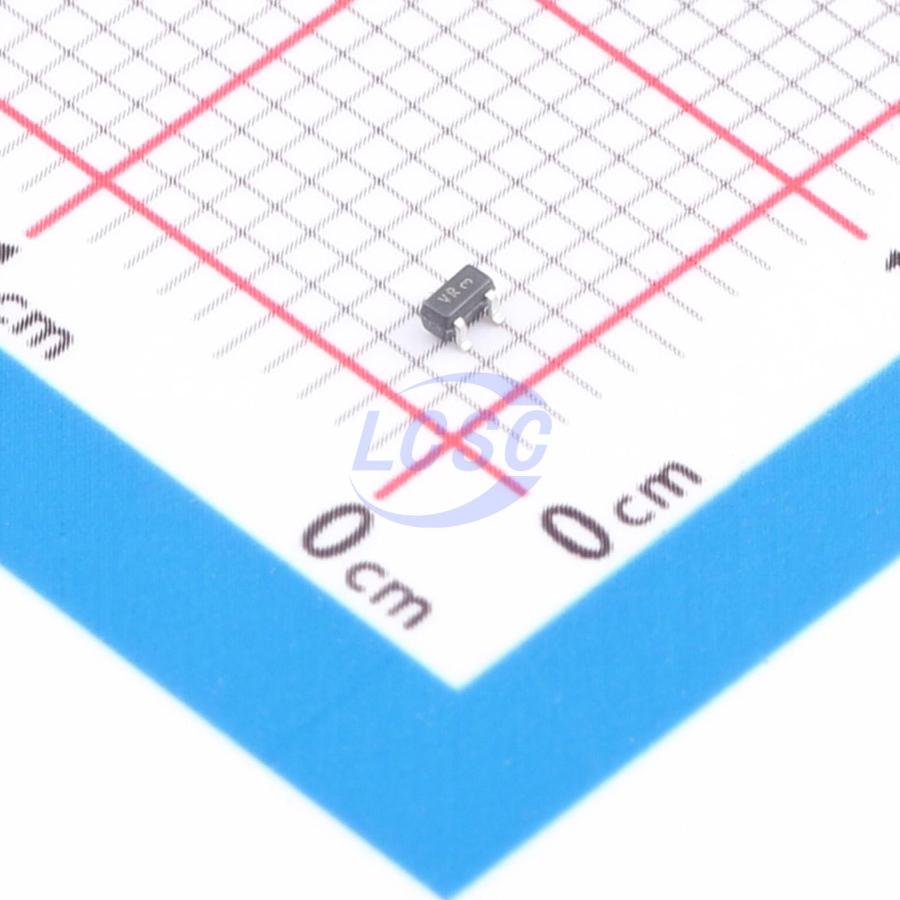

NVA4153NT1G
300mW 20V 915mA 127mΩ@4.5V 1 N-channel N-Channel SC-75-3 Single FETs, MOSFETs RoHS
SC-75-3ROHS CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NVA4153NT1G
- Store part #
- C5208928
- Package / case
- SC-75-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
38 in stock
#C5208928
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹197.10 | ₹197.10 |
| 10+ | ₹193.89 | ₹1,938.90 |
| 30+ | ₹191.73 | ₹5,751.90 |
| 100+ | ₹189.59 | ₹18,959.00 |
1 × ₹197.10
₹197.10
excl. GST
₹232.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NVA4153NT1G
₹197.10 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 16pF
- Ciss-Input Capacitance
- 110pF
- Pd - Power Dissipation
- 300mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 915mA
- Reverse Transfer Capacitance (Crss)
- 12pF
- RDS(on)
- 127mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 1.82nC@4.5V
- Vgs
- ±6V
- Gate Threshold Voltage (Vgs(th))
- 450mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.026 g
Overview
SUPERFET III MOSFETs are a new family of high-voltage super junction (SJ) MOSFETs utilizing charge balance technology to achieve excellent low on-resistance and low gate charge performance. This advanced technology is designed to minimize conduction losses, deliver superior switching performance, and withstand extremely high dv/dt rates. As a result, SUPERFET III MOSFETs are ideally suited for power supply systems where miniaturization and higher efficiency are required. The body diode reverse recovery performance of SUPERFET III FRFET MOSFETs has been optimized to eliminate additional components and improve system reliability. Furthermore, the D2PAK 7-pin package offers Kelvin sensing capability for higher switching speeds, enabling designers to reduce the overall application footprint.
Applications
- Load/power switch
- Power conversion circuit
- Battery management
- Portable devices such as mobile phones, PDAs, digital cameras, pagers, etc.
Key features
- Low on-resistance (R<sub>DS(on)</sub>) for improved system efficiency
- Low threshold voltage rated at 1.5 V
- Gate ESD protection
- NV prefix for automotive and other applications with unique traceability and change control requirements; AEC-Q101 qualified with PPAP documentation available
- Lead-free package available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NVE4153NT1G#C604543onsemi · SC-89 | onsemi | SC-89 | 2 | ₹182.92 · 2 in stock | View |
 | NTE4153NT1G#C79836onsemi · SC-89 | onsemi | SC-89 | 1,010 | ₹19.05 · 1,010 in stock | View |
 | NTA4153NT1G#C190020onsemi · SC-75(SOT-523) | onsemi | SC-75(SOT-523) | 5,810 | ₹11.97 · 5,810 in stock | View |
 | CJ4153#C62631JSCJ · SOT-523 | JSCJ | SOT-523 | 2,620 | ₹5.65 · 2,620 in stock | View |
 | H20N82R2#C55372648Huixin · SOT-523 | Huixin | SOT-523 | 3,000 | ₹10.24 · 3,000 in stock | View |
