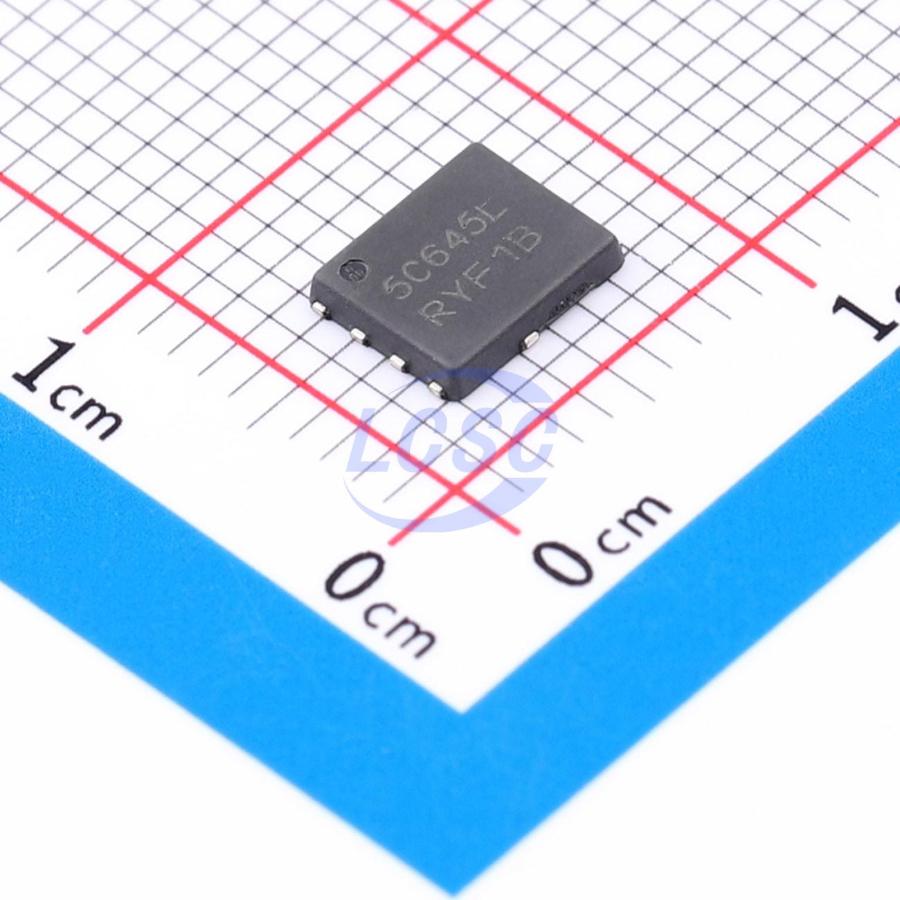

NVMFS5C645NLAFT1G
79W 60V 100A 3.3mΩ@10V 1 N-channel N-Channel DFN-5(5.9x4.9) Single FETs, MOSFETs RoHS
DFN-5(5.9x4.9)ROHS3 CompliantActive
MOSFET N-CH 60V 100A DFN-5(5.9x4.9)
- Manufacturer
- onsemi
- Manufacturer part #
- NVMFS5C645NLAFT1G
- Store part #
- C604613
- Package / case
- DFN-5(5.9x4.9)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23 in stock
#C604613
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹347.13 | ₹347.13 |
| 10+ | ₹307.15 | ₹3,071.50 |
| 30+ | ₹282.22 | ₹8,466.60 |
| 100+ | ₹256.42 | ₹25,642.00 |
| 500+ | ₹244.82 | ₹1,22,410.00 |
| 1,500+ | ₹239.87 | ₹3,59,805.00 |
1 × ₹347.13
₹347.13
excl. GST
₹409.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NVMFS5C645NLAFT1G
₹347.13 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 900pF
- Ciss-Input Capacitance
- 2.2nF
- Pd - Power Dissipation
- 79W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 100A
- Reverse Transfer Capacitance (Crss)
- 17pF
- RDS(on)
- 3.3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 16nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.282 g
Overview
Key features
- Compact 5x6 mm package for space-constrained designs
- Low on-resistance RDS(on) for minimized conduction losses
- Low gate charge QG and capacitance for minimized drive losses
- NVMFS5C645NLWF - solderable flank option for optical inspection
- AEC-Q101 qualified, PPAP documentation available
- Lead-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NVMFS5C646NLWFAFT1G#C900451onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 40 | ₹908.12 · 40 in stock | View |
 | NTMFS6H818NLT1G#C900317onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 20 | ₹362.95 · 20 in stock | View |
 | NVMFS6H800NWFT1G#C604622onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 20 | ₹964.37 · 20 in stock | View |
 | NVMFS6H801NT1G#C604623onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 41 | ₹426.85 · 41 in stock | View |
 | NVMFS6H801NLT1G#C900465onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 20 | ₹506.64 · 20 in stock | View |
