onsemiDatasheet (PDF)

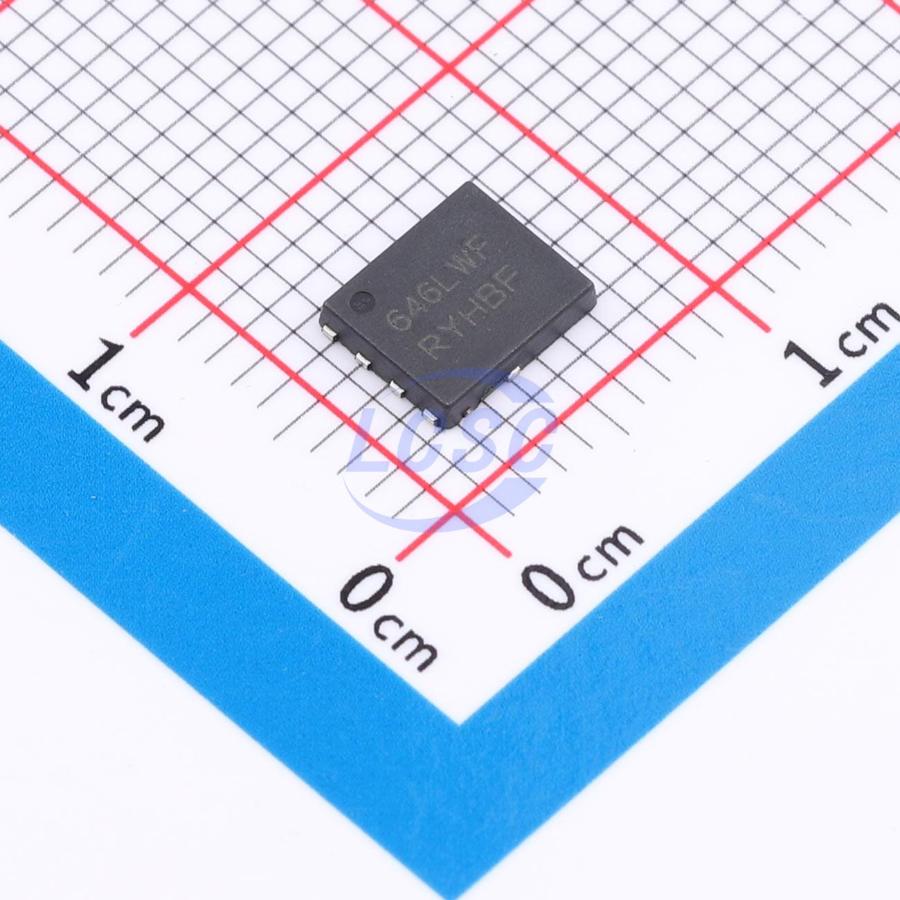

NVMFS5C646NLWFAFT1G
79W 60V 93A 4.7mΩ@10V 1 N-channel N-Channel DFN-5(5.9x4.9) Single FETs, MOSFETs RoHS
DFN-5(5.9x4.9)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NVMFS5C646NLWFAFT1G
- Store part #
- C900451
- Package / case
- DFN-5(5.9x4.9)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C900451
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹908.12 | ₹908.12 |
| 10+ | ₹807.31 | ₹8,073.10 |
| 30+ | ₹747.56 | ₹22,426.80 |
| 100+ | ₹686.94 | ₹68,694.00 |
| 500+ | ₹659.00 | ₹3,29,500.00 |
| 1,500+ | ₹646.33 | ₹9,69,495.00 |
1 × ₹908.12
₹908.12
excl. GST
₹1,071.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NVMFS5C646NLWFAFT1G
₹908.12 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 900pF
- Ciss-Input Capacitance
- 2.164nF
- Pd - Power Dissipation
- 79W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 93A
- Reverse Transfer Capacitance (Crss)
- 17pF
- RDS(on)
- 4.7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 15.7nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.22 g
Overview
Key features
- Compact 5x6 mm package for space-constrained designs
- Low on-resistance RDS(on) minimizes conduction losses
- Low gate charge QG and capacitance minimizes driving losses
- NVMFS5C646NLWF – solderable flank option for enhanced optical inspection
- AEC-Q101 qualified with PPAP documentation available
- Lead-free, halogen-free/BFR-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NVMFS5C645NLAFT1G#C604613onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 23 | ₹347.13 · 23 in stock | View |
 | NVMFS6H800NWFT1G#C604622onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 20 | ₹964.37 · 20 in stock | View |
 | NTMFS5C646NT1G#C900311onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 106 | ₹251.42 · 106 in stock | View |
 | NTMFS6H818NLT1G#C900317onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 20 | ₹362.95 · 20 in stock | View |
 | NVMFS6H801NLT1G#C900465onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 20 | ₹506.64 · 20 in stock | View |
