onsemiDatasheet (PDF)

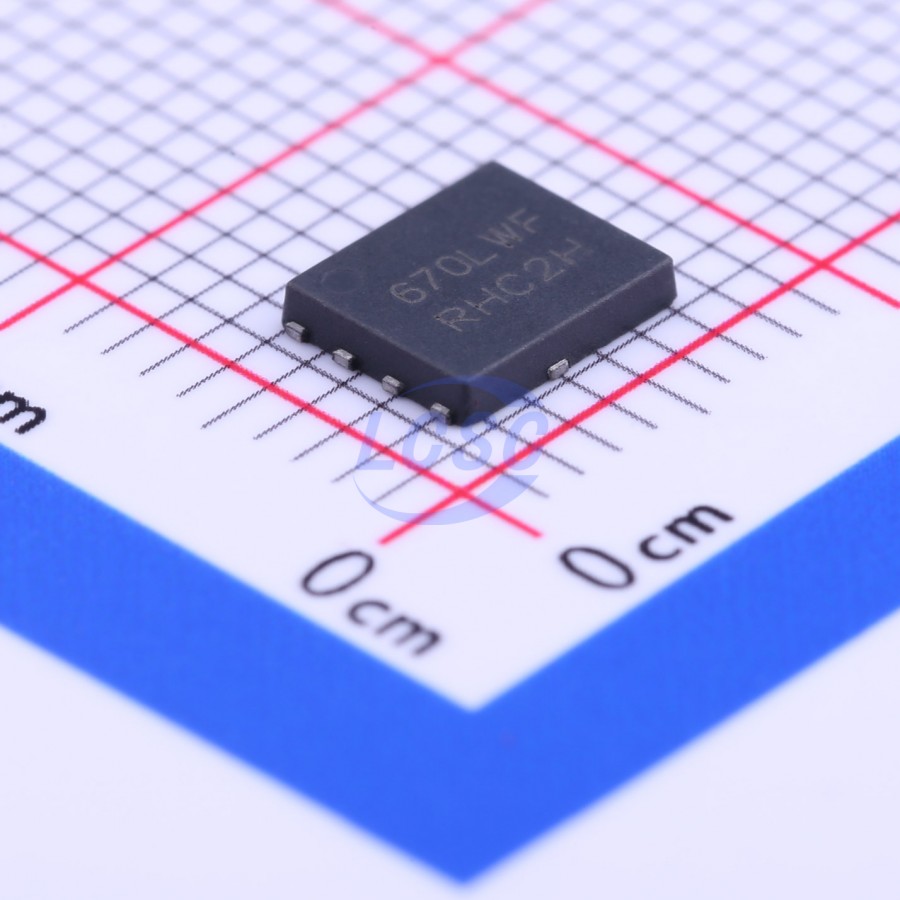

NVMFS5C670NLWFAFT1G
61W 60V 71A 6.1mΩ@10V 1 N-channel N-Channel DFN-5(5.9x4.9) Single FETs, MOSFETs RoHS
DFN-5(5.9x4.9)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NVMFS5C670NLWFAFT1G
- Store part #
- C146709
- Package / case
- DFN-5(5.9x4.9)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
59 in stock
#C146709
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹447.94 | ₹447.94 |
| 10+ | ₹379.65 | ₹3,796.50 |
| 30+ | ₹339.10 | ₹10,173.00 |
| 100+ | ₹297.91 | ₹29,791.00 |
| 500+ | ₹279.05 | ₹1,39,525.00 |
| 1,500+ | ₹270.37 | ₹4,05,555.00 |
1 × ₹447.94
₹447.94
excl. GST
₹528.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NVMFS5C670NLWFAFT1G
₹447.94 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 690pF
- Ciss-Input Capacitance
- 1.4nF
- Pd - Power Dissipation
- 61W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 71A
- Reverse Transfer Capacitance (Crss)
- 15pF
- RDS(on)
- 6.1mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 9nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.25 g
Overview
Key features
- Compact 5x6 mm package for space-constrained designs
- Low on-resistance RDS(on) for minimized conduction losses
- Low gate charge QG and capacitance for minimized driving losses
- NVMFS5C670NLWF – solderable flank option for optical inspection
- AEC-Q101 qualified with PPAP documentation available
- Lead-free, RoHS compliant devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTMFS5C670NLT3G#C184922onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 1 | ₹74.70 · 1 in stock | View |
 | NVMFS5H663NLT1G#C900461onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 166 | ₹256.00 · 166 in stock | View |
 | NVMFS5C646NLWFAFT1G#C900451onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 40 | ₹908.12 · 40 in stock | View |
 | NVMFS6H801NLT1G#C900465onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 20 | ₹506.64 · 20 in stock | View |
 | NTMFS6H836NLT1G#C900318onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 51 | ₹344.42 · 51 in stock | View |
