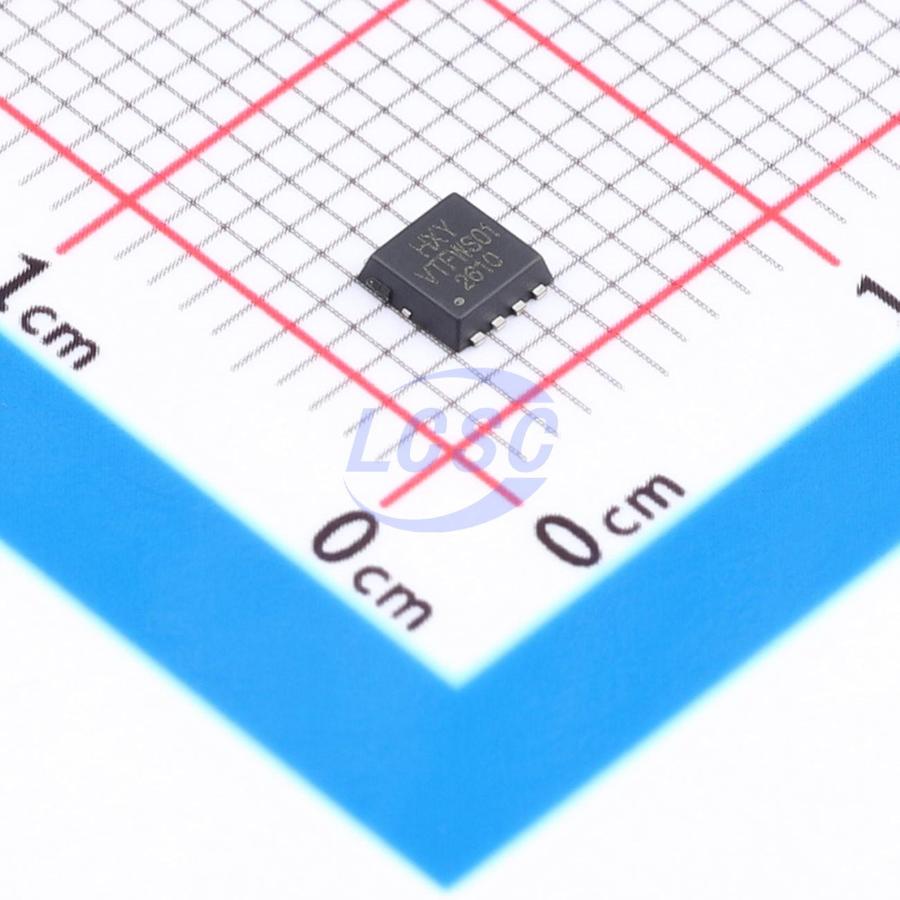

HXY MOSFET

NVTFWS012P03P8ZTAG-HXY

30V 55A 21.5W 8.5mΩ@10V 1 P-Channel P-Channel DFN-8L(3x3) Single FETs, MOSFETs

DFN-8L(3x3)RoHSActive

Manufacturer: HXY MOSFET
Manufacturer part #: NVTFWS012P03P8ZTAG-HXY
Store part #: C54582648
Package / case: DFN-8L(3x3)
Category: Single FETs, MOSFETs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

48 in stock

#C54582648

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹75.24	₹75.24
10+	₹60.18	₹601.80
30+	₹53.74	₹1,612.20
100+	₹45.79	₹4,579.00
500+	₹37.84	₹18,920.00
1,000+	₹35.68	₹35,680.00

Quantity (min 1)

1 × ₹75.24

₹75.24

excl. GST

₹88.78 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 5,000 per reel

NVTFWS012P03P8ZTAG-HXY

₹75.24 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Configuration: Standalone
Drain to Source Voltage: 30V
Output Capacitance(Coss): 346pF
Current - Continuous Drain(Id): 55A
Ciss-Input Capacitance: 2.8nF
Pd - Power Dissipation: 21.5W
Reverse Transfer Capacitance (Crss): 319pF
RDS(on): 8.5mΩ@10V
Number: 1 P-Channel
Gate Charge(Qg): 30nC@10V
Gate Threshold Voltage (Vgs(th)): 1.5V
Type: P-Channel

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.092 g

Overview

NVTFWS012P03P8ZTAG utilizes advanced trench technology to deliver excellent on-resistance (RDS(ON)), low gate charge, and operation at gate voltages as low as 4.5V. This device is suitable for battery protection or other switching applications.

Applications

Battery protection
Load switch
Uninterruptible power supply

Key features

VDS = -30V, ID = -55A
RDS(ON) < 11mΩ (@ VGS = -10V)

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
DMP3013SFV-HXY#C22366584HXY MOSFET · DFN3x3-8L	HXY MOSFET	DFN3x3-8L	870	₹34.15 · 870 in stock	View
SIS413DN-T1-GE3-HXY#C22366586HXY MOSFET · DFN-8L(3x3)	HXY MOSFET	DFN-8L(3x3)	235	₹43.50 · 235 in stock	View
DMP3011SFVW-7-HXY#C49420463HXY MOSFET · DFN-8L(3x3)	HXY MOSFET	DFN-8L(3x3)	640	₹47.85 · 640 in stock	View
SIS427EDN-T1-GE3-HXY#C54582640HXY MOSFET · DFN-8L(3x3)	HXY MOSFET	DFN-8L(3x3)	46	₹67.06 · 46 in stock	View
DMP3018SFV-7-HXY#C54582642HXY MOSFET · DFN-8L(3x3)	HXY MOSFET	DFN-8L(3x3)	40	₹46.25 · 40 in stock	View
