NexperiaDatasheet (PDF)

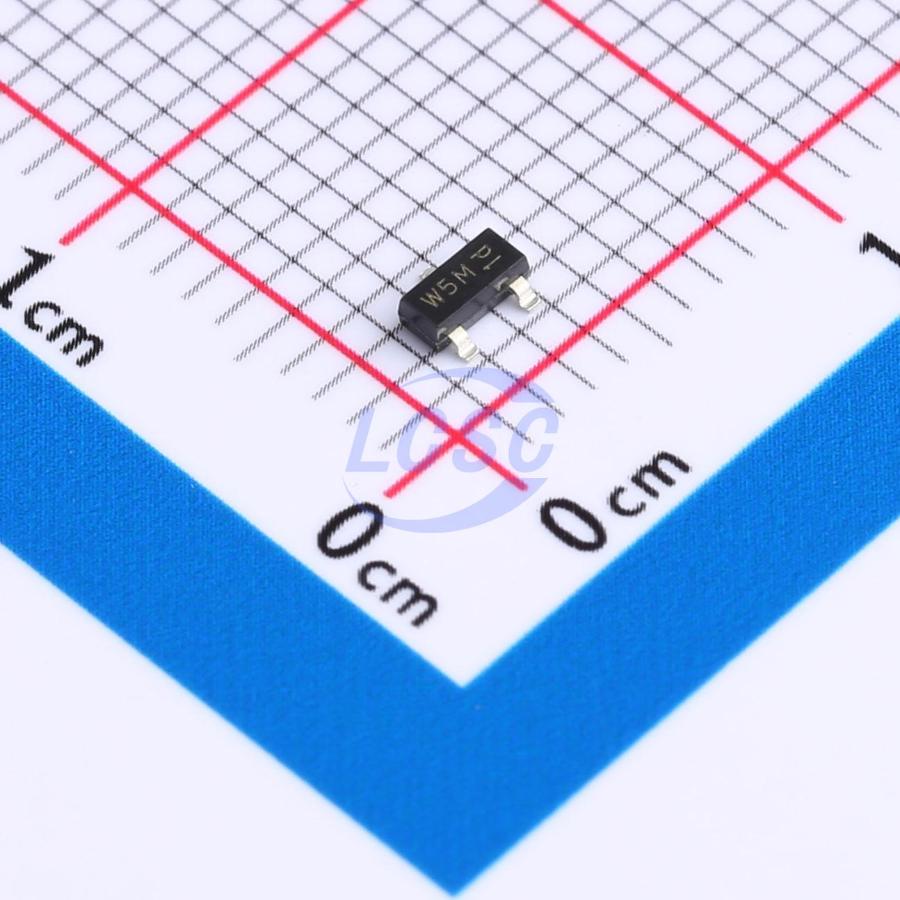

NXV75UPR
20V 1.8A 2.1W 90mΩ@4.5V 1 P-Channel P-Channel TO-236AB Single FETs, MOSFETs RoHS
TO-236ABROHS3 CompliantActive
P-channel, Current: 1.8A, Voltage: 20V
- Manufacturer
- Nexperia
- Manufacturer part #
- NXV75UPR
- Store part #
- C3280962
- Package / case
- TO-236AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
140 in stock
#C3280962
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.63 | ₹86.30 |
| 100+ | ₹6.77 | ₹677.00 |
| 300+ | ₹5.85 | ₹1,755.00 |
| 3,000+ | ₹5.16 | ₹15,480.00 |
| 6,000+ | ₹4.60 | ₹27,600.00 |
| 9,000+ | ₹4.33 | ₹38,970.00 |
10 × ₹8.63
₹86.30
excl. GST
₹101.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NXV75UPR
₹86.30 for 10 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 51pF
- Current - Continuous Drain(Id)
- 1.8A
- Ciss-Input Capacitance
- 330pF
- Pd - Power Dissipation
- 2.1W
- Reverse Transfer Capacitance (Crss)
- 44pF
- RDS(on)
- 90mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 6.3nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
P-channel enhancement-mode FET using trench MOSFET technology, housed in a compact SOT23 SMD plastic package.
Applications
- Relay driver
- High-speed line driver
- High-side load switch
- Switching circuit
Key features
- Low threshold voltage
- Ultra-fast switching
- Trench MOSFET technology
