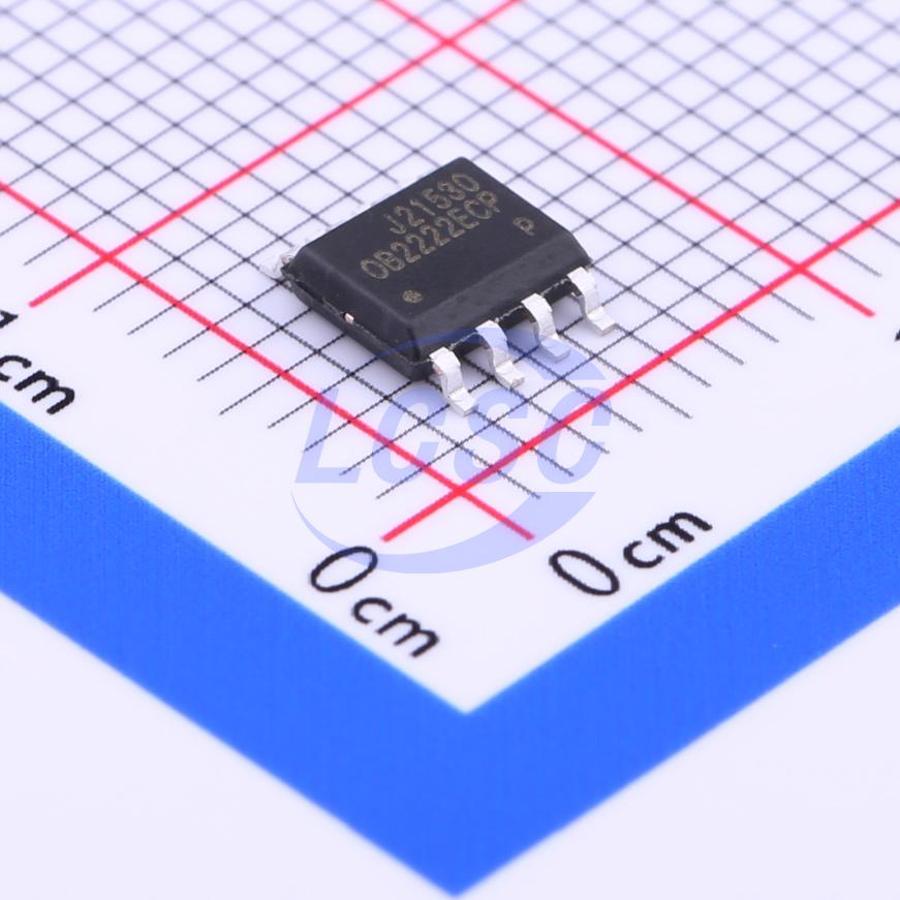

OB2222ECPA

100mA 36kHz~44kHz 700V 4.5V~6V 5V SOP-8 AC DC Converters, Offline Switchers

SOP-8RoHSActive

High Precision Low Cost Power Switch

Manufacturer: OB
Manufacturer part #: OB2222ECPA
Store part #: C261406
Package / case: SOP-8
Category: AC DC Converters, Offline Switchers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,390 in stock

#C261406

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹15.76	₹78.80
50+	₹12.73	₹636.50
150+	₹11.21	₹1,681.50
500+	₹10.05	₹5,025.00
2,500+	₹9.14	₹22,850.00
4,000+	₹8.69	₹34,760.00

Quantity (min 5, multiples of 5)

5 × ₹15.76

₹78.80

excl. GST

₹92.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

OB2222ECPA

₹78.80 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Output Current: 100mA
Frequency - Switching: 36kHz~44kHz
Voltage - Breakdown: 700V
Voltage - Supply: 4.5V~6V
Topology: Buck;Buck-Boost
Features: Light load efficient mode;EMI optimization (spread spectrum);Leading edge blanking;Under-voltage lockout;Audio noise elimination;Constant Voltage (CV);Over Voltage Protection;Short Circuit Protection;Overtemperature protection (OTP);Under Voltage Protection
Output Voltage: 5V
Duty Cycle(Max): 15%

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.169 g

Overview

OB2222E is a high performance, high precision and low cost PWM Power switch for non- isolated buck and buck- boost application. It combines a dedicated current mode PWM controller with a high voltage power Bipolar in SOP8 package. Its built- in error amplifier is optimized for good overshoot and dynamic response for low cost and component count. With precise inner- resistor divider, precise reference of EA, constant voltage regulation of 5.0V at universal AC input can be guaranteed. Frequency reduction and burst mode control is implemented for high efficiency at light load. Good EMI performance is achieved with On- Bright proprietary frequency shuffling technique and soft base driver design. Low startup current and low operating current contribute to a reliable power on startup and low standby power consumption with OB2222E. Constant power operation is supported at over load application with OB2222E, which makes it suitable for small home appliance application where instant large power consumption is required such as start- up of a fan. OB2222E offers power on soft start control and protection coverage with auto- recovery features including cycle- by- cycle current limiting, output short circuit protection, FB pin open loop protection, on- chip Over Temperature Protection (OTP), VDD Over Voltage Protection (OVP), and VDD Under Voltage Lockout Protection (UVLO). The tone energy at below 20KHz is minimized in the design so that audio noise is eliminated during operation. OB2222E is offered in SOP8 package.
