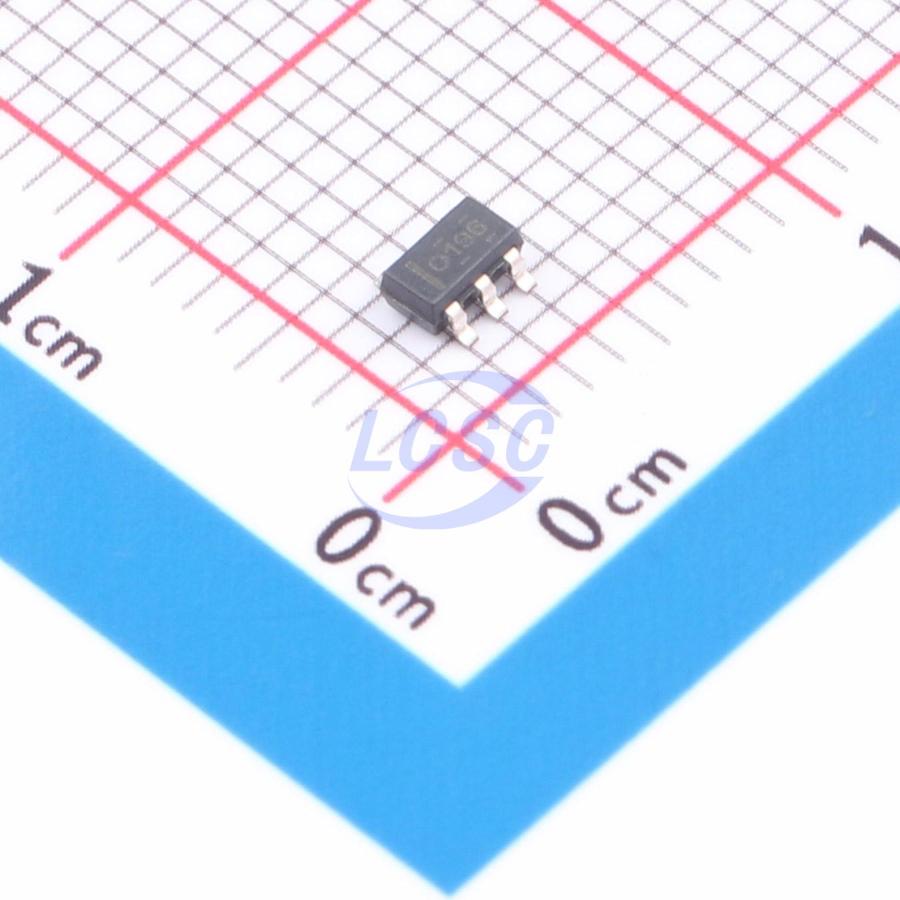

OPA196IDBVT

The OPAx196 series is a new generation of 36V rail-to-rail e-trim™ operational amplifiers. These devices offer very low offset voltage (typ. ±25μV), drift (typ. ±0.5μV/°C), and low bias current (typ. ±5pA) across the entire output range, along with very low quiescent current (typ. 140μA per channel). The OPAx196 features many unique characteristics, such as a differential input voltage range that can reach the supply rails, high output current (±65mA), and the ability to drive high capacitive loads up to 1nF. It is a robust and high-performance operational amplifier suitable for various high-voltage industrial applications. The OPAx196 series operational amplifiers come in standard packages and operate over a rated temperature range of -40°C to +125°C.

Applications

• Multiplexed data acquisition systems
• Test and measurement equipment
• High-resolution ADC driver amplifiers
• SAR ADC reference buffers
• Analog input and output modules
• High-side and low-side current sensing
• High-precision comparators
• Medical instrumentation

Key features

• Low offset voltage: ±100μV (max)
• Low offset voltage drift: ±0.5μV/°C (typical)
• Low bias current: ±5pA (typical)
• High common-mode rejection: 140dB
• Low noise: 15nV/√Hz at 1kHz
• Rail-to-rail input and output
• Differential input voltage range up to supply rails
• High bandwidth: 2.5MHz GBW
• Low quiescent current: 140μA per amplifier (typical)
• Wide supply range: ±2.25V to ±18V, 4.5V to 36V
• EMI/RFI filtered inputs
• High capacitive load drive capability: 1nF
• Industry-standard packages: SOIC-8, SOT-5, and VSSOP-8 single, SOIC-8 and VSSOP-8 dual, SOIC-14, TSSOP-14, and QFN-16 quad
