TIDatasheet (PDF)

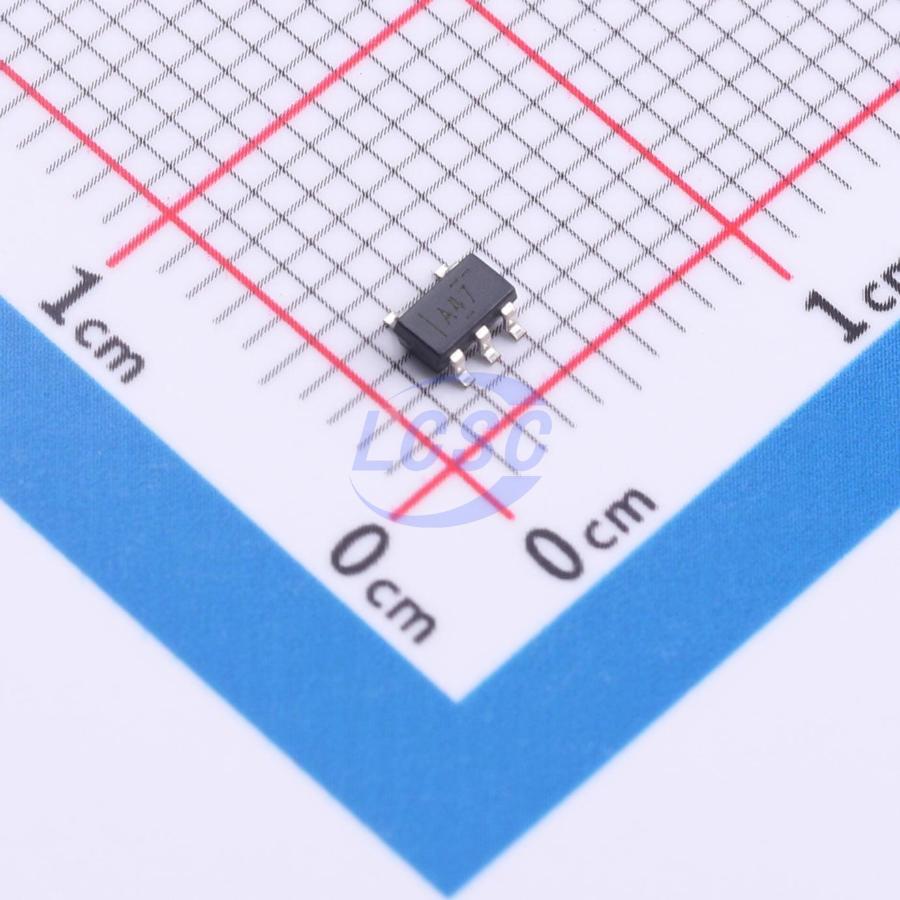

OPA347NA/250
17mA 1 2mV 170V/ms 128dB 0.5pA 20uA 350kHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS3 CompliantActive
microPower, Rail-to-Rail Operational Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- OPA347NA/250
- Store part #
- C2060908
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19 in stock
#C2060908
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹414.22 | ₹414.22 |
| 10+ | ₹403.41 | ₹4,034.10 |
| 30+ | ₹396.05 | ₹11,881.50 |
| 100+ | ₹388.92 | ₹38,892.00 |
1 × ₹414.22
₹414.22
excl. GST
₹488.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 250 per reel
OPA347NA/250
₹414.22 for 1 + GST
Specifications
- Output Current
- 17mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 170V/ms
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -55℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 128dB
- Ib - Input Bias Current
- 0.5pA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 20uA
- Gain Bandwidth Product
- 350kHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 60nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.3V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 250 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.935 g
Overview
The OPA347 is a microPower, low-cost operational amplifier available in micropackages. The small size and low power consumption (34μA per channel maximum) of the OPA347 make it ideal for portable and battery-powered applications. The input range of the OPA347 extends 200mV beyond the rails, and the output range is within 5mV of the rails. The OPA347 also features an excellent speed/power ratio with a bandwidth of 350kHz. The OPA347 can be operated with a single or dual power supply from 2.3V to 5.5V. All models are specified for operation from -55°C to +125°C.
Applications
- PORTABLE EQUIPMENT
- BATTERY - POWERED EQUIPMENT
- 2 - WIRE TRANSMITTERS
- SMOKE DETECTORS
- CO DETECTORS
Key features
- LOW IQ: 20μA
- microSIZE PACKAGES: WCSP - 8, SC70 - 5, SOT23 - 5, SOT23 - 8, and TSSOP - 14
- HIGH SPEED/POWER RATIO WITH BANDWIDTH: 350kHz RAIL - TO - RAIL INPUT AND OUTPUT
- SINGLE SUPPLY: 2.3V to 5.5V
