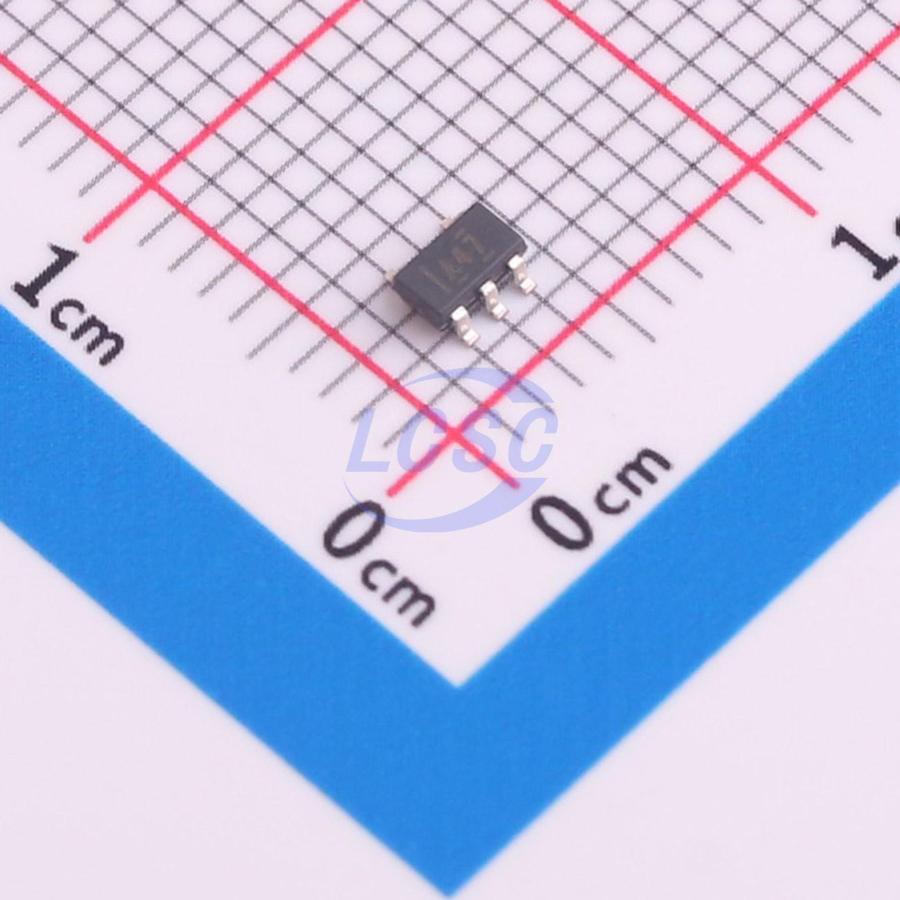

OPA347NA/3K

17mA 1 2mV 170V/ms 128dB 0.5pA 20uA 350kHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS3 CompliantActive

microPower, Rail-to-Rail Operational Amplifiers

Manufacturer: TI
Manufacturer part #: OPA347NA/3K
Store part #: C2652269
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

105 in stock

#C2652269

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
1+	₹352.14	₹352.14
10+	₹300.32	₹3,003.20
30+	₹267.87	₹8,036.10
100+	₹234.77	₹23,477.00
500+	₹219.74	₹1,09,870.00
1,000+	₹213.20	₹2,13,200.00

Quantity (min 1)

1 × ₹352.14

₹352.14

excl. GST

₹415.53 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

OPA347NA/3K

₹352.14 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 17mA
Number of Channels: 1
Vos - Input Offset Voltage: 2mV
Slew Rate: 170V/ms
Input Offset Current(Ios): 10pA
Operating Temperature: -55℃~+125℃
Common Mode Rejection Ratio(CMRR): 128dB
Ib - Input Bias Current: 0.5pA
Input Offset Voltage Drift(Vos TC): 3uV/℃
Quiescent Current: 20uA
Gain Bandwidth Product: 350kHz
Features: Built-in compensation
Input Voltage Noise Density: 60nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.3V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.033 g

Overview

The OPA347 is a microPower, low-cost operational amplifier available in micropackages. The small size and low power consumption (34μA per channel maximum) of the OPA347 make it ideal for portable and battery-powered applications. The input range of the OPA347 extends 200mV beyond the rails, and the output range is within 5mV of the rails. The OPA347 also features an excellent speed/power ratio with a bandwidth of 350kHz. The OPA347 can be operated with a single or dual power supply from 2.3V to 5.5V. All models are specified for operation from -55°C to +125°C.

Applications

PORTABLE EQUIPMENT
BATTERY - POWERED EQUIPMENT
2 - WIRE TRANSMITTERS
SMOKE DETECTORS
CO DETECTORS

Key features

LOW IQ: 20μA
microSIZE PACKAGES: WCSP - 8, SC70 - 5, SOT23 - 5, SOT23 - 8, and TSSOP - 14
HIGH SPEED/POWER RATIO WITH BANDWIDTH: 350kHz RAIL - TO - RAIL INPUT AND OUTPUT
SINGLE SUPPLY: 2.3V to 5.5V
