Shanghai Prisemi Elec

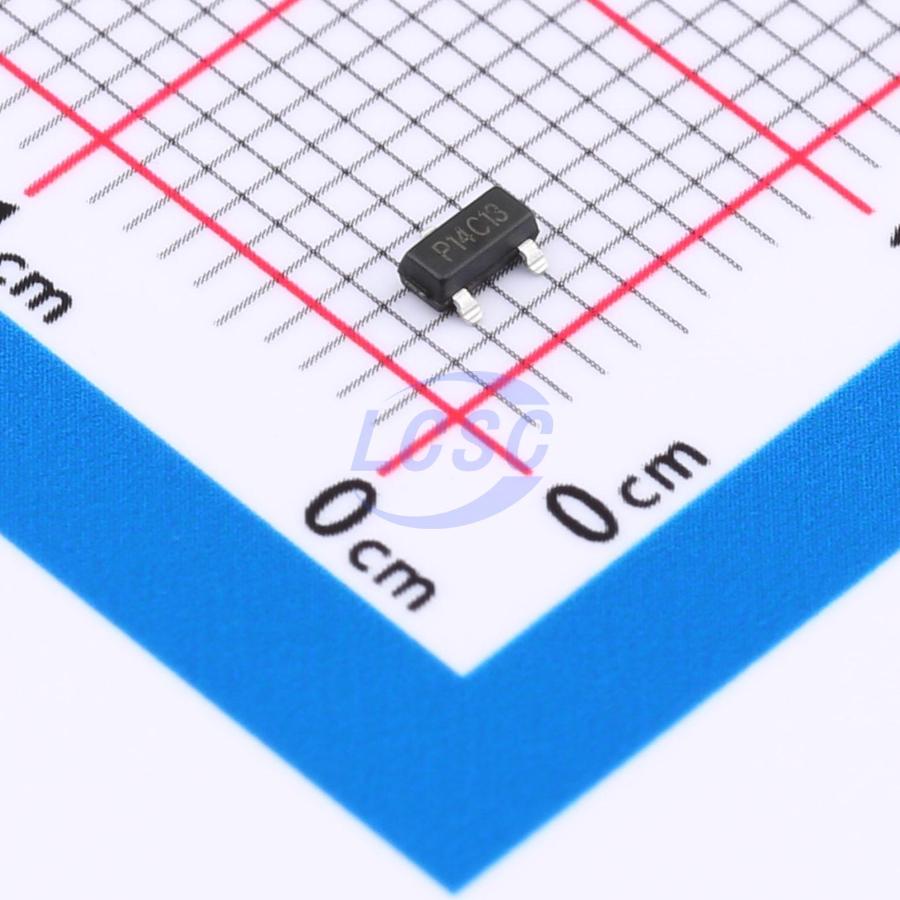

P14C13

1A Load Switch SOT-23 Power Distribution Switches, Load Drivers

SOT-23RoHSActive

Overvoltage Protector

Manufacturer: Shanghai Prisemi Elec
Manufacturer part #: P14C13
Store part #: C5274035
Package / case: SOT-23
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

43,760 in stock

#C5274035

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
10+	₹7.09	₹70.90
100+	₹5.83	₹583.00
300+	₹5.21	₹1,563.00
3,000+	₹4.74	₹14,220.00
6,000+	₹4.37	₹26,220.00
9,000+	₹4.18	₹37,620.00

Quantity (min 10, multiples of 10)

10 × ₹7.09

₹70.90

excl. GST

₹83.66 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

P14C13

₹70.90 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Features: Overvoltage protection;Under-voltage lockout;Over temperature protection
Maximum Continuous Current: 1A
RDS(on): 250mΩ
Operating Voltage: 3.5V~32V
Type: Load Switch

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.042 g

Overview

The P14C13 is an Over-Voltage-Protection (OVP) load switch with fixed 6.0V OVLO threshold voltage. The device will switch off internal MOSFET to disconnect IN to OUT to protect load when any of input voltage over the threshold. The Over temperature protection (OTP) function monitors chip temperature to protect the device. The P14C13 is available in Green SOT23 package. ESD and surge protection enhancement
