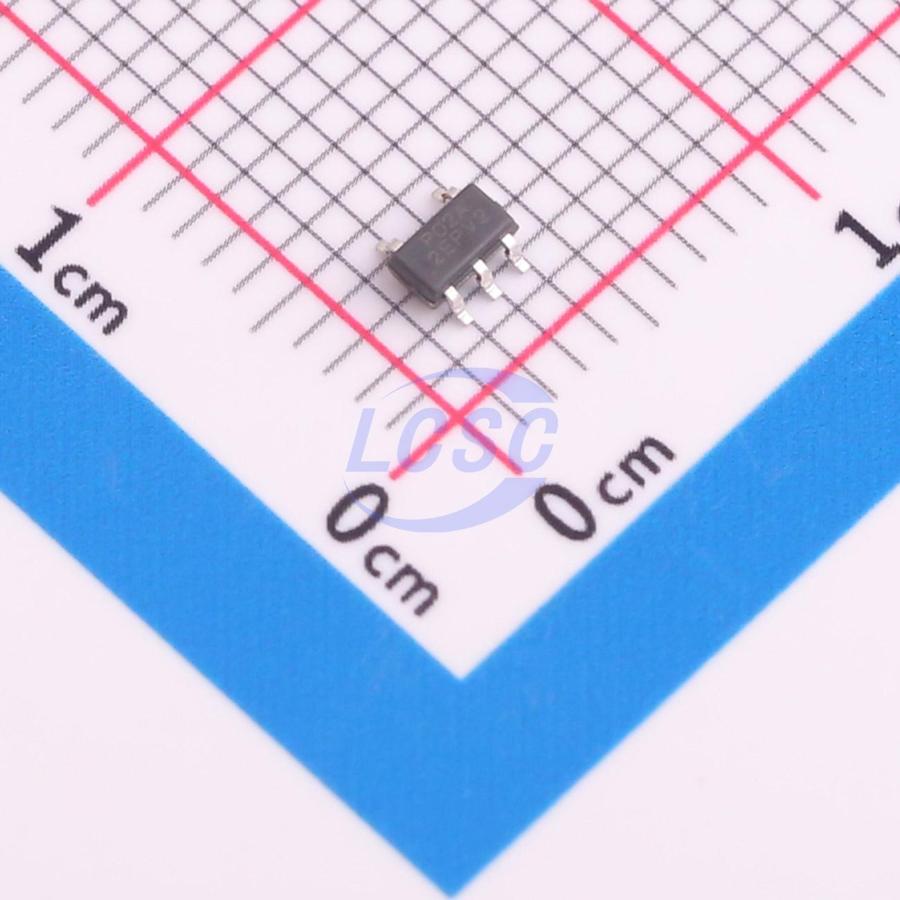

PUYA
P24C02A-STH-MIR
2Kbit 1MHz I2C SOT-23-5 Memory
SOT-23-5RoHSActive
I2C-Compatible Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,725 in stock
#C5263799
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.91 | ₹54.55 |
| 50+ | ₹8.57 | ₹428.50 |
| 150+ | ₹7.40 | ₹1,110.00 |
| 500+ | ₹6.52 | ₹3,260.00 |
| 3,000+ | ₹5.82 | ₹17,460.00 |
| 6,000+ | ₹5.46 | ₹32,760.00 |
5 × ₹10.91
₹54.55
excl. GST
₹64.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
P24C02A-STH-MIR
₹54.55 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Noise suppression function;Built-in power-on reset (POR);Hardware write protection function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.7V~5.5V;0.8mA
- Clock Frequency
- 1MHz
- Access Time
- 3.45us;0.9us;0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The P24C02A is I2C-compatible Serial EEPROM (Electrically Erasable Programmable Memory) device. It contains a memory array of 2Kbits (256 bytes), which is organized in 8 bytes per page.
Key features
- Single Supply Voltage and High Speed Mode 400kHz/1MHz MHz clock from 1.7V to 5.5V
- Low power CMOS technology
- Read current 0.2 mA (400kHz, typical)
- Write current 0.8 mA (400kHz, typical)
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- Page Write Modes, Partial Page Writes Allowed
- Write protect of the whole memory array
- Self-timed Write Cycle (5ms maximum)
- High Reliability
- Endurance: 1 Million Write Cycles
- Data Retention: 100 Years
- ESD HBM: 4 kV
- Latch-up Capability: +/- 200mA(25C)
- Package: PDIP8, SOP8, TSSOP8, UDFN8, MSOP8, SOT23-5 and TSOT23-5
