Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,915 in stock
#C5263817
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹77.22 | ₹77.22 |
| 10+ | ₹61.35 | ₹613.50 |
| 30+ | ₹54.39 | ₹1,631.70 |
| 100+ | ₹45.91 | ₹4,591.00 |
| 500+ | ₹40.25 | ₹20,125.00 |
| 1,000+ | ₹38.08 | ₹38,080.00 |
1 × ₹77.22
₹77.22
excl. GST
₹91.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel

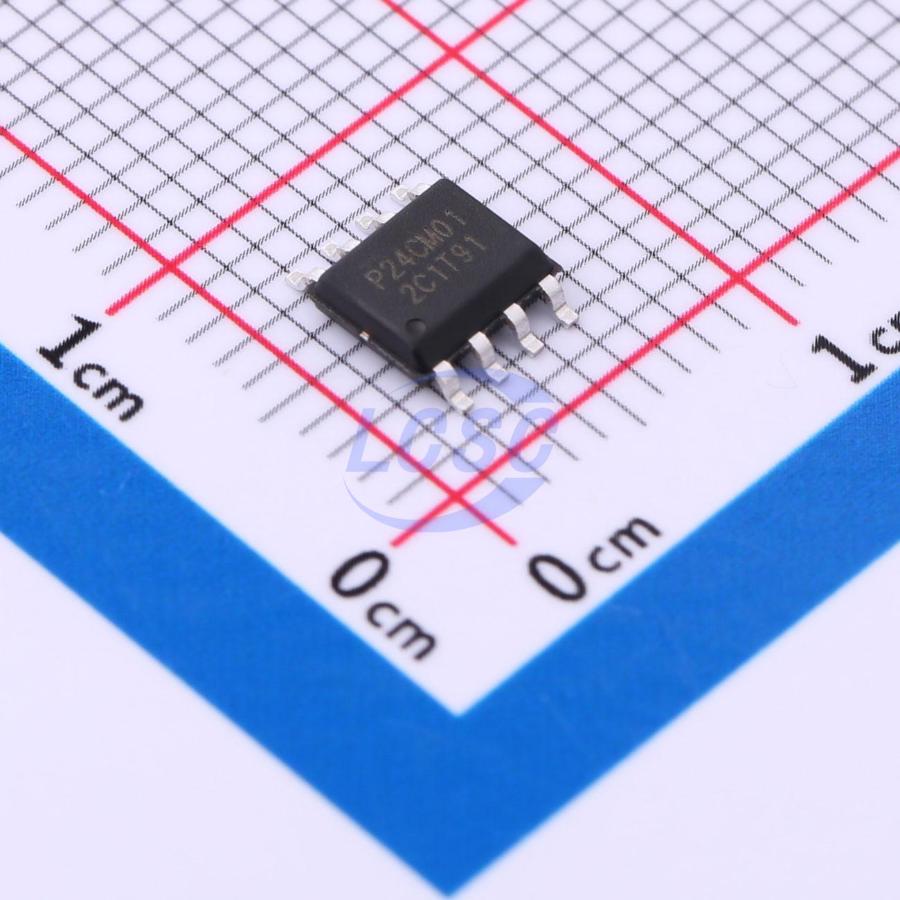

P24CM01B--SSH-MIR
₹77.22 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 1Mbit
- Voltage - Supply
- 1.7V~5.5V;1.5mA
- Clock Frequency
- 400kHz;1MHz
- Access Time
- 0.9us;0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.184 g
Overview
P24CM01B is an I²C-compatible serial EEPROM device. It contains a 1024 Kbit (128 Kbyte) memory array organized as 256 bytes per page.
Key features
- Single supply voltage and high-speed mode
- Minimum operating voltage down to 1.7V
- 400kHz/1MHz clock frequency supported over 1.7V to 5.5V voltage range
- Low-power CMOS technology
- Typical read current 0.4mA (400kHz)
- Schmitt trigger and filtered inputs for noise suppression
- Sequential read and random read support
- 256-byte page write mode with partial page write capability
- Write protection for entire memory array
- Additional writable lockable page
- Self-timed write cycle (5ms max)
- High reliability
- Endurance: 1 million write cycles
- Data retention: 100 years
- HBM: 6 kV
- Latch-up immunity: +/-200mA (25℃)
- Packages: PDIP8, SOP8 (150mil/208mil), TSSOP8, and DFN8
