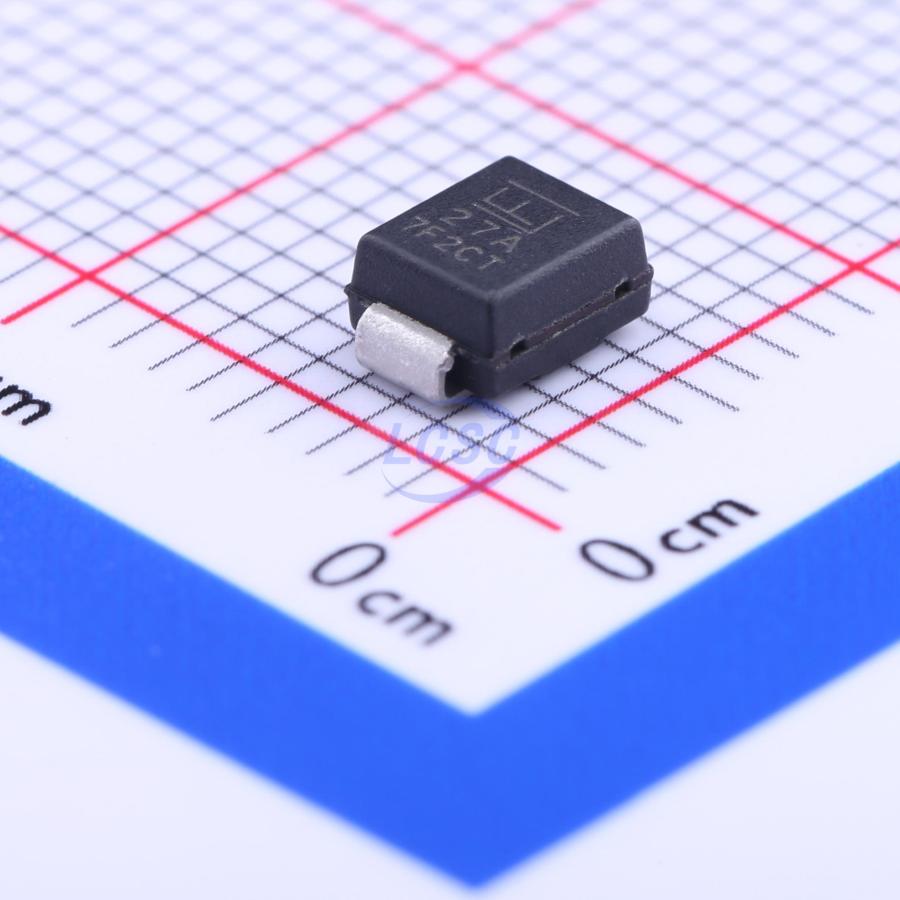

P6SMB27A

The P6SMB series is designed specifcally to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Applications

• TVS devices are ideal for the protection of I/O Interfaces, V_CC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.

Key features

• Excellent clamping capability
• Low incremental surge resistance
• Typical absolute value of R less than 1 μA when the minimum breakdown voltage (VBR min) > 12 V
• For surface mounted applications to optimize board space
• Low profile package
• Typical failure mode is short from over-specified voltage or current
• Whisker test is conducted based on JEDEC JESD201A per its table 4 and 4c
• IEC-61000-4-2 ESD 30 kV (Air), 30 kV (Contact)
• ESD protection of data lines in accordance with IEC 61000-4-2
• EFT protection of data lines in accordance with IEC 61000-4-4
• Built-in strain relief
• Fast response time: typically less than 1.0 ps from 0 V to minimum breakdown voltage (BV min)
• 600 W peak pulse power capability at 10/1000 μs waveform, repetition rate (duty cycles): 0.01 %
• High temperature to reflow soldering guaranteed: 260 ℃/40 sec
• Voltage at temperature T (V @ T) = Voltage at 25 ℃ (V @ 25℃) x (1 + temperature coefficient (αT) x (T - 25)) (αT: Temperature Coefficient, typical value is 0.1 %)
• Plastic package is flammability rated V-0 per Underwriters Laboratories
• Meet MSL level 1, per J-STD-020C, LF maximum peak of 260 ℃
• Matte tin lead–free plated
• Halogen free and RoHS compliant
• Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin (Sn) (IPC/JEDEC J-STD609A.01)
