LittelfuseDatasheet (PDF)

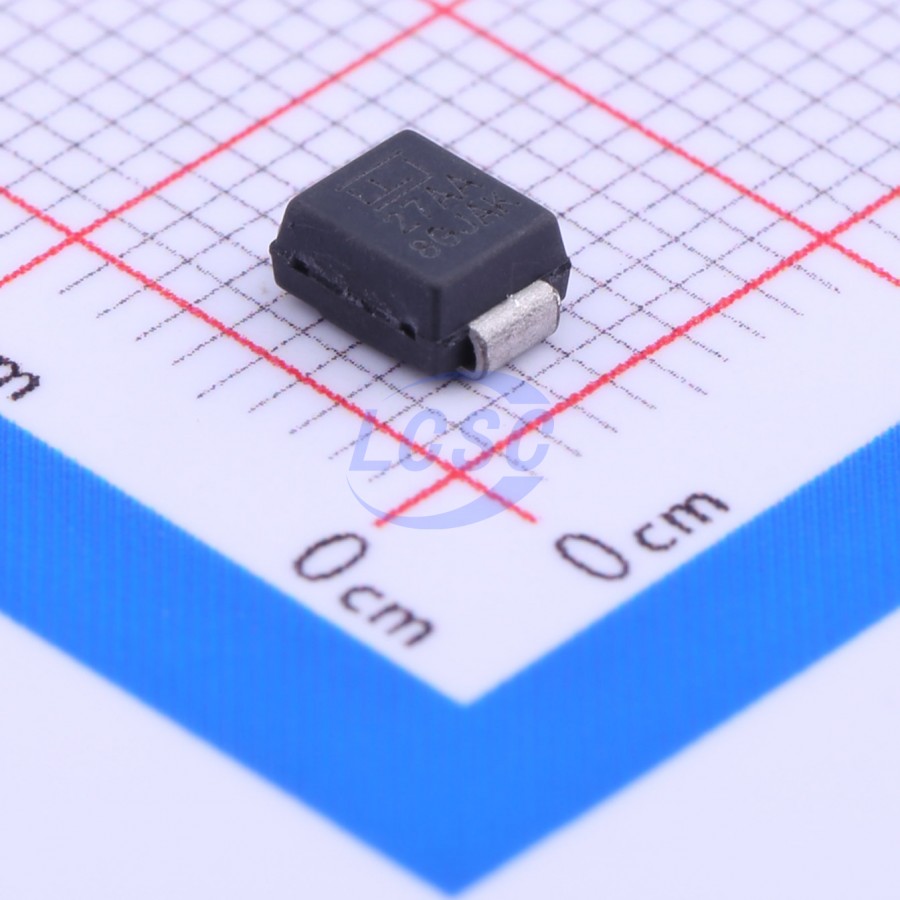

TPSMB27A
37.5VC Clamp 37.5A@10/1000us Ipp TVS DIODE DO-214AA
DO-214AAROHS3 CompliantActive
TVS DIODE 23.1VWM 37.5VC DO-214AA
- Manufacturer
- Littelfuse
- Manufacturer part #
- TPSMB27A
- Store part #
- C151307
- Package / case
- DO-214AA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
555 in stock
#C151307
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.85 | ₹114.25 |
| 50+ | ₹18.14 | ₹907.00 |
| 150+ | ₹16.13 | ₹2,419.50 |
| 500+ | ₹13.61 | ₹6,805.00 |
| 3,000+ | ₹12.49 | ₹37,470.00 |
| 6,000+ | ₹11.81 | ₹70,860.00 |
5 × ₹22.85
₹114.25
excl. GST
₹134.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPSMB27A
₹114.25 for 5 + GST
Specifications
- Clamping Voltage
- 37.5V
- Operating Temperature
- -65℃~+175℃
- Peak Pulse Current (Ipp)
- 16.3A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 28.4V
- type
- TVS
- Reverse Leakage Current (Ir)
- 92nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 23.1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.202 g
Overview
The TPSMB series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
- TVS components are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Automotive applications.
Key features
- High reliability application and automotive grade AEC Q101 qualified
- Surface mount component to optimize board space
- Low profile package
- Typical failure mode is short from over-specified voltage or current
- Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
- IEC-61000-4-2 ESD 30kV(Air), 30kV (Contact)
- ESD protection of data lines in accordance with IEC 61000-4-2
- EFT protection of data lines in accordance with IEC 61000-4-4
- Glass passivated chip junction
- 600W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles): 0.01 %
- Fast response time: typically less than 1.0ns from 0V to VBR min
- Excellent clamping capability
- Low incremental surge resistance
- Typical |R less than 1μΔ above 12V
- UL Recognized epoxy meeting flammability rating V-0
- Meet MSL level1, per J-STD-020, High temperature soldering guaranteed: 260°C/10 seconds at terminals
- Matte tin lead–free plated
- Halogen free and RoHS compliant
- Pb-free E3 means 2nd level interconnect is Pbfree and the terminal finish material is tin(Sn) (IPC/ JEDEC J-STD-609A.01)
