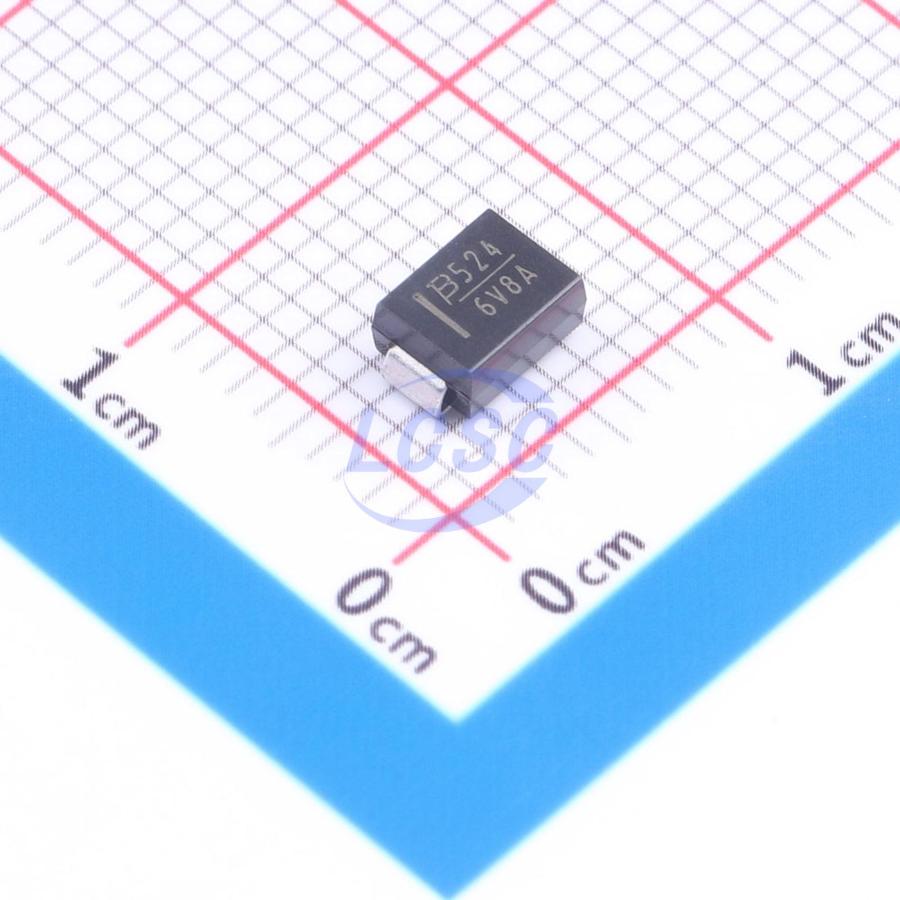

P6SMB6.8A
13.7V 290.5A@8/20us 600W@1ms 7.14V Unidirectional 5.8V DO-214AA TVS Diodes RoHS
- Manufacturer
- BOURNS
- Manufacturer part #
- P6SMB6.8A
- Store part #
- C22432720
- Package / case
- DO-214AA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
75 in stock
#C22432720
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.74 | ₹243.70 |
| 50+ | ₹40.79 | ₹2,039.50 |
| 150+ | ₹37.37 | ₹5,605.50 |
| 500+ | ₹33.11 | ₹16,555.00 |
| 3,000+ | ₹31.22 | ₹93,660.00 |
| 6,000+ | ₹30.09 | ₹1,80,540.00 |
5 × ₹48.74
₹243.70
excl. GST
₹287.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
P6SMB6.8A
₹243.70 for 5 + GST
Specifications
- Clamping Voltage
- 13.7V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 290.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 600W@1ms
- Voltage - Breakdown
- 7.14V
- Number of Channels
- 1
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1mA
- Reverse Stand-Off Voltage (Vrwm)
- 5.8V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.165 g
Overview
The markets of portable communications, computing and video equipment are challenging the semiconductor industry to develop increasingly smaller electronic components. Bourns offers Transient Voltage Suppressor Diodes for surge and ESD protection applications, in compact chip package DO-214AA (SMB) size format. The Transient Voltage Suppressor series offers a choice of Breakdown Voltages from 6.8 V upto 550 V. Typical fast response times are less than 1.0 picosecond for unidirectional devices and less than 5.0 picoseconds for bidirectional devices from 0 to Minimum Breakdown Voltage. Bourns Chip Diodes conform to JEDEC standards, are easy to handle with standard pick and place equipment and the flat configuration minimizes roll away.
Applications
- IEC 61000 - 4 - 2 ESD (Min. Level 4)
- IEC 61000 - 4 - 4 EFT
- IEC 61000 - 4 - 5 Surge
Key features
- RoHS compliant and halogen free
- Surface Mount SMB package
- Breakdown Voltage: 6.8 to 550 volts
- Peak Pulse Power: 600 watts
- Typical temperature coefficient: ΔV̇BR = 0.1% × VBR ≥ 25% × ΔT
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SM6T6V8AY#C2970030ST · SMB(DO-214AA) | ST | SMB(DO-214AA) | 2,490 | ₹48.55 · 2,490 in stock | View |
 | SM6T6V8A#C84316ST · SMB(DO-214AA) | ST | SMB(DO-214AA) | 5,210 | ₹38.27 · 5,210 in stock | View |
 | SMBJ6.0A-Q#C1518355BOURNS · SMB(DO-214AA) | BOURNS | SMB(DO-214AA) | 120 | ₹48.98 · 120 in stock | View |
| SM6T6V8AHE3_B/H#C20036920VISHAY · DO-214AA(SMB) | VISHAY | DO-214AA(SMB) | On request | ₹54.75 · 0 in stock | View | |
| SM6T6V8AHE3_B/I#C20036921VISHAY · DO-214AA(SMB) | VISHAY | DO-214AA(SMB) | On request | ₹49.67 · 0 in stock | View | |
