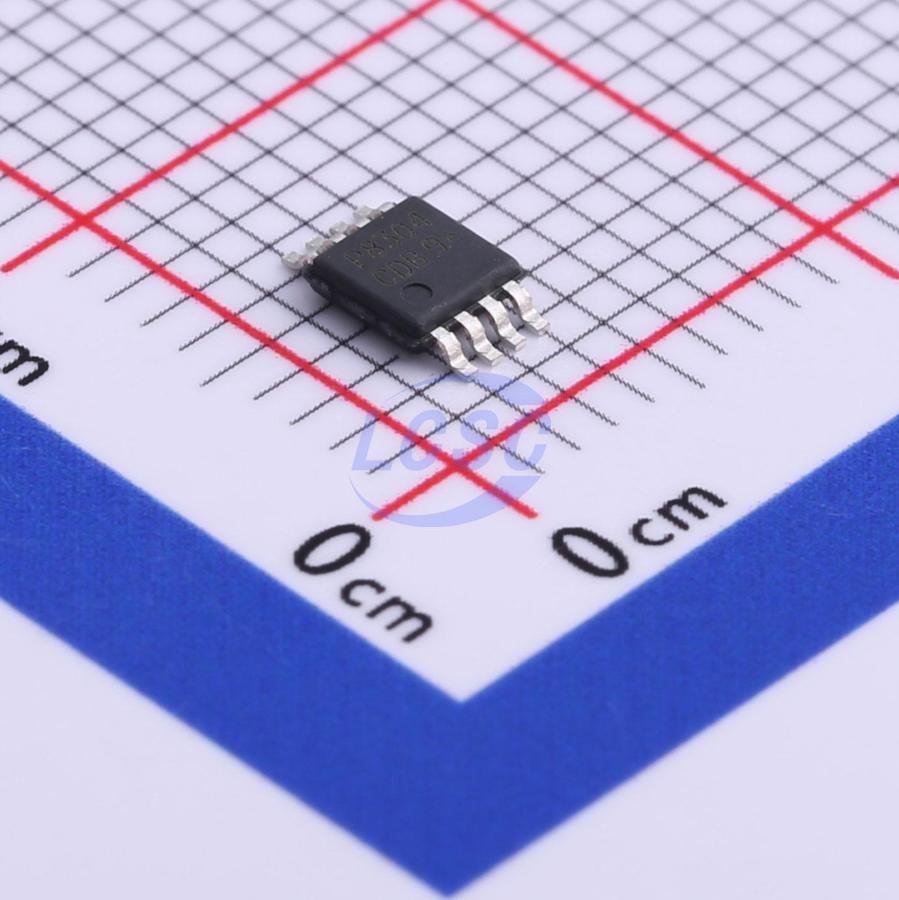

PAM8304ASR

The PAM8304 is a mono, filter- less, Class- D amplifier with high SNR (signal- to- noise ratio) and differential input that helps eliminate noise. The PAM8304 supports 2.8V to 6V operation, which makes it ideal for up to 4- cell alkaline battery applications. The PAM8304 is capable of driving speaker loads as low as 3Ω with a 5V supply, maximizing the output power. The device's over 90% efficiency and small PCB area make the PAM8304 Class- D amplifier ideal for portable applications. The output uses a filter- less architecture, minimizing the number of external components in the PCB area whilst providing a high- performance, simple, and lower cost system. The PAM8304 features short- circuit protection, thermal shutdown, and undervoltage lockout. The PAM8304 is available in the U- DFN3030- 8 (Type E) and MSOP- 8 packages.

Applications

• MP4/MP3
• GPS
• Set-top-boxes
• Tablets/digital photo frames
• Electronic dictionaries
• Portable game machines

Key features

• Supply Voltage from 2.8V to 6.0V
• 3Ω Driving Capability
• 3.0W@10% THD Output with a 4Ω Load and 5V Supply
• High Efficiency Up to 90% @1W with an 8Ω Load
• Shutdown Current < 1uA
• Superior Low Noise Without Input
• Short-Circuit Protection
• Thermal Shutdown
• Available in Space-Saving U-DFN3030-8 (Type E) and MSOP-8 Packages
• Pb-Free Package
• Totally Lead-Free & Fully RoHS Compliant
• Halogen and Antimony Free. "Green" Device
