JSMSEMIDatasheet (PDF)

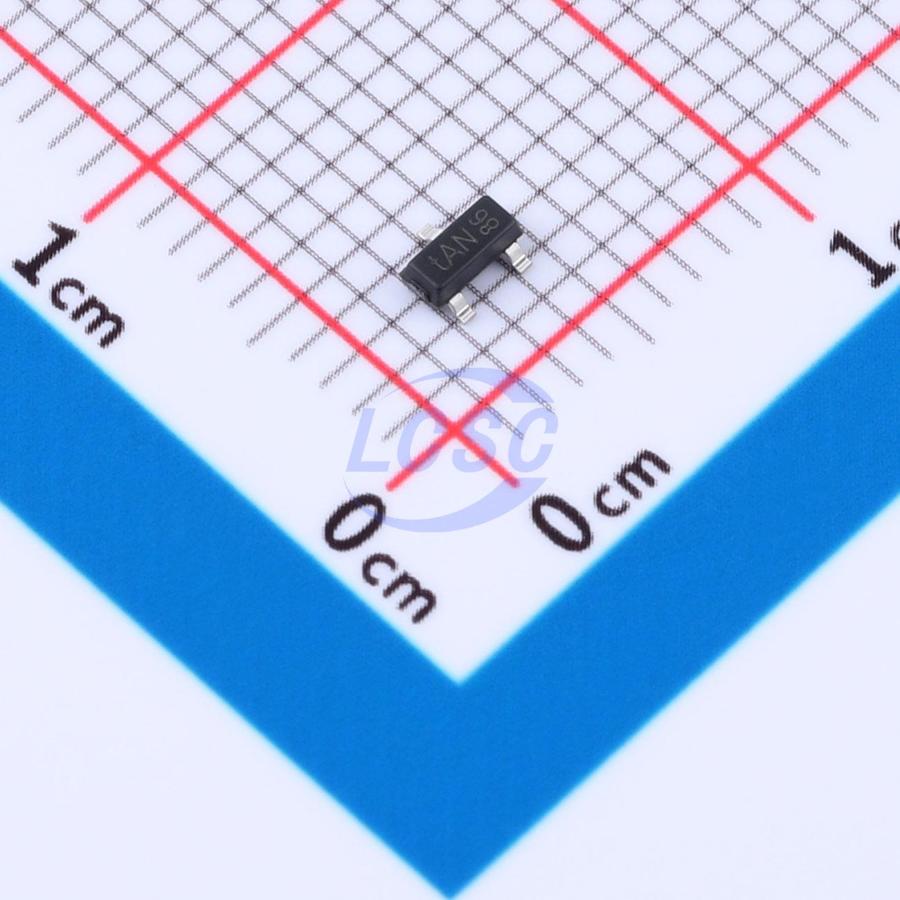

PESD2CANFD24V-TR-JSM
60V 4A@8/20us 230W@8/20us 30.5V Bidirectional 24V SOT-23 TVS Diodes RoHS
SOT-23ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- PESD2CANFD24V-TR-JSM
- Store part #
- C53113885
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
940 in stock
#C53113885
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.90 | ₹98.00 |
| 200+ | ₹3.86 | ₹772.00 |
| 600+ | ₹3.28 | ₹1,968.00 |
| 3,000+ | ₹2.95 | ₹8,850.00 |
| 9,000+ | ₹2.65 | ₹23,850.00 |
| 21,000+ | ₹2.49 | ₹52,290.00 |
20 × ₹4.90
₹98.00
excl. GST
₹115.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD2CANFD24V-TR-JSM
₹98.00 for 20 + GST
Specifications
- Clamping Voltage
- 60V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 230W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 30.5V
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.032 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PESD2CAN,215-JSM#C53113852JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 4,920 | ₹5.33 · 4,920 in stock | View |
 | PESD2CAN-JSM#C49363841JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 2,970 | ₹5.68 · 2,970 in stock | View |
 | PESD2CANFD24L-TR-JSM#C53113916JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 2,680 | ₹17.52 · 2,680 in stock | View |
 | PESD24VL2BT,215-JSM#C53113976JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 2,840 | ₹5.78 · 2,840 in stock | View |
