TECH PUBLICDatasheet (PDF)

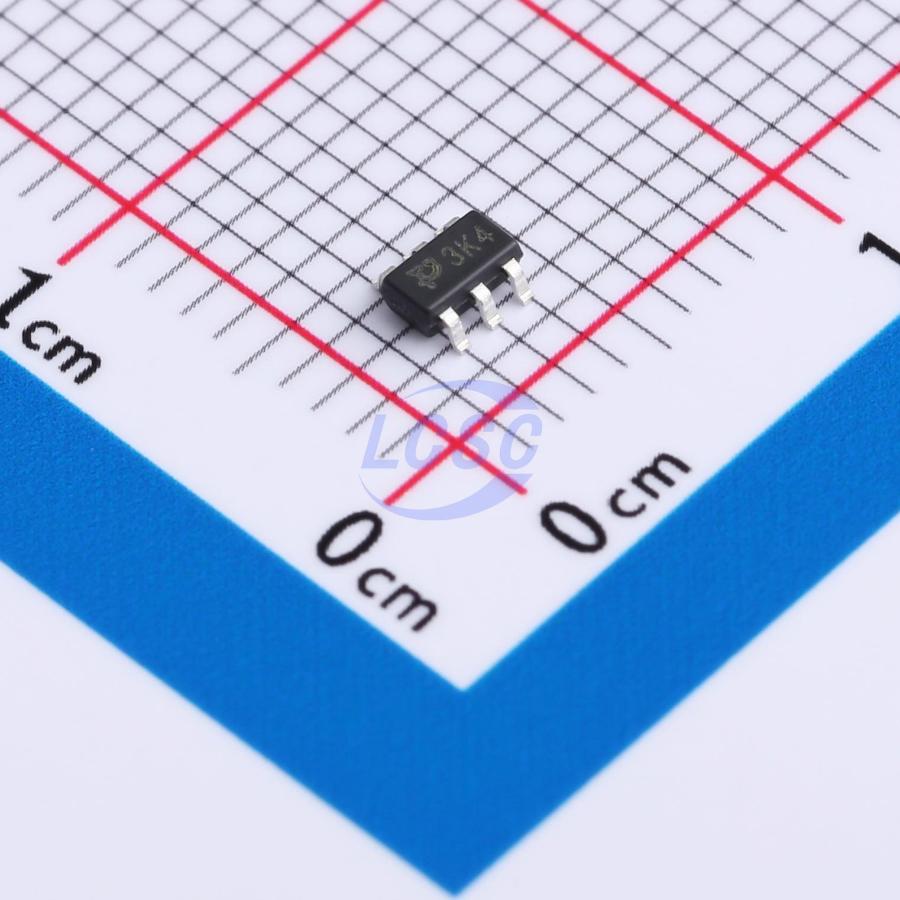

PESD3V3S4UD
15VC Clamp ESD DIODE SOT-23-6
SOT-23-6RoHSActive
ESD DIODE 3.3VWM 15VC SOT-23-6
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PESD3V3S4UD
- Store part #
- C5126000
- Package / case
- SOT-23-6
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,580 in stock
#C5126000
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.54 | ₹97.70 |
| 50+ | ₹15.88 | ₹794.00 |
| 150+ | ₹14.05 | ₹2,107.50 |
| 500+ | ₹12.69 | ₹6,345.00 |
| 3,000+ | ₹10.35 | ₹31,050.00 |
| 6,000+ | ₹9.80 | ₹58,800.00 |
5 × ₹19.54
₹97.70
excl. GST
₹115.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD3V3S4UD
₹97.70 for 5 + GST
Specifications
- Clamping Voltage
- 15V
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 5.6V
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
Applications
- Mobile phone handsets
- Personal Digital Assistants (PDA)
- Portable handheld equipment (Laptop, Palmtop computers)
- Computer port, keyboard (USB1.1)
Key features
- 350W peak pulse power(8/20μs)
- Protects one bi-directional or two uni-directional lines
- Ultra low leakage: nA level
- Operating voltage: 3.3V
- Low clamping voltage
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- IEC61000-4-5 (Lightning) 20A (8/20μs)
- RoHS Compliant
